Assembly Instructions
Elemental Tables

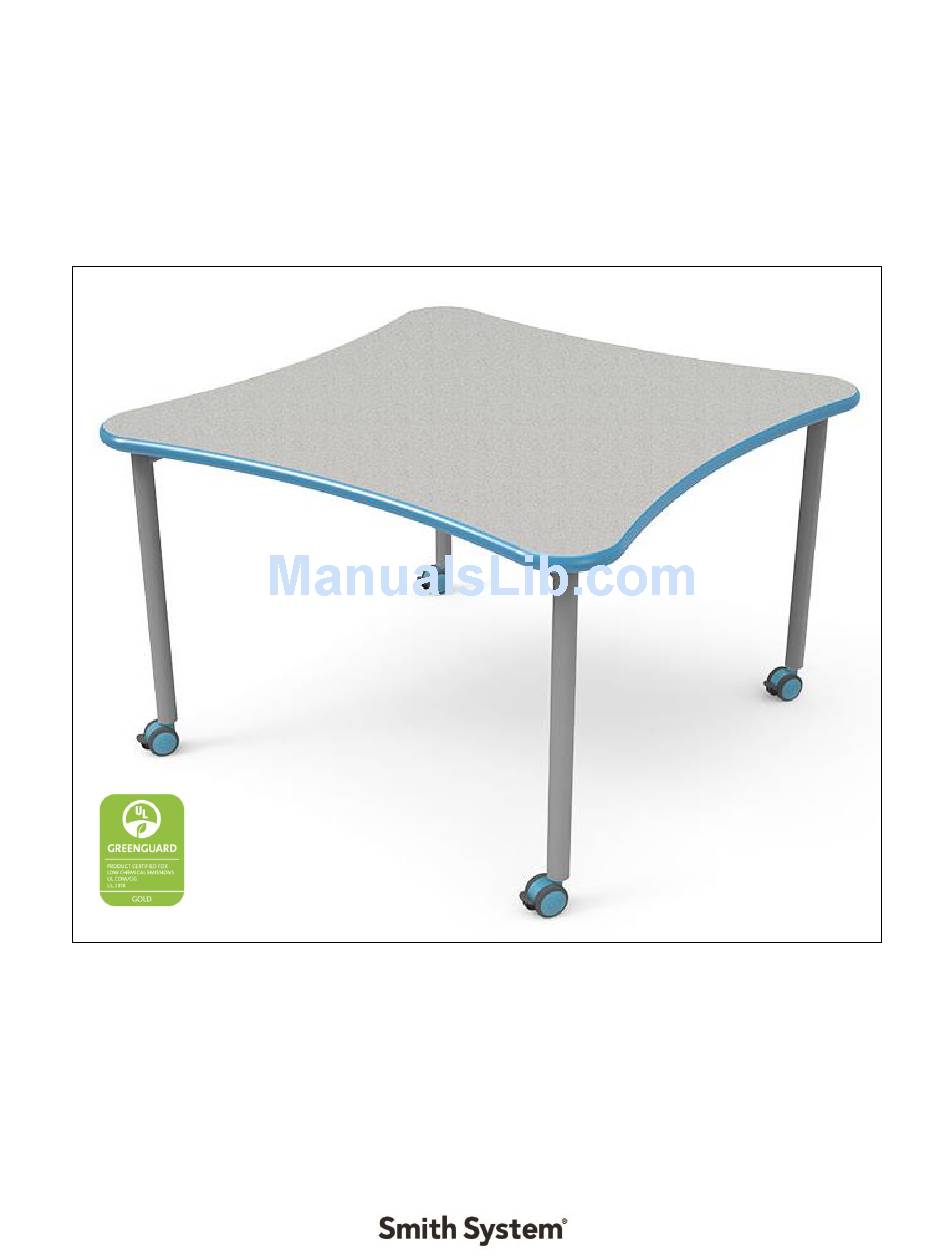

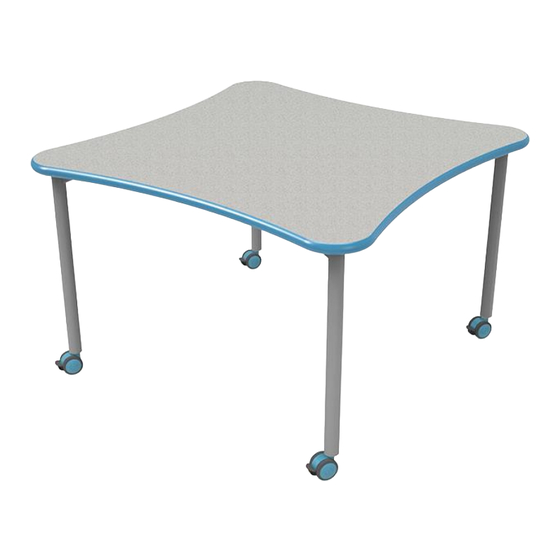

*Elemental Table available in numerous shapes and sizes. Picture does not necessarily represent parts received.
If you have damaged or missing components,
Please contact customer service at 1-800-328-1061
Form# 179911
08/2017
Advertisement
Related Manuals for SMITH SYSTEM elemental
Summary of Contents for SMITH SYSTEM elemental
- Page 1 Assembly Instructions Elemental Tables *Elemental Table available in numerous shapes and sizes. Picture does not necessarily represent parts received. If you have damaged or missing components, Please contact customer service at 1-800-328-1061 Form# 179911 08/2017...
- Page 2 Hardware and Components #10X3/4” WOOD SCREW P/N – 70054 QTY. 10 PER LEG ELEMENTAL TOP ELEMENTAL LEG SET QTY. 1 P/N – 77974, 77976, 77977 (SHAPE AND SIZE DEPEND ON ORDER) QTY. 4-6 (DEPENDS ON TOP SHAPE) Special Notes: Check that all components are accounted for and undamaged before assembling.
- Page 3 Assembly Instructions Step 1: Flip the top over and identify predrilled pattern. Step 2: Align table leg with pattern and install 10 screws. Repeat for each leg. Form# 179911 08/2017...
- Page 4 Step 3: For adjustable height legs only. Adjust the leg height as needed by loosening the set screw in the leg (use the provided hex key to loosen). Tighten the set screws. Hand tighten, do not use power tool, to tighten set screw to ensure screw is correctly located in the insert hole. DONE Form# 179911 08/2017...
