Icom IC-M410BB Instruction Manual page 67

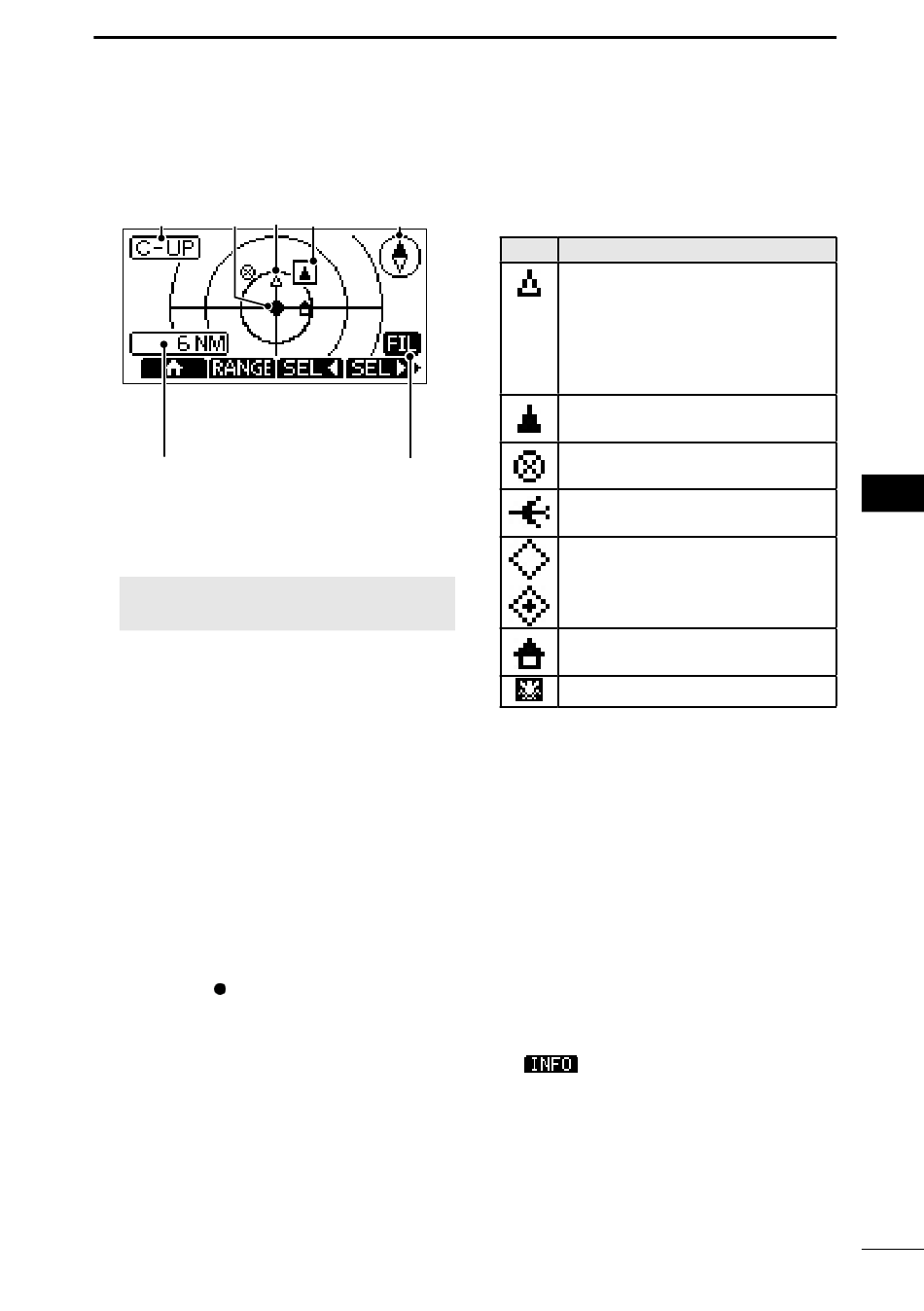

D Plotter screen
Displays the plotter display and selected
target's information.
1 2 3
7
1 DISPLAY TYPE
Displays the selected display type. You
can select the display type in "North up/
Course up" on the Menu screen. (p. 61)
[MENU] > Settings > AIS >
North/Course up
L When "N-UP" is displayed, the top of
the plotter screen represents North.
L When "C-UP" is displayed, the top
of the plotter screen represents the
direction your vessel's course over
ground.
2 YOUR VESSEL ICON
Displayed in the center of the screen.
L When "N-UP" is displayed, the vessel
icon automatically points in the direction
your vessel is heading, in 45 degree
steps.
L When "C-UP" is displayed, the vessel
icon constantly points to the top of the
plotter screen.
L When your vessel moves less than
2 knots, is displayed.
FELLECS-TECH | inbox@fellecs-tech.com | www.fellecs-tech.com
3 TARGET ICONS
4
5
6
4 TARGET BOX
5 COMPASS
6 DISPLAY FILTER INDICATOR
AIS FUNCTION
Targets whose AIS signal are received
are displayed with icons. The icon may
differ, depending on the target type or
its status.
Icon Description
AIS target: Vessel
AIS target: Search and Rescue
(SAR) vessel
L The tip of the target triangle
automatically points in the
direction it's heading.
AIS target: Vessel (Friend)
(Black triangle)
AIS target: AIS-SART, AIS-MOB,
and EPIRB-AIS
AIS target: Search and Rescue
(SAR) aircraft
AIS target: Aids to Navigation
(AtoN)
AIS target: Aids to Navigation
(AtoN) virtual
AIS target: Base station
MOB
L Icons for other than the SAR aircraft,
Base station and MOB start blinking
when the AIS target is closer than your
CPA and TCPA settings (Danger target).
L A vessel is regarded as a "Lost target,"
and a cross mark displays on the target
icon after a specified period of time has
passed since the vessel last transmitted
data (p. 66). The Lost target icon
disappears from the plotter display
6 minutes and 40 seconds after the
vessel was regarded as a "Lost target."
Ask your dealer for details.
Displays the selected target.
L When a target box is displayed, push
to display the detail screen of
the selected target.
Displays the bearing information.
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
