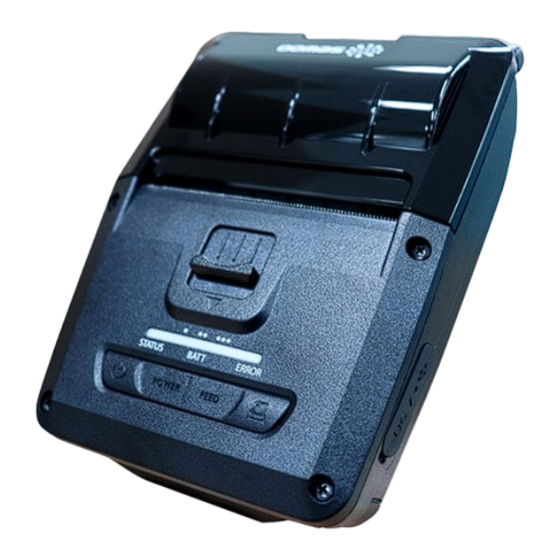

MOBILE PRINTER
MODEL : LK-P34L
Wi-Fi - LK-P34LW / Bluetooth - LK-P34LB
Aroot Co., Ltd.
28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea
TEL +82-31-8077-5000 / FAX +82-31-459-8880 / http://www.miniprinter.com
All specifications are subject to change without notice
P34L ENG Rev. 11/2023
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SEWOO LK-P34L
Summary of Contents for SEWOO LK-P34L
- Page 1 MOBILE PRINTER MODEL : LK-P34L Wi-Fi - LK-P34LW / Bluetooth - LK-P34LB Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea TEL +82-31-8077-5000 / FAX +82-31-459-8880 / http://www.miniprinter.com All specifications are subject to change without notice P34L ENG Rev. 11/2023...
- Page 2 Following information shall be included in the manual This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. Information to User; 1) This device may not cause harmful interference, and 2) T his device must accept any interference received, including interference that may cause undesired operation.
- Page 3 Safety Precautions For better safety and reliability, adhere to the following precautionary measures. WARNING Read and follow the instructions carefully before operation of the product. Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Indication Do not disassemble, Prohibition...
-
Page 4: Table Of Contents
Table of Contents Product Overview Maintenance 1. Unpacking 9. Cleaning the Printer 2. Product Overview 9-1. Print-Head Cleaning 3. Control Panel Usage 9-2. Platen Roller Cleaning 10. JAM Error Set Up Spectification 4 Paper Installation 11. Roll Media Specification 5. Battery 12. -
Page 5: Unpacking
1. Unpacking 2. Product overview Standard Front COVER OPEN Button - Button down: Opening the cover Printer Battery Charger USB Cable POWER Button DC POWER Paper FEED Button Quick Manual Roll Paper Belt Strap Cleaning Pen Optional Rear Strap Bracket Battery AC Cord Adaptor... -
Page 6: Control Panel Usage
3. Control panel usage 4. Paper Installation CAUTION Make sure to be careful of the HOT head Button Name function - This button is used to turn the printer on and off. - When the printer is off, press this button for Power approximately 3 seconds and the printer will power on. -
Page 7: Battery
5. Battery 5-1. Battery Installation 5-2. Battery Removal Please make sure you hear REMOVE the closing sound of the upper cover. Remove the battery as shown. HOOK 1 Align battery hook as shown in the picture. 2 Push the battery into the printer until it locks in place. NOTE As the battery is not charged at the time of your purchase, charge the battery prior to using the printer. -
Page 8: Battery Charging
5-3. Battery Charging 5-4. Charging Cradle Optional Lamp Lamp 1 Insert the battery into the battery charger as shown above. 1 Make sure the printer is turned off. 2 Connect the DC JACK to the electrical outlet. 2 After opening the DC JACK cover, connect the DC JACK to the printer. 3 Plug the power cord into the electrical outlet. -
Page 9: Belt Strap
6. Belt Strap 7. Self Test Prepare the belt strap. Put the strap into the strap bracket hole Turn off the power by pressing the While you are holding the FEED button, as shown. power button for approximately press the power button. 3 seconds. -
Page 10: Peripheral Connection
8. Peripheral Connection Self-Test Printout Sample This product can communicate with other devices via Bluetooth, Wi-Fi, or a communication cable. Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: - Firmware version, emulation, codepage, sensor settings, interface settings, etc. -
Page 11: Nfc Connection
8-3. NFC Connection 8-4. Interface Cable Connection The printer can be connected to devices equipped with NFC communication capabilities. COVER 1 Flip over the connector cover and connect USB cable to the printer connector. Use the NFC connection function supported by the device to connect to the printer. NOTE NOTE Only use cables included with the printer. -
Page 12: Cleaning The Printer
9. Cleaning the Printer 9-2. Platen Roller Cleaning If the interior of the printer is dusty, printing quality can be reduced. In this case, follow the instructions below to clean the printer. 1 Use a cleaning pen to clean the rollers. NOTE 2 Turn the platen roller with your finger to clean the entire surface. -
Page 13: Jam Error
10. JAM Error 11. Roll Media Specification CAUTION Make sure to be careful of the HOT head. When you face with a paper jam error, Please remove the paper. Core please press the button down to open the printer cover. Diameter (A) 12.5 mm Roll... -
Page 14: Black Mark
12. Black Mark 13. Printer Specification Printing Method Direct Thermal Printing Speed Max. 100 mm/s 203 DPI Resolution Font A(12×24), Font B(9×17), Asian Font(KOR,JPN,CHN-GB2312,CHN-Big5), Character Font0/1/2/4/5/6/7, Resident TTF, Downloadable TTF, FontA~H, FontGS, Residnt TTF(Font0), Font 1~8 - 1D : EAN-8, EAN-13, Code39, ITF, UPC-A, 10 ~ 80 ESC/POS UPC-E, Codabar, Code93, Code128... -
Page 15: Utilities
Storage -20 ~ 60℃ Operation 10 ~ 80% Android Utility It is a utility app that prints text, barcodes, images, Humidity Storage (Sewoo M_Utility) etc. through Bluetooth and Wi-Fi communication, 10 ~ 90% (ESC/POS) and able to printer settings. -
Page 16: S/W
Mac Driver in the Mac OS environment. Android Plugin This is a print service plug-in that allows you to print (Sewoo Print Service documents, images, and web pages without installing Plugin) (ESC/POS) additional apps. This is library for communication and data output Windows SDK with Mobile printer in Windows OS.
