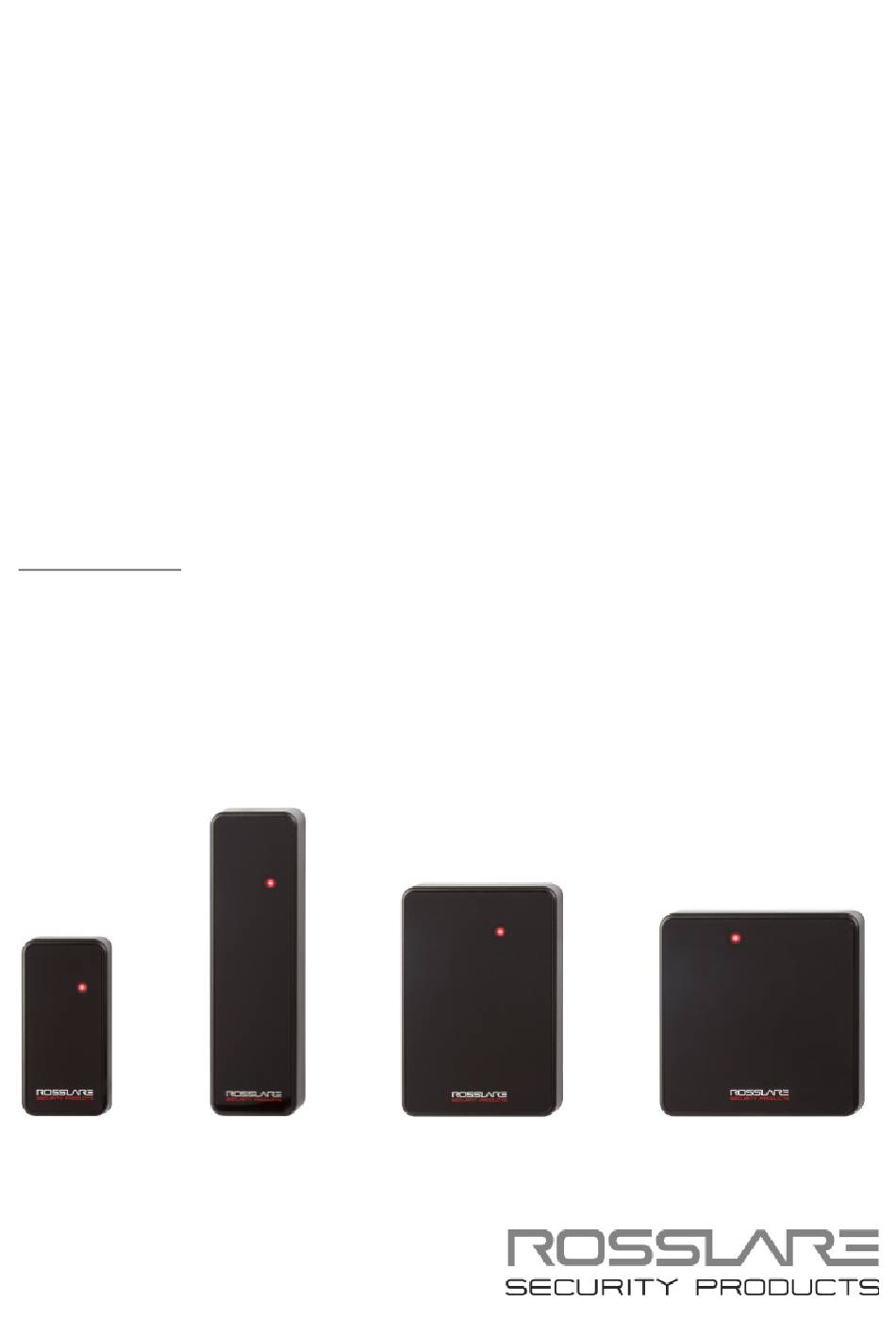

- Page 1 AY-x6255 Family CSN SELECT Smart Card Readers Installation and User Manual Models: AY-K6255 AY-L6255 AY-H6255 AY-M6255 AY-K6255 AY-L6255 AY-H6255 AY-M6255...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction ..............7 Box Content ................7 Technical Specifications ..........8 Mounting ..............10 Wiring Instructions ........... 12 Reader Operation ............14 OSDP Operation ............15 Declaration of Conformity........17 Limited Warranty ............18 AY-x6255 Installation and User Manual... -
Page 4: List Of Figures
List of Figures List of Figures Figure 1: Removing the Top Cover ..............10 Figure 2: DIP Switch Compartment ..............15 Figure 3: DIP Switch Settings ................16 AY-x6255 Installation and User Manual... -
Page 5: List Of Tables
List of Tables List of Tables Table 1: AY-x6255 Wiring ................12 AY-x6255 Installation and User Manual... - Page 6 ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document.
-
Page 7: Introduction
Box Content Before beginning, verify that all of the following is in the box. If anything is missing, please report the discrepancy to your nearest Rosslare office. One AY-x6255 unit Installation kit – Includes two wall plugs, two mounting screws, ... -
Page 8: Technical Specifications
Weather-resistant, meets IP65, epoxy-potted, suitable for indoor and outdoor use (not in direct sunlight) * Measured using a Rosslare MIFARE card cards. Range also depends on electrical environment and proximity to metal. ** Standard configuration. Custom configurations are available. AY-x6255 Installation and User Manual... -
Page 9: Physical Characteristics
AY-K6255: 80.5 x 40.5 x 14.7 mm (3.2 x 1.6 x 0.6 in.) (H x W x D) AY-L6255: 144.9 x 42.9 x 22.1 mm (5.7 x 1.7 x 0.9 in.) AY-H6255: 110.7 x 75.0 x 17.1 mm (4.4 x 3.0 x 0.7 in.) AY-M6255: 89.5 x 88.9 x 16.8 mm... -
Page 10: Mounting
Mounting Mounting Before mounting, you should determine the best location for the reader. To mount the units: 1. Peel off the back of the self-adhesive mounting label template and place it at the required mounting location. 2. Using the template as a guide, drill two holes (sizes indicated on the template) used for mounting the back plate onto the surface. - Page 11 Mounting 7. Align the two holes of the reader with those drilled in the wall and firmly attach the reader to the wall with two screws, whose size is indicated on the template. 8. Relocate the front cover onto the reader. The reader can also be mounted using strong epoxy glue.
-
Page 12: Wiring Instructions
Wiring Instructions Wiring Instructions The units are supplied with a 10-conductor 18” (46-cm) pigtail or with 10 terminal blocks. To connect a pigtail reader to the controller: 1. Prepare the reader cable by cutting its jacket back 3.2 cm (1¼”) and strip the insulation from the wires 1.3 cm (½"). - Page 13 Wiring Instructions • The individual wires from the reader are color coded according the Wiegand standard. • When using a separate power supply for the reader, this supply and that of the controller must have a common ground. • The reader’s cable shield wire should be preferably attached to an earth ground, or a signal ground connection at the panel, or power supply end of the cable.
-
Page 14: Reader Operation
Reader Operation Reader Operation Once the reader is wired to a power supply and to the controller, you should test the reader. To test the reader: 1. Power up the reader. To indicate that the reader is working properly, the reader flashes red, then green, and then orange, each for 1 second and a beep is heard for each color. -
Page 15: Osdp Operation
OSDP Operation OSDP Operation CSN SELECT readers that support OSDP operation are compatible with most OSDP commands. The reader address is set using DIP switches on the back of the reader. Release the screw on the back of the reader to remove the door to access the DIP switches (Figure 2). - Page 16 OSDP Operation Figure 3 shows the DIP switch settings, which are also described below. Figure 3: DIP Switch Settings DIP Switch 1 This switch is used to select the reader output (Wiegand or OSDP): Off = Wiegand On = OSDP DIP Switch 2 This switch is reserved for future use.
-
Page 17: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. -
Page 18: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AY-x6255 Installation and User Manual... -
Page 19: United States And Canada
Tel: +86-755-8610 6842 Fax: +86-755-8610 6101 Rosslare Security Products, Inc. support.cn@rosslaresecurity.com Southlake, TX, USA India Toll Free: +1-866-632-1101 Local: +1-817-305-0006 Rosslare Electronics India Pvt Ltd. Fax: +1-817-305-0069 Tel/Fax: +91-20-40147830 support.na@rosslaresecurity.com Mobile: +91-9975768824 Europe sales.in@rosslaresecurity.com Rosslare Israel Ltd. Rosh HaAyin, Israel...
