PUMP INSTALLATION
OR 46x2.5 EPDM70
STEP 1
M4x35 ISO 7984
STEP 2
If you have already filled your loop with coolant, you will need to
drain it before installing the EK-VTX Pump.

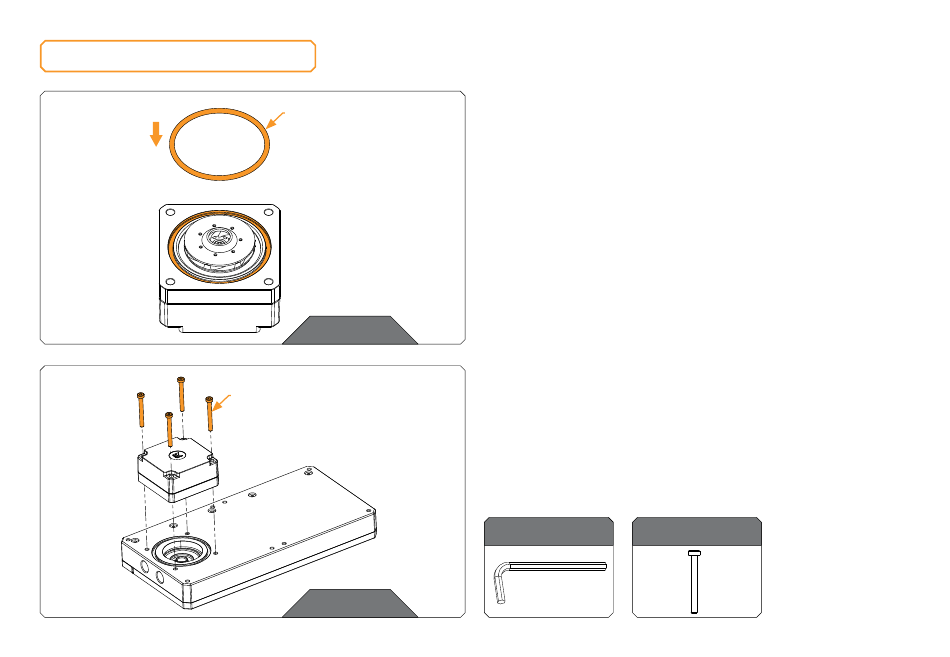

STEP 1
Insert the O-Ring into a Pump groove.
STEP 2
Install the EK-VTX Pump using four (4) M4x35 ISO 7984 screws.
Position the pump onto the reservoir. Make sure all the holes are
aligned. Tighten the screws evenly.
Before attaching the EK-VTX Pump, make sure the O-Ring is
placed correctly! Do not use excessive force!
For this step you will need:
Allen Key 2.5 mm
M4x35 ISO 7984 (4 pcs)
