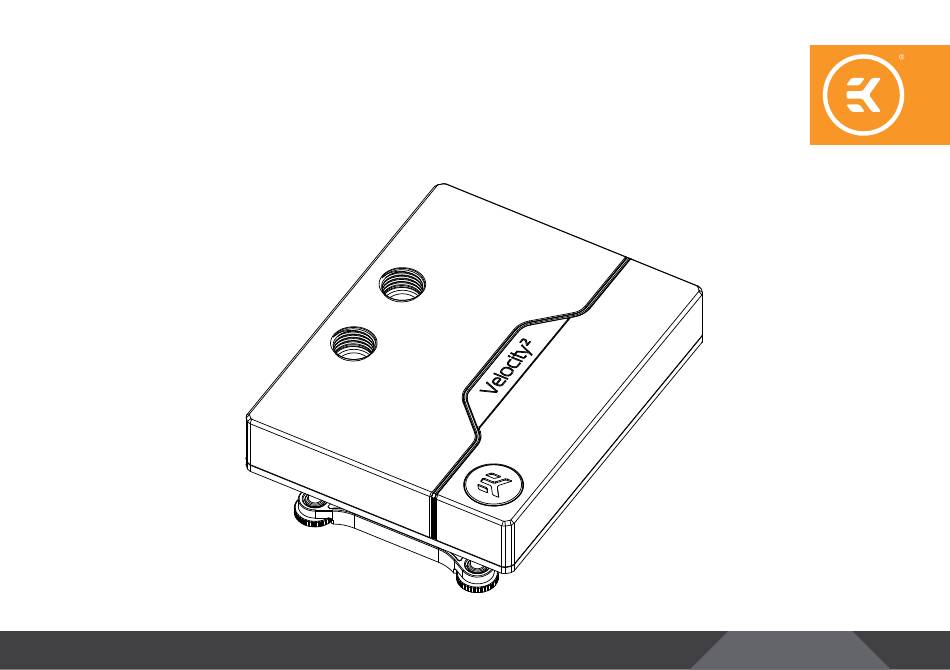

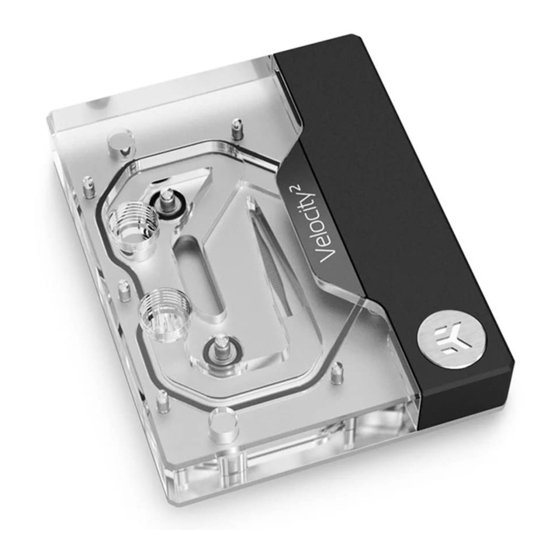

- Page 1 EK-Quantum Velocity² D-RGB AM4 USER GUIDE...
- Page 2 The following instructions are subject to change without notice. Please visit our website at www.ekwb.com for updates. Before installation of this product, please read important notice, disclosure, and warranty conditions that are printed on the back of the box.
-
Page 3: Table Of Contents
TABLE OF CONTENTS GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS NICKEL PLEXI NICKEL ACETAL COPPER ACETAL FULL NICKEL SATIN TITANIUM PREPARING THE MOTHERBOARD INSTALLING THE WATER BLOCK CONNECTING THE D-RGB LED STRIP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: General Information On Water Block Compatibility
GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY This CPU liquid cooling unit is pre-assembled for use with modern AMD desktop socket type motherboards. By default (out of the box) this water block supports the following CPU sockets: - AMD® socket AMx and FMx BOX CONTENTS Mounting Mechanism –... -
Page 5: Water Block Dimensions
WATER BLOCK DIMENSIONS CPU WB 89 mm 34 mm 12.5 mm 20.5 mm Backplate 54 mm 9 mm 6 mm - 5 -... -
Page 6: Technical Specifications And Water Block Parts
TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS NICKEL PLEXI Technical Specification: Dimensions (L x H x W): 98.5 x 113.5 x 34 mm D-RGB cable length: 500 mm D-RGB LED count: 16 D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Position EAN Description Quantity 103938... -
Page 7: Nickel Acetal
NICKEL ACETAL Position EAN Description Quantity 103939 Top plate (Acetal) 104772 O-Ring 1/3 104774 O-Ring 3/3 104736 Metal plate Assembly 8252 M3x10 DIN7991 Screw 104773 O-Ring 2/3 103933 Jet plate 103912 Coldplate (Nickel) 104686 M4x14 DIN7991 Screw 104734 AM4 Backplate 100663 EK-Badge 103937... -
Page 8: Copper Acetal
COPPER ACETAL Position EAN Description Quantity 103939 Top plate (Acetal) 104772 O-Ring 1/3 104774 O-Ring 3/3 104736 Metal plate Assembly 8252 M3x10 DIN7991 Screw 104773 O-Ring 2/3 103933 Jet plate 103911 Coldplate 8207 M4x14 DIN7991 Screw 104734 AM4 Backplate 100663 EK-Badge 103937 Standout (Acetal) -
Page 9: Full Nickel
FULL NICKEL Position EAN Description Quantity 103941 Top plate (Brass) 104772 O-Ring 1/3 104774 O-Ring 3/3 104736 Metal plate Assembly 8252 M3x10 DIN7991 Screw 104773 O-Ring 2/3 103933 Jet plate 103912 Coldplate (Nickel) 104686 M4x14 DIN7991 Screw 104734 AM4 Backplate 100663 EK-Badge 103937... -
Page 10: Satin Titanium
SATIN TITANIUM Position EAN Description Quantity 103407 Top plate (Satin Ti.) 104772 O-Ring 1/3 104774 O-Ring 3/3 104736 Metal plate Assembly 8252 M3x10 DIN7991 Screw 104773 O-Ring 2/3 103933 Jet plate 103912 Coldplate (Nickel) 104686 M4x14 DIN7991 Screw 104734 AM4 Backplate 100663 EK-Badge 103937... -
Page 11: Preparing The Motherboard
PREPARING THE MOTHERBOARD STEP 1 If already installed, please remove the motherboard from your HOLD-DOWN UNC 6-32 AMD® FACTORY computer and place it on an even surface. CLAMPS SCREWS BACKPLATE STEP 2 Using Philips-head screwdriver remove the four UNC 6-32 screws securing the original plastic hold-down clamps around the socket as shown on the illustration. -
Page 12: Installing The Water Block
STEP 4 Applying thermal compound: Once clean, apply a line of Thermal Compound on one edge of the IHS and use a credit card or similar to spread it evenly. The layer of Thermal Compound must be thin and even in thickness over the entire surface of the IHS. - Page 13 STEP 2 Before placing the water block, it is mandatory to remove the protective foil from the backside. STEP 2 STEP 3 Position the CPU Water Block onto the Motherboard. Make sure to align the holes (as shown in the picture). Before placing the water block, it is mandatory to remove the protective foil from the backside.
- Page 14 MAX TORQUE: EK recommends using the EK-Loop Torque Screwdriver - 0.6Nm : 0.6 Nm https://www.ekwb.com/shop/ek-loop-torque-screwdriver-0-6nm Make sure to orientate the backplate as illustrated. Incorrect installation of the backplate may result in damage to the motherboard.
-
Page 15: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP STEP 1 Plug the 3-pin connector from the water block’s D-RGB LED light to the DRGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, empty, Ground. Please ensure that the arrow indicated on the connector is D-RGB HEADER plugged into the +5V line as indicated on your motherboard. -
Page 16: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
