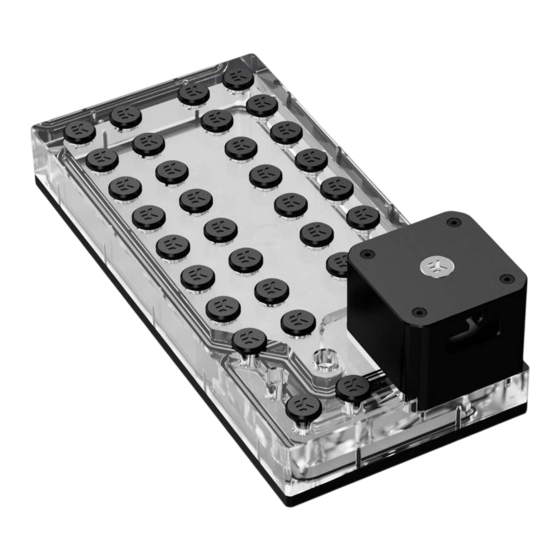

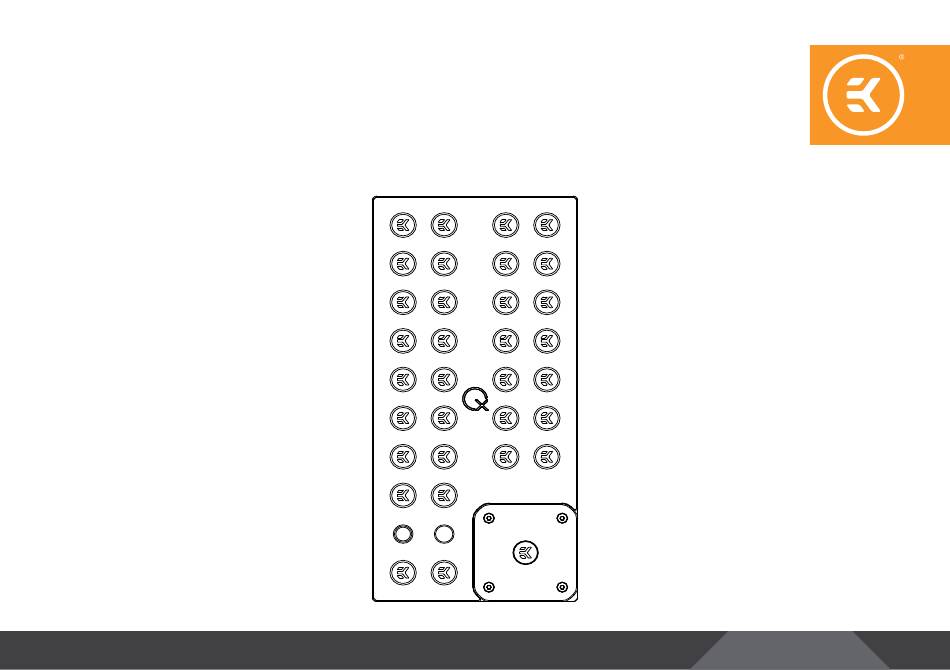

- Page 1 EK-QuantumX Loophole Distroplate D5 PWM DISTRIBUTION PLATE USER GUIDE...
- Page 2 O-ring gaskets. The use of corrosion-inhibiting coolants is always recommended for any liquid cooling system. EKWB recommends any of the EKCryofuel for worry-free usage. The warranty period is 24 months.
-
Page 3: Table Of Contents
TABLE OF CONTENT BOX CONTENTS DISTRIBUTION PLATE DIMENSIONS TECHNICAL SPECIFICATIONS AND PRODUCT PARTS PREPARING THE DISTRIBUTION PLATE INSTALLING THE FITTINGS AND TUBING EXAMPLE OF A COOLING ROUTING ATTACHING THE DISTRIBUTION PLATE CONNECTING THE PUMP TESTING THE LOOP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS M4 x 10 DIN7984 Screw (8 pcs) Metal washer (8 pcs) Standoff Ø7.8/4 x 2.0 (8 pcs) Allen Key 2.5 mm (1 pc) EK-QuantumX Loophole Distroplate D5 PWM EK-Loop Multi Allen Key (1 pc) Torx Key (1 pc) - 4 -... -
Page 5: Distribution Plate Dimensions
DISTRIBUTION PLATE DIMENSIONS 140 mm 40.5 mm 21 mm 28 mm 42 mm 28 mm 21 mm 46 mm 71 mm 87 mm - 5 -... -
Page 6: Technical Specifications And Product Parts
TECHNICAL SPECIFICATIONS AND PRODUCT PARTS Technical Specification: EK-QuantumX Loophole Distroplate D5 PWM - Black – Dimensions with the attached pump (W x D x H): 140 x 87 x 294 mm – Reservoir volume: ~562 ml – G1/4” ports: 34 –... - Page 7 Technical Specification: EK-QuantumX Loophole Distroplate D5 PWM - Silver – Dimensions with the attached pump (W x D x H): 140 x 87 x 294 mm – Reservoir volume: ~562 ml – G1/4” ports: 34 – Plugs: 32 pieces with covers –...
-
Page 8: Preparing The Distribution Plate
When tightening the fittings and screws, make sure not to apply too much force (Max 0.6Nm). After the installation is complete, the distribution plate must be checked for any potential leaks. Follow the EK-Loop Leak Tester instructions for correct use: https://www.ekwb.com/shop/EK-IM/EK-IM-3831109848388.pdf STEP 1 - 8 -... -
Page 9: Example Of A Cooling Routing
EXAMPLE OF A COOLING ROUTING - 9 -... -
Page 10: Attaching The Distribution Plate
ATTACHING THE DISTRIBUTION PLATE STEP 1 Find a suitable space in the chassis (140 mm fan patterns) and carefully position the distribution plate. Make sure to align the mounting holes with the holes in the chassis. STEP 1 STEP 2 Use the mounting screws and washers to screw in the distribution plate. -
Page 11: Connecting The Pump
CONNECTING THE PUMP The EK-D5 PWM pump has two connectors. 1. SATA Connector: It must be connected directly to your PSU at all times as it is used to power the pump. 2. 4-pin PWM fan: It can be connected to your motherboard’s CPU_ Fan or designated water pump header. -
Page 12: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND PRODUCT PARTS” where you can find the EAN number of each part you might need.
