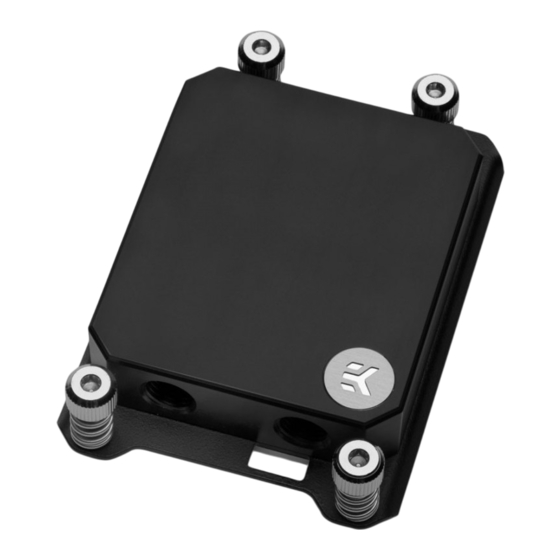

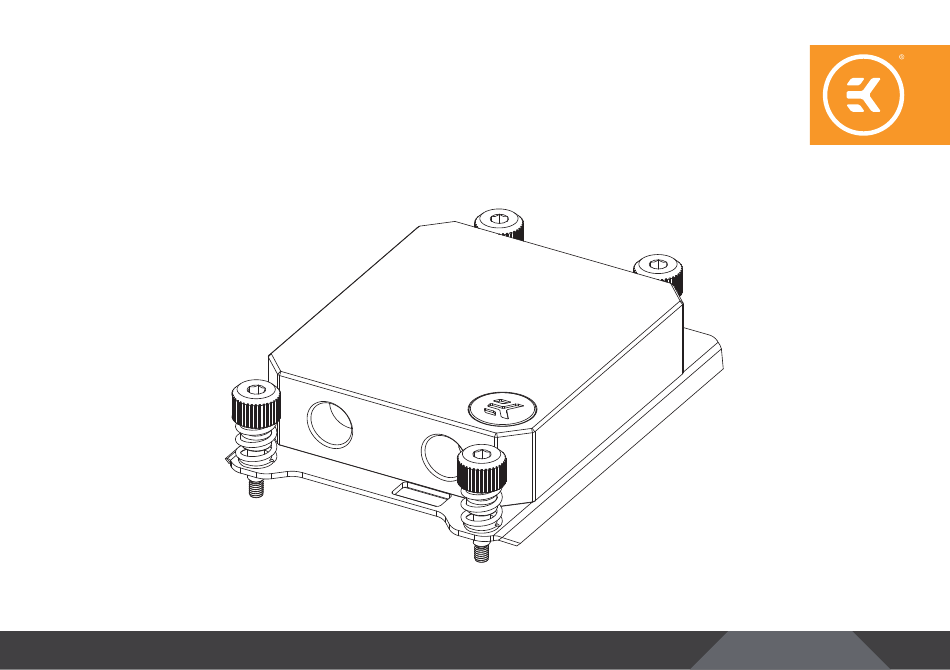

- Page 1 EK-Pro CPU WB sTR Rack USER GUIDE...
- Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS INSTALLING THE WATER BLOCK FITTINGS AND TUBING TESTING THE LOOP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS EK-Pro CPU WB sTR Rack Thermal grease (1 pc) WATER BLOCK DIMENSIONS 85.5 mm 77 mm 55.00 mm 22.00 mm - 4 -... -
Page 5: Technical Specifications And Water Block Parts
TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS Technical Specification: - CPU socket compatibility: • AMD Socket sTRX4 • AMD Socket TR4 (Socket SP3r2) • AMD Socket SP3 - Water block dimensions (L x H x W): 116.8 x 85.5 x 31 mm Position Description Quantity... -
Page 6: Installing The Water Block
INSTALLING THE WATER BLOCK STEP 1 If already installed, please remove the motherboard from your computer and place it on an even surface Non-abrasive cloth STEP 2 Cleaning the CPU: Wipe the IHS clean using a non-abrasive cloth or Q-tip as shown in the illustration. STEP 2 STEP 3 Applying thermal compound: Once clean, apply a line of Thermal... -
Page 7: Fittings And Tubing
STEP 4 Align the water block properly on the motherboard, The screws are MAX TORQUE: not positioned in a square pattern. 0.6 Nm ALLEN KEY 2.5 mm MOUNTING SCREW Before proceeding with the installation, it is mandatory to remove the protective foil from the backside of the COILED SPRING water block. -
Page 8: Testing The Loop
TESTING THE LOOP To ensure the installation of EK components was successful, we recommend you perform a 24-hour leak test. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components. -
Page 9: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
