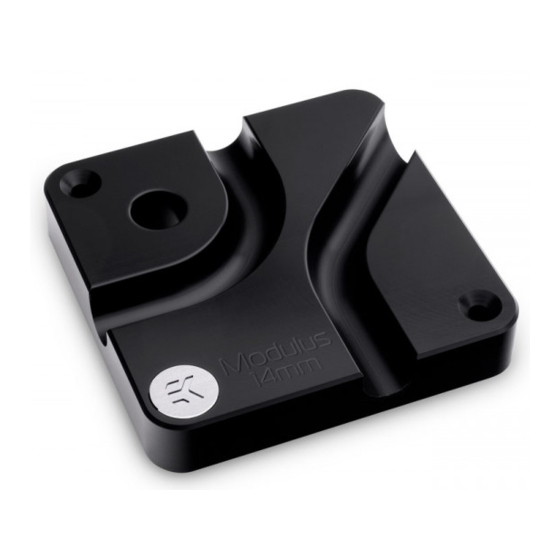

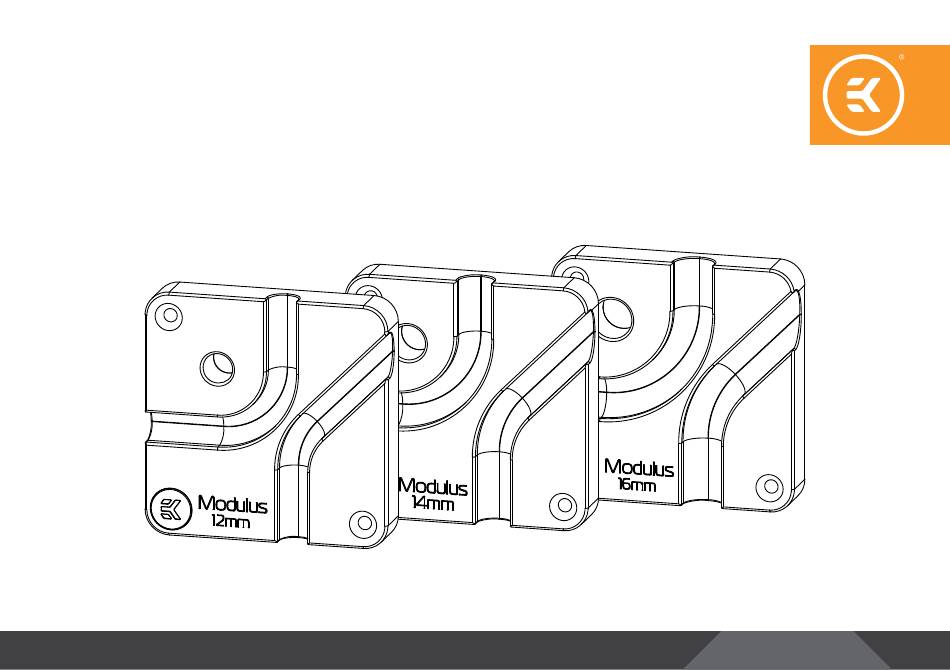

- Page 1 EK-Loop Modulus Hard Tube Bending Tool – 12/14/16 USER GUIDE...
- Page 2 This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation.
- Page 3 TABLE OF CONTENT BENDING TUBES REQUIRED TOOLS SUPPORT AND SERVICE SOCIAL MEDIA - 3 -...
- Page 4 BENDING TUBES STEP 1: First you need to put silicon insert inside your ACRYLIC/PETG tube. You can use soap and a bit of water on silicon rod for easier installation. STEP 1 STEP 2: Use industrial fan to heat up the ACRYLIC/PETG tube. You need to Industrial Fan rotate the tube while heating.
- Page 5 STEP 3 Bend the tube around EK-Loop Modulus hard tube Bending tool. ACRYLIC/PETG Tube When you force the tube into its final position leave hold it for about 15 seconds so that it hardens a bit. It is recommended to pull the silicone rod out of the tubing when it’s still warm.
- Page 6 STEP 5 When finished you can use the tube reamer or sandpaper to chamfer the edges for easier installation into the fittings. STEP 2 REQUIRED TOOLS Industrial Fan - 6 -...
- Page 7 SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
