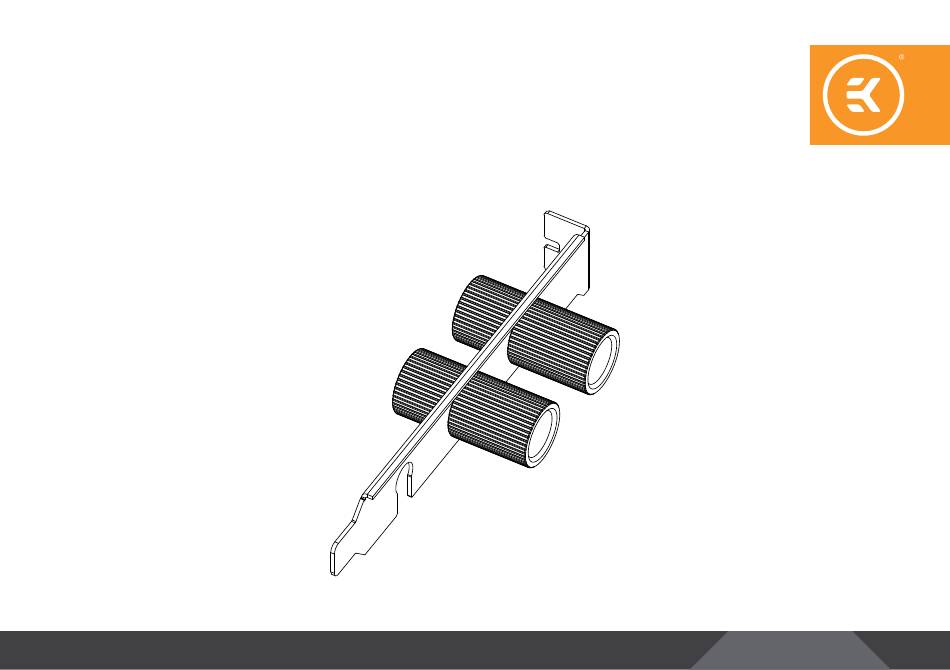

- Page 1 EK-Loop PCI Bracket Pass-Through USER GUIDE...
- Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
- Page 3 TABLE OF CONTENTS TECHNICAL SPECIFICATIONS AND MAIN PARTS INSTALLING THE EK-Loop PCI Bracket Pass-Through SUPPORT AND SERVICE SOCIAL MEDIA - 3 -...
- Page 4 106930 Rubber 5.5/8*1 NBR 5192 OR 7 x 1.5 mm INSTALLING THE EK-Loop PCI Bracket Pass-Through STEP 1 First, remove one (1) GPU expansion slot from the PC Chassis. Save the removed screw for later steps. For this step, you will need:...
- Page 5 STEP 2 Replace the original GPU Expansion slot with the EK-Loop PCI Bracket Pass-Through. Secure the bracket with the saved PC Chassis screw. Make sure to rotate the bracket as shown in the picture. * The cable management hole, featuring a rubber gasket, prevents friction damage to cables passing through the metal gap on the bracket.
-
Page 6: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND MAIN PARTS” where you can find the EAN number of each part you might need.
