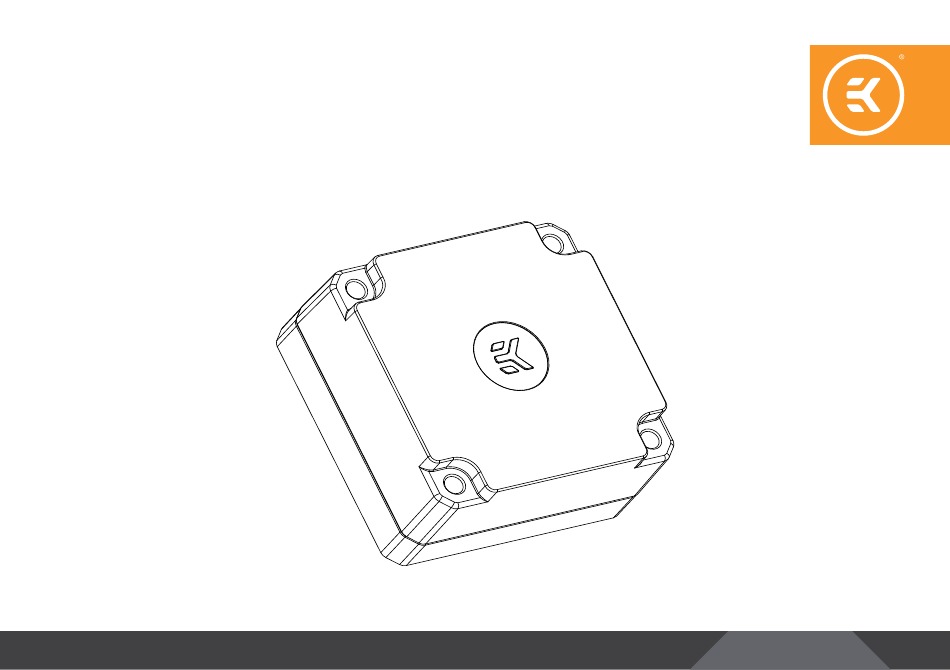

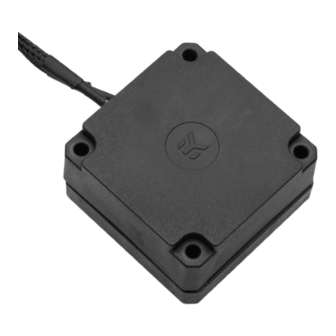

- Page 1 EK-Loop VTX PWM Motor USER GUIDE...
- Page 2 The following instructions are subject to change without notice. Please visit our website at www.ekwb.com for updates. Before you start using this product please follow these basic guidelines: Carefully read the manual before beginning with the installation process.
-
Page 3: Table Of Contents
TABLE OF CONTENT BOX CONTENTS DIMENSIONS TECHNICAL SPECIFICATIONS COMPATIBILITY PUMP INSTALLATION CONNECTING THE PUMP TESTING THE LOOP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS EK-Loop VTX PWM Motor (1 pc) M4x35 ISO 7984 Screw (4 pcs) OR 46x2.5 EPDM70 (1 pc) DIMENSIONS 61.5 mm 32 mm 50 mm - 4 -... -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS Maximum Fan and Radiator Compatibility: - Motor: Electronically commuted spherical motor - Rated voltage: 12V DC - Power consumption: 18W - Maximum pressure head: 5.3m - Maximum flow: 1100L/h - Maximum system temperature: 60°C - Materials: NORYL GFN2, EPDM O-rings, Copper Coils, Stainless Steel Shaft, Graphite Bushing - Power connector: 4-Pin Molex and 4-Pin PWM FAN connector Operational regime:... -
Page 6: Pump Installation
PUMP INSTALLATION If you have already filled your loop with coolant, you will need to drain it before installing the EK-VTX Pump. OR 46x2.5 EPDM70 STEP 1 Insert the O-Ring into a Pump groove. STEP 1 STEP 2 Install the EK-VTX Pump using four (4) M4x35 ISO 7984 screws. M4x35 ISO 7984 Position the pump onto the reservoir. -
Page 7: Connecting The Pump
CONNECTING THE PUMP The EK-VTX Pump has two connectors: 1. 4-Pin Molex – must be connected directly to your PSU at all times as it is used to power the pump; 2. 4-pin PWM Fan – can be connected to your motherboard CPU Fan or designated water pump header. -
Page 8: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
