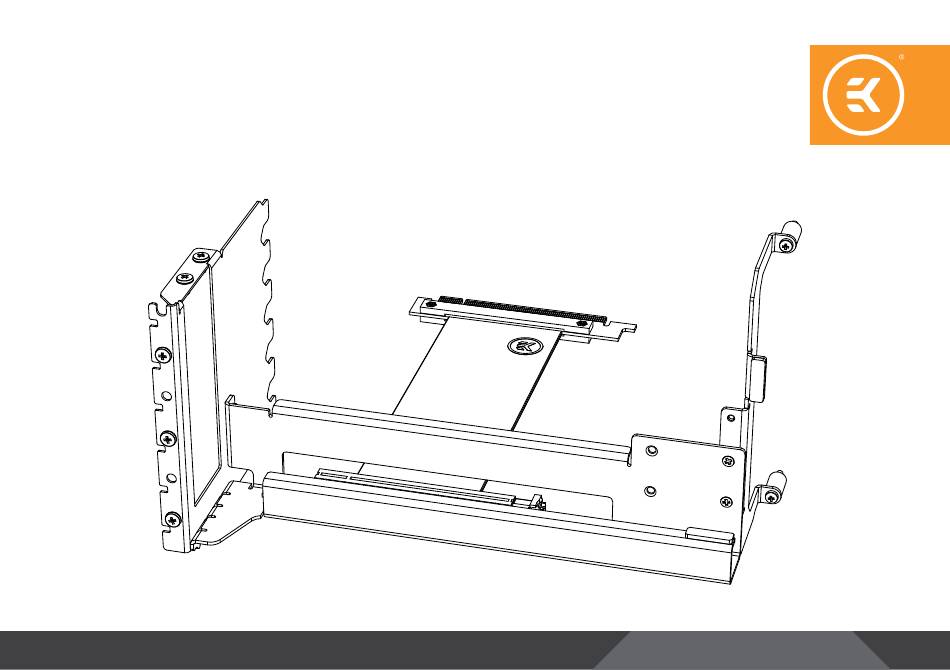

- Page 1 EK-Loop Vertical GPU Holder INSTALLATION MANUAL 1st Revision – September 2, 2020...
- Page 2 EK assumes no liability whatsoever, expressed or implied, for the use of this product, nor its installation. The following instructions are subject to change without notice. Please visit our website at www.ekwb.com for updates. Carefully read the manual before beginning with the installation process! SAFETY PRECAUTIONS 1.
-
Page 3: Table Of Contents
TABLE OF CONTENTS WHAT IS ENCLOSED REQUIRED TOOLS DIMENSIONS OF THE VERTICAL GPU HOLDER INSTALLATION GUIDE SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: What Is Enclosed
WHAT IS ENCLOSED Acetal Distancer (2x) PCIE Riser Cable (1x) UNC 6-32x1/4” (5x) Bracket 1 (1x) Adhesive Foam - 5 mm (2x) Adhesive Foam - 2 mm (2x) Bracket 3 (1x) M3x4 (3x) M3x20 (2x) UNC 6-32x3/4” (2x) M3x5 Countersunk Screw (6x) Bracket 2 (1x) - 4 -... -
Page 5: Required Tools
Acetal Distancer (2x) M3x20 (2x) UNC 6-32x3/4” (2x) UNC 6-32x1/4” (5x) M3x4 Pan Head Screw (3x) M3x5 Countersunk Screw (6x) Protective Foam 2mm (2x) Protective Foam 5mm (2x) REQUIRED TOOLS Phillips Head Screwdriver - 5 -... -
Page 6: Dimensions Of The Vertical Gpu Holder
DIMENSIONS OF THE VERTICAL GPU HOLDER - 6 -... -
Page 7: Installation Guide
INSTALLATION GUIDE STEP 1 Assemble the three steel brackets with the six M3x5 countersunk screws. Depending on how you want to position the GPU holder Bracket 3 inside your PC, you may choose between two options. Bracket 1 M3x5 Countersunk Screw (2x) Bracket 2 M3x5 Countersunk Screw (4x) - Page 8 STEP 2 Stick two protective adhesive foams, as indicated in the diagram. The »2mm protective foam« should be enough for the protection of your GPU during installation. In some cases, you may use the »5mm protective foam« (also enclosed in the package) for the extra support Protective Foam of your GPU.
- Page 9 STEP 4 Before you mount the GPU, make sure the PCIE latch is not closed – it must be pushed to the right side. PCIE Latch Carefully mount the GPU onto the GPU Holder, using two UNC 6-32x1/4 screws. Pay special attention not to damage the GPU. 6-32x1/4 Secure the GPU by moving the PCIE latch that is positioned underneath it, to the left.
- Page 10 STEP 5 Before you start to assemble the Holder with the GPU to the motherboard, make sure that your computer is powered off and the PSU power cable unplugged. It is also recommended that you put your computer with the motherboard in a horizontal position before you continue with the installation process.
- Page 11 STEP 7 During the following Steps of the installation process, be especially careful not to hit or scratch your motherboard or any other PC component while you’re mounting the GPU Holder to the motherboard. Pay special attention that the »Bracket 3« of the GPU Holder (the right side) doesn’t hit the motherboard.
- Page 12 STEP 8 Use three or more screws to attach the GPU Holder to the left side of the PC case. Use the PCIE bracket screws that you’ve saved earlier or UNC 6-32x1/4 PCIE Bracket screws from the package. Screws (3x) UNC 6-32x1/4”...
-
Page 13: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
