- Page 1 User manual MANO EDU XL Please read this user manual carefully prior to installation, use and maintenance for your own safety and in order to avoid damages on your system.
-
Page 3: Table Of Contents
Save freeze image....................19 Save multiple pages as a PDF ................19 Autofocus........................20 Toggle image view .....................20 MANO EDU XL without a second display ..............20 Switching the viewing mode ................20 Split screen control .....................20 Toggle between distance view and mirror view ..........20... - Page 4 MANO EDU XL with a second display ..............21 Switching the viewing mode ................21 Different viewing modes (only with identical camera images) ......22 Using the camera while viewing documents ............22 Read aloud function (text to speech) ................22 Reading a full page (either DIN A4 or DIN A3) ..........22 TTS of the magnified image ................22...
-
Page 5: General Information
Please read them carefully prior to the operation of the device! Notes on the electromagnetic compatibility (EMC) MANO EDU XL is suited for the use in all set-ups including the domicile that are connected directly to a public power supply for buildings with residential purposes. - Page 6 Always ask your doctor, pharmacist or a person you trust about dosing of medications! Power supply Only use the original power supply which is included in the delivery by Reinecker Vision GmbH. Caution: The use of any other power supply besides the original, might lead to an increased electro-magnetic emission and to product damage.
-
Page 7: I.i General Information - Valid For Manedxl1
Combination with other medical devices If the operator/user wants to operate this device in conjunction with other life sustaining medical devices, please get in touch with Reinecker Vision GmbH or with your local dealer, prior to operation. Safety advice The device has to be set up and operated in closed and dry rooms only. - Page 8 Reinstatement, installation and maintenance This device may be technically repaired and reconditioned by Reinecker Vision GmbH only or by an authorized technician. The device may only be used again after a safety check, thorough cleaning and disinfection. Environmentally friendly disposal (Directive 2012/19/EU)
-
Page 9: I.ii General Information - Valid For Manedxl1Lv
The order code of your device can be found on the type label on the device or on the packaging. Purpose MANO EDU XL is a system for magnifying text and pictures with voice output. Declaration of Conformity (DoC), CE/FCC mark You can request a copy of the declaration of conformity in written form from Reinecker Vision GmbH, Sandwiesenstr. -
Page 10: Ii. Safety Instructions
Do not touch the AC adapter with wet hands. Only use the original power supply which is included in the delivery by Reinecker Vision GmbH. The use of any other equipment might lead to a product damage. If the system is equipped with batteries, only original parts from Reinecker Vision GmbH should be used for replacement. -
Page 11: Iii. Instructions

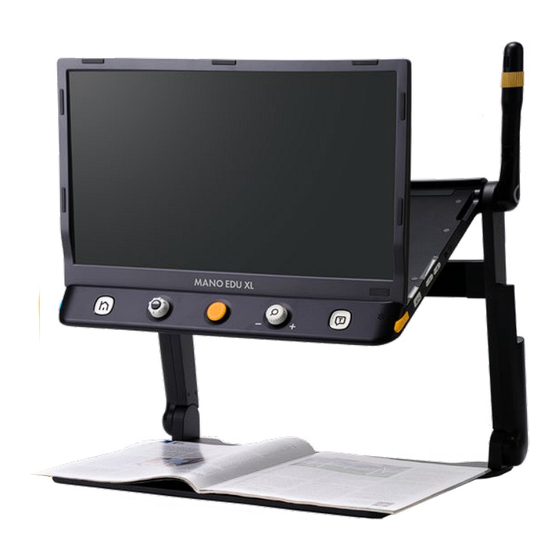

Setting up MANO EDU XL MANO EDU XL has a stand that holds the display in a comfortable reading position. There is a carrying handle on the housing for safe transportation. Note: Carefully remove the device from the packaging and place it on a stable... -
Page 12: Unfolding Mano Edu Xl
Unfolding MANO EDU XL Place the transportable video magnifier on a stable surface and hold the base plate firmly with one hand. Use your other hand to pull up the handle to move the display upwards. Keep pressing the tray and unfold the arms to a suitable angle. -
Page 13: Distance Camera Setting Up
Distance camera setting up The distance camera is located on the right side of the stand and can be rotated into different positions. Rotate the camera arm counterclockwise backwards until it is in the desired position. The yellow ring can be used to rotate the distance camera to different positions, so that it can also be used as a mirror, for example. -
Page 14: Description Of The Controls
Description of the controls 1) DC port 7) line/mask button 13) microphone 2) ON/OFF 8) home 14) headphone / loudspeaker socket 3) HDMI input 9) color mode 15) volume +/- 4) HDMI output 10) joystick 16) autofocus 5) SD card slot 11) zoom 17) freeze frame 6) camera switch... -
Page 15: Operation
When the unit is ON, press and hold the ON/OFF button to turn OFF MANO EDU XL. A menu appears in which you can choose to either switch MANO EDU XL to standby mode or to turn it OFF. No operation for 3 seconds will automatically switch to the highlighted mode. -
Page 16: Move The Magnified Image
Press the home button for 2 seconds or tap the exit icon to close full page reading. Press the TTS button to access the reading aloud function. You can find out more about operating MANO EDU XL in text-to-speech mode under„Operation in reading mode“ on page 23 . -
Page 17: Orientation Aids In The Magnified Image
Orientation aids in the magnified image Image position Double tap the center of the image to re-center the image (or push the joystick in any direction and press the zoom in button at the same time). Double-tap the at edge of the display to jump to the end of the original image (or press the joystick twice quickly in the desired direction). -
Page 18: Lighting
Lighting Show the menu bar and tap the light bulb on the left to switch the entire lighting ON and OFF. By tapping on the lamps on the right, you can switch the left and right LEDs ON and OFF individually. This can be helpful to minimize glare on the reading material. -
Page 19: Freeze Frame Function
Freeze frame function Press the Freeze button on the right side of the device to create a freeze frame. Press the button again to return to live mode. When viewing freeze images, you can change the magnification and color mode as described on page 15. -
Page 20: Autofocus
Briefly press the autofocus button to activate or deactivate it. If you want to write under MANO EDU XL, turn the autofocus OFF before you place your hand under the display to write something. This will prevent the hand or the pen from being in focus and not the writing. -
Page 21: Document View Of The Distance Camera
MANO EDU XL with a second display MANO EDU XL can be connected to a second display via the HDMI connection. The optionally available display can be plugged into the rear stand bar. This allows you to use both displays in a comfortable viewing position. -
Page 22: Different Viewing Modes (Only With Identical Camera Images)
Press the TTS button to capture the displayed image section and switch to reading mode. MANO EDU XL usually detects and adjusts the image alignment correctly. You can also manually align the displayed image if necessary. Press and hold the camera switch button until the menu bar appears. -
Page 23: Operation In Reading Mode
Operation in reading mode A loading icon appears while the text is being captured. The capture time depends on the structure and amount of the text. When the text is completely captured, the menu bar appears, where you can choose between different settings. Touch the reading speed slider and move it to adjust the reading speed. -
Page 24: Segmentation Deactivated
Segmentation deactivated Here the recorded text is not divided into sections but recognized as continuous text and the active position in the text is highlighted. You can go to another part of the text with the forward/back buttons in the menu bar or via the touchscreen. Tap on the play or pause symbol in the menu bar or press the TTS button to start / stop reading the selected sentence. -
Page 25: The Main Menu
You also have the option of copying saved files to an SD card or a USB stick. If you want to view external pictures, text files or PDFs on MANO EDU XL, you can copy them from an SD card or USB stick to the device. -
Page 26: Copy Files From An Sd Card/Usb Stick To The Device
Copy files from an SD card/USB stick to the device In the open document/picture menu, open the SD card (2) or USB stick (3), select the desired files, and press the copy icon in the left column. Supported picture formats are JPG, BMP, PNG, and TXT, PDF for documents. -
Page 27: Open And View Pictures
Open and view pictures Open the pictures folder on the device or SD card/USB stick. There you can scroll up or down with the slider on the right side of the screen or with the joystick. Tap the thumbnail to highlight it and tap it again (or press the TTS button) to view the picture. -
Page 28: View And Read Aloud Pdf Files
View and read aloud PDF files Tap one of the arrows in the menu bar to scroll back/forward one page. Press and hold to scroll back/forward first 10 and then 50 pages at a time. Tap one of the double arrows in the menu bar to go to the beginning or end of the PDF.. -
Page 29: Language Settings
Language settings Male / female voice selection If your language is set to English, you can also choose between US, UK and AU voices. Language selection Here you can choose between the currently available languages. The setting changes the language in the menus and the voice output. Table mode If you would like to capture the text of a table and have it read out, activate this function so that the order of the individual elements is displayed correctly. -
Page 30: Hardware Reset
Hardware reset If the device freezes and cannot be turned OFF the regular way, press the power button and both volume buttons at the same time to do a hardware reset. Handling of the battery Attention: A prerequisite for a long battery life is the correct operation and charging of the battery. -
Page 31: Iv. Troubleshooting
● Tap the screen for 2 seconds to manually set the focus. If the problem is not solved, reset the device to factory settings and perform a hardware reset. If you have any further problems, please contact Reinecker Vision GmbH... -
Page 32: Warranty Information
V. Warranty information 1. Reinecker Vision GmbH grants a warranty of 24 months (warranty period only valid within the European Union) against defects in manufacture counted from date of invoice ex Reinecker Vision GmbH. 2. All parts that have been replaced when repairing the unit will automatically become property of Reinecker Vision GmbH. -
Page 33: Vi. Technical Details
VI. Technical details Type MANO EDU XL (MANEDXL1/MANEDXL1LV) FullHD 15.6" (approx. 39.5 cm) touch display on a tiltable Display stand, screen resolution: 1920 x 1080 Cameras Ultra HD 4K camera, video resolution: 3840 x 2160 Document view: 1.4x - 54x... - Page 36 Manufacturer In case service is necessary, please contact your authorized distributor. Reinecker Vision GmbH International Contact sales department, customer relations: Sandwiesenstraße 19 DE-64665 Alsbach-Hähnlein customer service: Erlenweg 3 DE-64665 Alsbach-Hähnlein Tel.: +49 6257 9311- 0 Fax: +49 6257 9311- 8230 Email: international@reineckervision.de...
