user manual
MANO 6
Please read this user
manual carefully prior
to installation, use
and maintenance for
your own safety and in
order to avoid damages
on your system.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MANO 6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Reinecker MANO 6

Summary of Contents for Reinecker MANO 6

  • Page 1 MANO 6 Please read this user manual carefully prior to installation, use and maintenance for your own safety and in order to avoid damages on your system.

  • Page 3: Table Of Contents

    Content I. General Information ................6 Directive 2014/30/EU electromagnetic compatibility (EMC)....... 6 Storage of the user manual ................ 8 Product description ..................8 Purpose ...................... 8 Declaration of conformity, CE labeling ............9 Precautions by alteration of the performance of the device ...... 9 Cleaning of the system ................
  • Page 4 III. Instructions ..................14 1. Scope of supply ................. 14 2. Commissioning .................. 14 Charging the battery ................. 14 Power button .................... 15 Folding stand .................... 16 Handle ...................... 17 3. Operation ................... 18 Compositions .................... 18 Turning ON/OFF ..................20 Menu......................
  • Page 5 LED lighting ....................24 Freeze image ................... 24 Image gallery .................... 25 Delete saved images ................27 Autofocus ....................29 Refresh rate ....................29 Memory ..................... 29 Energy saving mode................. 30 Reset to default factory settings ............... 30 Hardware reset ..................30 Battery charging ..................

  • Page 6: General Information

    I. General Information Important notes on the operation of the electronic magnifier MANO 6. Please read them carefully prior to the operation of the electronic magnifier! Directive 2014/30/EU electromagnetic compatibility (EMC) This electronic magnifier is suited for use in all set-ups including the domicile that are connected directly to a public power supply for buildings with residential purposes.
  • Page 7 For this reason it should be ensured that the system is not placed directly beside or on top of another system. If the set-up of this system in the proximity of medical, measuring devices cannot be avoided, the operator of these devices has to be informed that it is necessary to observe the performance of the system to control the conventional use of the system in the chosen set-up.

  • Page 8: Storage Of The User Manual

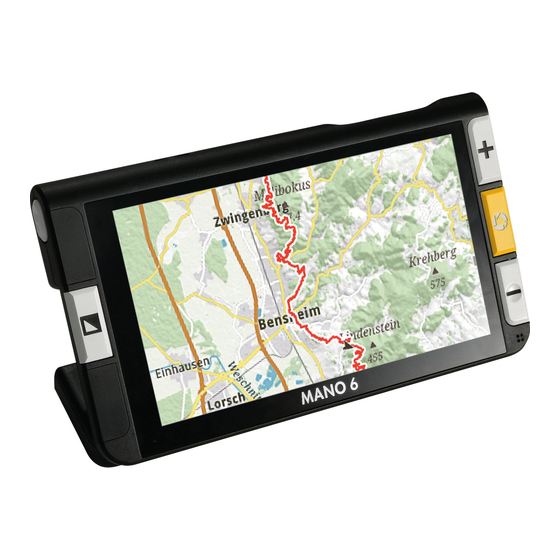

    Storage of the user manual The user manual is an essential part of MANO 6. Please keep the manual in a safe place for future reference. Product description MANO 6 is a system to magnify text and images with the following benefits: ●...

  • Page 9: Declaration Of Conformity, Ce Labeling

    Declaration of conformity, CE labeling MANO 6 meets the basic requirements as well as all other rele- vant regulations of the EN 62368-1 directive. You can review and/ or download a copy of the declaration of conformity at www.rei- neckervision.de/medien/konformitaetserklaerungen/ . You can also write a letter to Reinecker Vision GmbH, Sandwiesenstr.

  • Page 10: Reinstatement, Installation And Maintenance

    Reinstatement, installation and maintenance This device may be technically repaired and reconditioned by Reinecker Vision GmbH only or by an authorized technician. Special advice for transport and storage For safety reasons, the unit must only be shipped in the original packing.

  • Page 11: Environmental Notice According To 2012/19/Eu

    Disposal or transfer of the device This equipment may retain user settings and stored images if disposed of or transferred. Prior to disposing or transferring MANO 6, remove all personal content from the device, as described in „Reset to default factory...

  • Page 12: Safety Instructions

    3. Only use the power adapter which is included in the delivery by Reinecker Vision GmbH. The use of any other equipment might lead to a product damage. 4. If the device is intended for battery operation, only original parts may be used.
  • Page 13 10. Do not try to repair or to dismantle the device by your own. This would automatically void the warranty. If you need any technical assistance please get in contact with the local distributor or with Reinecker Vision GmbH. 11. Always turn OFF the system and disconnect it from the power supply before cleaning it.

  • Page 14: Instructions

    III. Instructions 1. Scope of supply In the scope of supply of MANO 6 you will find the following articles : ● MANO 6 ● short hand strap ● protective bag ● long hand strap ● power adapter ● quick reference guide ●...

  • Page 15: Power Button

    Power button When the device is switched OFF, the power button which is located at the left side of the unit lights up green during charging and switches OFF automatically when fully charged. A full charge takes about 2.5 hours and will allow the unit to work for about 3 hours (depending on the operation mode).

  • Page 16: Folding Stand

    Folding stand Hold the rear side of the stand in the recess above the yellow arrow and unfold the stand as shown. The system will turn ON automatically.

  • Page 17: Handle

    Handle Make sure that the stand is folded. Then move the handle in the direction of the arrow. Depending on the holding angle, the handle can be turned slightly to increase the reading comfort with MANO 6.

  • Page 18: Operation

    3. Operation Compositions...
  • Page 19 1) microSD card slot 7) fastening for hand strap 2) color mode 8) power port 3) zoom in 9) LED lighting 4) freeze button 10) camera 5) zoom out 11) stand/handle 6) power button...

  • Page 20: Turning On/Off

    Turning ON/OFF To switch ON MANO 6 either press and hold the power button for 2 seconds or unfold the stand. Press and hold the power button for approx. 3 seconds until a menu appears. You can select to either put your system into standby mode or to turn it OFF.

  • Page 21: Magnification

    line marker/mask vibration ON/OFF autofocus ON/OFF energy saving mode ON/OFF LED lighting open gallery 50% - 100% - OFF To exit the menu, press the power button again. The menu turns OFF automatically after 8 seconds of inactivity. Magnification On the right side, the buttons for magnification are located at the top and bottom.

  • Page 22: Moving The Magnified Image

    At a higher magnification level, you can navigate through the image using sliding movements on the touch screen. This allows you to read more comfortably without moving the paper or MANO 6. Guidance in magnified image mode Briefly double tab the center of the display to re-center the image.

  • Page 23: Color Modes

    Color modes Tap the color mode button to choose between the different screen colors: True color mode white on black black on white yellow on black black on yellow To switch to true color mode, press the power button and the color mode button simultaneously in artificial color mode.

  • Page 24: Led Lighting

    LED lighting The LED lighting can be used with 100% or 50% luminosity or switched off completely. You can make this setting via the menu or by pressing the power button and freeze image button simultaneously. Freeze image Press the freeze button to create a freeze image. Press the button again to return to live mode.

  • Page 25: Image Gallery

    Image gallery Open the menu and tap on the gallery icon to open your stored images. Use your finger to scroll through your stored pictures by moving the scroll bar. Tap twice on a picture to open it. Alternatively, you can use the zoom in and zoom out button to scroll through the pictures and use the freeze image button to open the selected image.
  • Page 26 Copy pictures to a microSD card You have the possibility to copy stored pictures to a microSD card, e.g. to view or print them on a PC. Select one or more images and then press the card icon. If you have selected only one image, it will be copied automatically.

  • Page 27: Delete Saved Images

    Note: To avoid damage to the device, please make sure that the card protrudes approx. 4 mm out of the device before removing it and do not try to remove the card by force. Delete saved images Select one or more images and tap the delete icon. If you have only one image selected, you must press the delete icon a second time to delete it for good.
  • Page 28 Line marker and mask Change the position by swiping in the opposite direction of the marking. To change the size, swipe along the marking. You can change the position of the horizontal line ruler, for example, by stroking up and down over the display. If you move your finger to the right or left, you can change the line width.

  • Page 29: Autofocus

    3 seconds. Memory MANO 6 will memorize automatically the most recent settings, such as color mode, magnification, beep when power is OFF and recall them when the system is ON next time.

  • Page 30: Energy Saving Mode

    Energy saving mode If no operation and no move for more than 5 minutes, MANO 6 will turn automatically into standby mode. After 10 minutes more, the system turns OFF automatically. You can deactivate this function within the internal menu.

  • Page 31: Battery Charging

    AC outlet. ● If MANO 6 is not in use for a longer period of time, the battery dis- charges automatically. Always check charging status to avoid complete discharge which would damage the unit.

  • Page 32: Troubleshooting

    4. Troubleshooting The device cannot be switched ON ● Connect the power adapter and charge the battery Black or white screen ● When the device is placed on a flat, clean surface with no structure, the screen may be black or white. ●...

  • Page 33: Warranty Information

    5. Warranty information 1. Reinecker Vision GmbH grants a warranty of 24 months (warranty peri- od only valid within the European Union) against defects in manufac- ture counted from date of invoice ex Reinecker Vision GmbH. 2. All parts that have been replaced when repairing the unit will automati- cally become property of Reinecker Vision GmbH.
  • Page 34 6. If a warranty claim is necessary, the system has to be returned to the manufacturer in Alsbach-Hähnlein or to your authorized dealer in the original packaging including all components. The manufacturer does not carry the cost for transport, packaging and insurance. You need to ask for an RMA ticket prior to return the unit.

  • Page 35: Technical Details

    6. Technical details type MANO 6 (MANO6001) screen touchscreen with approx. 14 cm screen diagonal screen resolution 1920 x 1080 pixel camera 13 megapixels with autofocus magnification approx. x2 to x35 color modes true color, up to 16 artificial colors adjustable...
  • Page 36 Reinecker Vision GmbH In case service is necessary, please sales department, customer relations: contact your autho- Vertrieb, Kundenberatung: rized distributor. Sandwiesenstraße 19 DE-64665 Alsbach-Hähnlein Bitte wenden Sie sich customer service: bei Fragen oder einem Servicefall direkt an Kundendienst: unser Hauptwerk in Erlenweg 3 Alsbach-Hähnlein...
