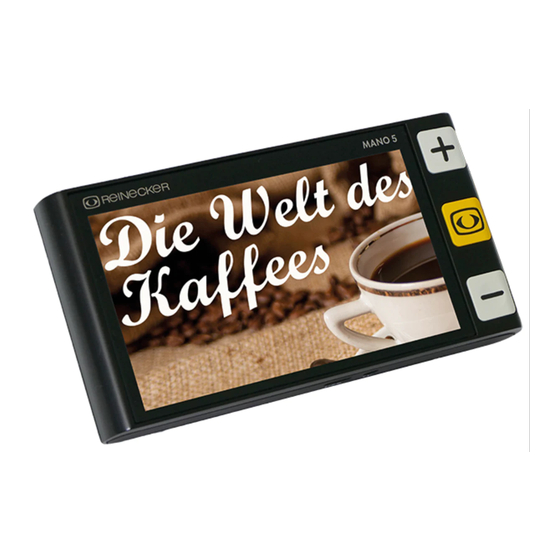

- Page 1 User manual MANO 5 Please read this user manual carefully prior to installation, use and maintenance for your own safety and in order to avoid damages on your system.
-
Page 3: Table Of Contents
Content I. General Information ................6 Directive 2014/30/EU electromagnetic compatibility (EMC)....... 6 Storage of the user manual ................ 8 Product description ..................8 Purpose ...................... 8 Declaration of conformity, CE labeling ............9 Precautions by alteration of the performance of the device ...... 9 Cleaning of the system ................ - Page 4 III. Instructions ..................14 1. Scope of supply ................. 14 2. Commissioning .................. 14 Battery installation ..................14 Charging the battery ................. 15 Battery handling ..................16 Power indicator ..................17 Writing stand .................... 18 Attaching the foldable handle ..............19 3.
- Page 5 Contrast adjustment (artificial color mode)..........27 LED lighting ON/OFF ................27 Freeze image ................... 27 Connection to a TV .................. 29 Memory ..................... 30 Energy saving mode................. 30 Reset to default factory settings ............... 30 4. Troubleshooting ................. 31 5. Warranty information ................. 32 6.
-
Page 6: General Information
I. General Information Important notes on the operation of the electronic magnifier MANO 5. Please read them carefully prior to the operation of the electronic magnifier! Directive 2014/30/EU electromagnetic compatibility (EMC) This electronic magnifier is suited for use in all set-ups including the domicile that are connected directly to a public power supply for buildings with residential purposes. - Page 7 For this reason it should be ensured that the system is not placed directly beside or on top of another system. If the set-up of this system in the proximity of medical, measuring devices cannot be avoided, the operator of these devices has to be informed that it is necessary to observe the performance of the system to control the conventional use of the system in the chosen set-up.
-
Page 8: Storage Of The User Manual
Storage of the user manual The user manual is an essential part of MANO 5. Please keep the manual in a safe place for future reference. Product description MANO 5 is a system to magnify text and images with the following benefits: ●... -
Page 9: Declaration Of Conformity, Ce Labeling
Declaration of conformity, CE labeling MANO 5 complies with the essential requirements of the Directive 2014/35/EU (Low Voltage Directive), as well as other relevant and applicable regulatory requirements and standards. You can review and/or download a copy of the declaration of conformity at www.rei- neckervision.de/medien/konformitaetserklaerungen/ . -
Page 10: Cleaning Of The System
● Do not allow any liquids to enter the device. Reinstatement, installation and maintenance This device may be technically repaired and reconditioned by Reinecker Vision GmbH only or by an authorized technician. Special advice for transport and storage For safety reasons, the unit must only be shipped in the original packing. -
Page 11: Environmental Notice According To 2012/19/Eu
Disposal or transfer of the device This equipment may retain user settings and stored images if disposed of or transferred. Prior to disposing or transferring MANO 5, remove all personal content from the device, as described in „Reset to default factory... -
Page 12: Safety Instructions
3. Only use the power adapter which is included in the delivery by Reinecker Vision GmbH. The use of any other equipment might lead to a product damage. 4. If the device is intended for battery operation, only original parts may be used. - Page 13 10. Do not try to repair or to dismantle the device by your own. This would automatically void the warranty. If you need any technical assistance please get in contact with the local distributor or with Reinecker Vision GmbH. 11. Always turn OFF the system and disconnect it from the power supply before cleaning it.
-
Page 14: Instructions
III. Instructions 1. Scope of supply ● MANO 5 ● USB cable with power adapters ● Li-Ion battery ● TV connection cable ● battery cover ● microfiber cloth ● battery cover with handle ● quick start guide ● carrying case ●... -
Page 15: Charging The Battery
Connect the supplied USB cable to the power adapter and connect the supplied USB cable to the USB-C port on the unit. Plug the power adapter into an AC outlet and start charging MANO 5. Caution: The AC adapter supplied with the unit is designed to operate... -
Page 16: Battery Handling
AC outlet. ● If MANO 5 is not in use for a longer period of time, the battery dis- charges automatically. Always check charging status to avoid complete discharge which would damage the unit. -
Page 17: Power Indicator
Power indicator The symbol of the power indicator lights up in different colors, which can be used to indicate different charging states: Device switched OFF, power supply connected: ● Green power indicator: device is charging ● Power indicator OFF: device is fully charged Device switched ON: ●... -
Page 18: Writing Stand
Writing stand Open the writing stand as the following figure shows. And you can write under the camera. -
Page 19: Attaching The Foldable Handle
Attaching the foldable handle A foldable handle can be attached to the rear by replacing the battery cover. To do this, remove the battery cover as described on page 14. Unfold the cover with handle and slide it back until it clicks into place. -
Page 20: Operation
3. Operation Compositions Front... - Page 21 Bottom 1) LCD display screen 6) ON/OFF button 2) zoom in 7) loudspeaker 3) color mode 8) freeze image 4) zoom out 9) USB-C port 5) status LED 10) TV port...
- Page 22 Back 11) stand 13) LED lighting 12) camera 14) battery compartment...
-
Page 23: Turning On/Off
Turning ON/OFF To turn ON MANO 5 press and hold the power button for approx. 3 seconds. Press and hold the power button for approx. 3 seconds to turn OFF the device. Briefly press the power button to view the status of the battery, color mode, freeze/live image, and the acoustic signals. -
Page 24: Magnification
Magnification Press the zoom in button to increase the magnification and the zoom out button to decrease it. Press and hold one of the zoom buttons to adjust the magnification continuously. Color modes A color mode is a pre-defined color combination. Full color mode is suit- able for viewing pictures or maps. - Page 25 The following color combinations are available in the different artificial color combination lists: Simplified: true color mode white on black black on white Standard (default setting): true color mode white on black black on white yellow on black black on yellow...
-
Page 26: Brightness
Extended: true color mode white and black black and yellow white and blue blue and yellow green and black black and violet black and blue green and white red and white red and black Brightness Set the display brightness for full color mode and artificial color mode. The factory default value is highlighted in green. -
Page 27: Contrast Adjustment (Artificial Color Mode)
Contrast adjustment (artificial color mode) Fine-tuning the combination of foreground and background color in an artificial color mode improves the image quality of different materials. The factory default value is highlighted in green. Press the power button and the color mode button simultaneously to change the contrast. - Page 28 Press the freeze button to lock the active image. Press the freeze button again to release it. You can move the magnified image as follows: power button and zoom + button: move image to the right or up power button and zoom - button: move image to the left or down If you want to switch from the horizontal direction of move- ment to the vertical direction, briefly press both the power...
-
Page 29: Connection To A Tv
Connection to a TV You can connect MANO 5 to a TV. Insert the black plug of the TV cable into the TV output on the bottom of MANO 5. Connect the yellow RCA plug to the yellow composite input on your TV. -
Page 30: Memory
Memory MANO 5 will memorize automatically the most recent settings, such as color mode, magnification, acoustic signals when power is OFF and recall them when the system is ON next time. Energy saving mode If this function is activated, the unit will automatically turn OFF if there is no operation or movement for more than 3 minutes. -
Page 31: Troubleshooting
4. Troubleshooting The device cannot be switched ON ● Connect the power adapter and charge the battery ● Check if the battery is inserted The device cannot be switched OFF ● Remove the battery and re-insert it Black or white screen ●... -
Page 32: Warranty Information
Cleaning the LCD screen and camera 5. Warranty information 1. Reinecker Vision GmbH grants a warranty of 24 months (warranty peri- od only valid within the European Union) against defects in manufac- ture counted from date of invoice ex Reinecker Vision GmbH. - Page 33 4. Interventions from persons other than Reinecker Vision GmbH authorized specialists may lead to invalidity of warranty. 5. Partial warranty is valid for light sources serving to illuminate the read- ing object, batteries and other parts subject to wear and tear.
-
Page 34: Technical Details
6. Technical details type MANO 5 (MANO5001) 5" LCD display with approx. 12,7 cm screen screen diagonal magnification approx. x4 to x20 color modes true color, up to 20 artificial colors adjustable freeze image freeze image function, WxHxD approx. 15.2 x 8 x 2.2 cm / measurements 6 x 3.1 x 0,9 inch... - Page 36 Reinecker Vision GmbH In case service is necessary, please Vertrieb, Kundenberatung: contact your autho- sales department, customer relations: rized distributor. Sandwiesenstraße 19 DE-64665 Alsbach-Hähnlein Bitte wenden Sie sich Kundendienst: bei Fragen oder einem customer service: Servicefall direkt an unser Hauptwerk in Erlenweg 3 Alsbach-Hähnlein...
