Geb ra u chsa n w ei sun g
Us er m an ua l
M o d o d e emp l e o

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MANO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Reinecker MANO

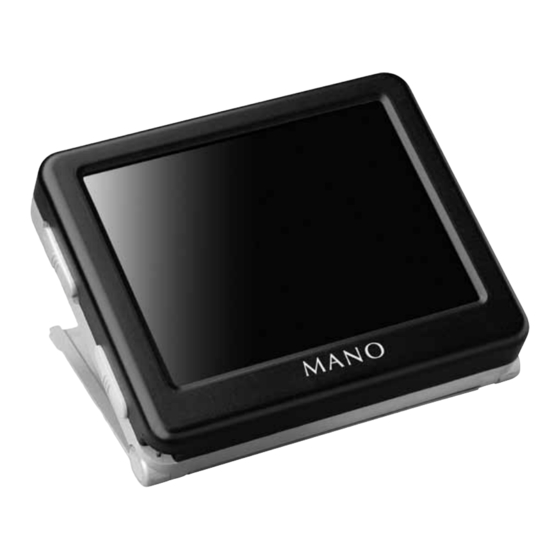

Summary of Contents for Reinecker MANO

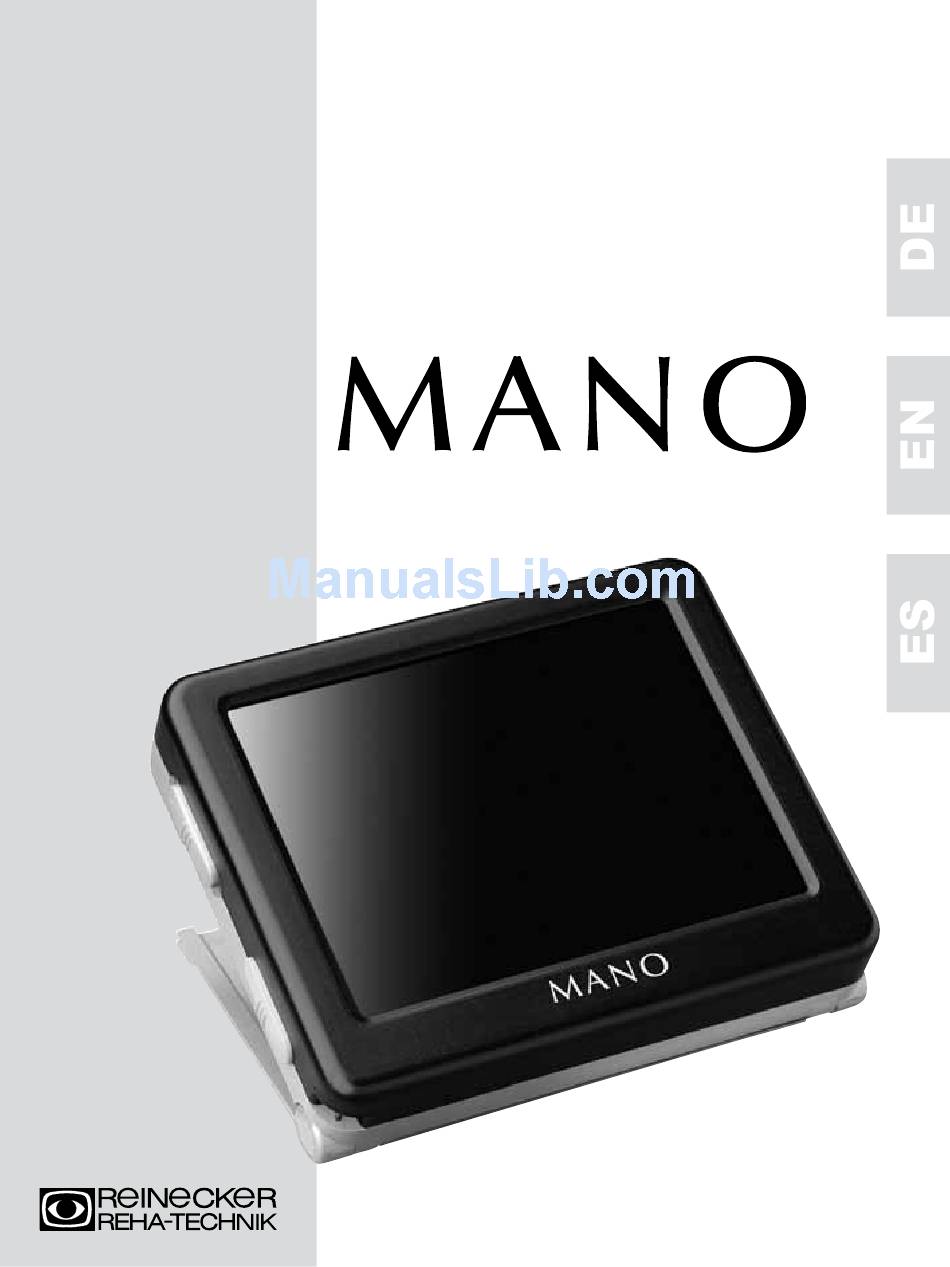

  • Page 1 Geb ra u chsa n w ei sun g Us er m an ua l M o d o d e emp l e o...
  • Page 2 Before initial use Insert the rechargeable battery into the case • Take MANO out of the plastic bag • Open the folding stand until it locks in place • Slide open the battery cover pushing in the direction of the arrow 1 •...
  • Page 3 Skizzen:/Illustrations:/Ilustraciones:/ Vor Inbetriebnahme/Before initial use/ Antes de usar Stativbügel folding stand placa del soporte Abdeckplatte cover plate cubierta de la batería Kurzanleitung/Quick reference guide/ Guía de referencia rápida Schnappschuss snapshot Zoom foto zoom Ein/Aus Zoom/enfoque on/off Encender/apagar...

  • Page 4: Table Of Contents

    Content Accessories ..............28 Notes before operating the device ........ 28 1. Start-up ..............29 2. Description of the controls......... 29 2.1 Yellow “on/off” button ..........30 2.2 “Zoom” Button with 4 functions ....... 30 2.2.1 Zoom plus = Increase Magnification ....30 2.2.2 Zoom minus = Decrease Magnification....
  • Page 5 5. Power Supply ............35 5.1 Included adapters ............ 35 5.2 Connecting the adapter to the power supply ..36 5.3 Connecting MANO to the power supply ....36 6. Standby function............37 7. Automatic switch-off ..........37 8. Saving the settings ............ 37 9.

  • Page 6: Accessories

    Read the manual carefully before switching on the device. Keep the manual in a safe spot for further reference. If you need to return your MANO for service, pack it in its original packaging and return it to your retailer, indicating the problem you are having.

  • Page 7: Start-Up

    1. Start-up Please insert the pre-charged battery as described in the quick start guide on the front cover page. MANO can be switched on by pressing the yellow „on/off“ button. 2. Description of the controls front left side right side...

  • Page 8: Yellow "On/Off" Button

    2.1 Yellow “on/off” button The on/off button is unmistakably marked in yellow. When you push the button for 3 seconds, MANO will be switched on. To turn off MANO, briefly push the yellow button. 2.2 “Zoom” Button with 4 functions 2.2.1 Zoom plus = Increase Magnification...

  • Page 9: Snapshot/Live Image Button

    2.3 Snapshot/Live image Button You can change from freeze frame image to live image with the “snapshot” button. Both text and images can be saved and retrieved. 2.3.1 Saving an image By pushing the snapshot button, you may save the image currently on the TFT screen.

  • Page 10: Freeze Frame Function

    (up to 15 cm or 6 inches away from MANO.) Pressing the snapshot button one more time will return you to the live reading mode.

  • Page 11: Application

    3. Application MANO may be used in 3 different ways: 3.1 Reading with stand Expand the folding stand until it locks in place Place MANO on the reading material. Move MANO with the expanded folding stand across the reading material. Now...

  • Page 12: Writing

    !Please note! Viewing of computer monitors If you wish to use MANO to view screens such as ATM machines, computers, or other electronic displays, you may experience excessive glare due to the internal ligh- ting on MANO. To avoid the glare, turn off the internal light on MANO (see 2.2.4).

  • Page 13: Rechargeable Battery Display

    4.2 Rechargeable battery display Upon turning MANO on, you will see the symbol of the rechargeable battery on the TFT display. The charge level will be indicated. Charge level 100% = rechargeable battery is completely charged Charge level 50%=rechargeable battery is half charged If the symbol of the rechargeable battery is flashing red, the rechargeable battery needs to be charged.

  • Page 14: Connecting The Adapter To The Power Supply

    5.3 Connecting MANO to the power supply After connecting the primary adapter, plug the power supply into an electrical outlet. Switch on MANO. The operating elements and the use are the same as for battery operation. If you use MANO with while plugged into an electrical supply, the power supply to the battery is disconnected in order to preserve battery capacity.

  • Page 15: Standby Function

    6. Standby function If MANO is left idle for 2 minutes of no use, the device switches automatically to standby mode. Simply moving the device turns it on again. 7. Automatic switch-off If MANO remains in the standby mode for more than 5 minutes, the unit will shut off completely.

  • Page 16: Changing Of The Rechargeable Battery

    9.1 Changing of the rechargeable battery Switch off MANO and pull the DC plug of the power supply out of the DC nut of MANO. Open the folding stand. Push the cover plate of the rechargeable battery softly out of its lock (1), take out the cover plate (2). Take the rechargeable battery out of the bay (deepening of the handle at the edge).

  • Page 17: Non-Liability In Case Of Using Wrong Rechargeable Battery

    Reinecker Reha-Technik GmbH or one of its partners is specifically prohibited, as this may cause severe damage to the device. The MANO warranty is voided if any other rechargeable battery is used. Reinecker Reha-Technik is not liable for damage caused...

  • Page 18: Protective Bag

    10. Protective bag Please always use the protective bag for storing MANO. The display and the case will thus be protected from damage. 11. Hand strap In the cardboard box a hand strap is included. It may be attached to carry MANO on your wrist.

  • Page 19: Notes For Handling

    Content changes of this manual are subject to change without advance notice. • Do not expose MANO to extreme direct sunlight. For instance, do not store it close to windows or heaters. • Protect MANO from excessive heat and do not place other objects on top of it.

  • Page 20: Cleaning Of The Device

    The case parts may be damaged. 14. CE and FCC notes for electro-magnetic compatibility (EMV) MANO is suited for use in all facilities, including all homes and offices connected to the public power supply. MANO is destined for operation in the indicated electro- magnetic surrounding.

  • Page 21: Technical Data

    15. Technical data • Magnification: approx. x1 - x20 • Display: Full color Semi-color: positive mode: black on white pegative mode: white on black, green on black, yellow on black, yellow on blue • weight: 139 gr (4.9 oz) • Measurements of the case: 89 x 74 x 21 mm (3.5“...
  • Page 22 Kontakt innerhalb Deutschlands: Bitte wenden Sie sich bei Fragen oder Reinecker Reha-Technik GmbH einem Service fall Entwicklung, Produktion, Vertrieb, direkt an unsere Zent- Kundenberatung und Kundendienst rale oder Ihren autho- risierten Fachhändler. Sandwiesenstraße 19 64665 Alsbach-Hähnlein Tel. 0 18 05-54 56 65* Fax 0 62 57-25 61 info@reineckerreha.de...
