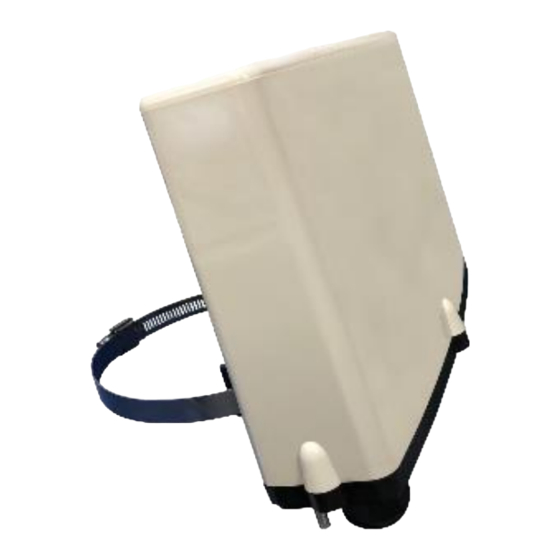

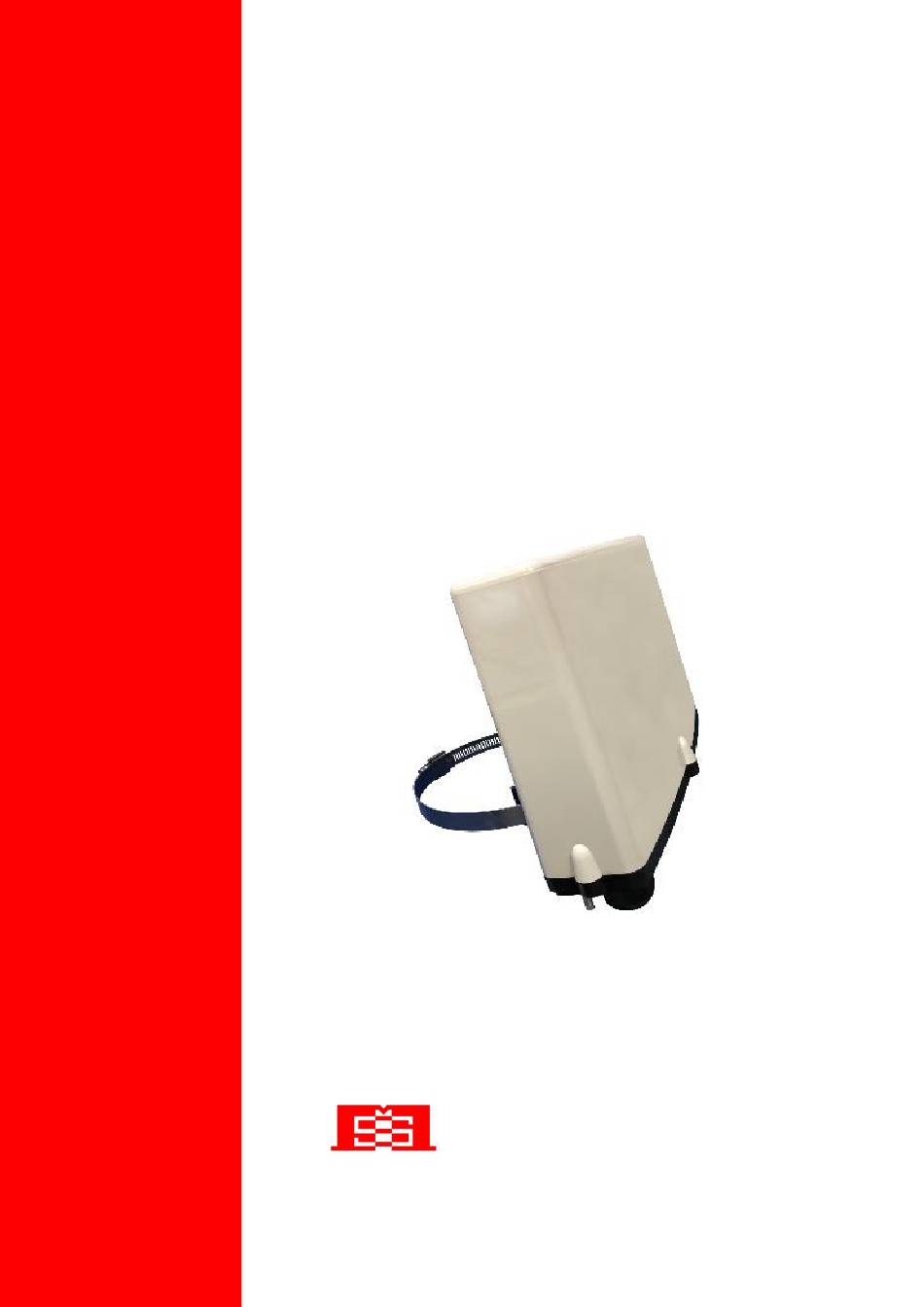

- Page 1 PSE-SW5B15DBHM-IP66-RJ45 IP66 Waterproof 5 Port PoE Switch & Extender (Repeat Ethernet and PoE) USER’S MANUAL MSTRONIC CO., LTD.
-
Page 2: General Information
(M20 4Pin Plug) (RJ45 Port 5) (other 4 ports) M20 Plug / RJ45 Port1~5) 11-60VDC 56VDC/2.55A No input (14.2A-2.78A) (regulated) 44-57VDC/2.0A 44-57VDC No input Voltage / Current (2.0A max.)* (non-regulated) 11-60VDC 44-57VDC 56VDC/2.55A (14.2A-2.78A) (2.0A max.)* (regulated) MSTRONIC CO., LTD. - Page 3 1~4 with PoE PSE) with automatic MDI/MDI-X crossover, auto-sense for speed and duplex for 10Base-T, 100Base-TX or 1000Base-T connection. Automatic MDI/MDI-X crossover allows you to connect to other devices (switches, hubs, or workstations etc.), without regard to using straight-through or crossover cabling. MSTRONIC CO., LTD.
- Page 4 If a port LED is off, go back and check for connectivity problems between that port and the network device connected. The maximum cable length for 10/100/1000BaseT with Cat 5 twisted pair cables is typically 100m (328 ft.). MSTRONIC CO., LTD.
- Page 5 DC power to the PD. The yellow PoE LED will light up when the cable is correctly connected. Refer to the LED Indicator section for descriptions of each LED indicator. If a port LED is off, go back and check for connectivity problems between that port and the network device connected. MSTRONIC CO., LTD.
- Page 6 IEEE 802.3af/at/bt standard in the network. The PoE Switch can be installed as a PoE+Ethernet repeater to extend Ethernet to 200 meters. The following figure is an example of a network application for the PoE Extender. MSTRONIC CO., LTD.
-
Page 7: Technical Specifications
PoE power Output Max. from Port 5: af–16.8W x4 / at–35W x2 / bt–60W(Type3) x1 (total:71W) from M20 4Pin Plug : at–35W x4 or bt–75W x2 (total:150W) PoE power Input(Port 5) Active: 71W min. for system, Current limited –1.62A@44-57V (compliant to 802.3af/at/bt classification at 90W PSE input.) Passive: Current limited –2.0Amax.@44-57V MSTRONIC CO., LTD. - Page 8 291mA/3.492W 140mA/3.36W 67.2mA/3.226W Power efficiency 85% at full load (@24V typical) Operating temperature -20℃~ +70℃ Operation humidity 90% relative humidity, non-condensing with conformal coating Storage temperature -40℃~+85℃ Dimension 207mm(H)x268mm(W)x88mm(D) With 6” hose clamp for light pole mounting MSTRONIC CO., LTD.
- Page 9 User’s Manual PSE-SW5B15DBHM-IP66-RJ45 *Surge Protection on data pairs MSTRONIC CO., LTD.
- Page 10 User’s Manual PSE-SW5B15DBHM-IP66-RJ45 *Dimension IP class: IP66, anti-UV MSTRONIC CO., LTD.
- Page 11 User’s Manual PSE-SW5B15DBHM-IP66-RJ45 MSTRONIC CO., LTD.
- Page 12 User’s Manual PSE-SW5B15DBHM-IP66-RJ45 MSTRONIC CO., LTD.
- Page 13 User’s Manual PSE-SW5B15DBHM-IP66-RJ45 MSTRONIC CO., LTD.
