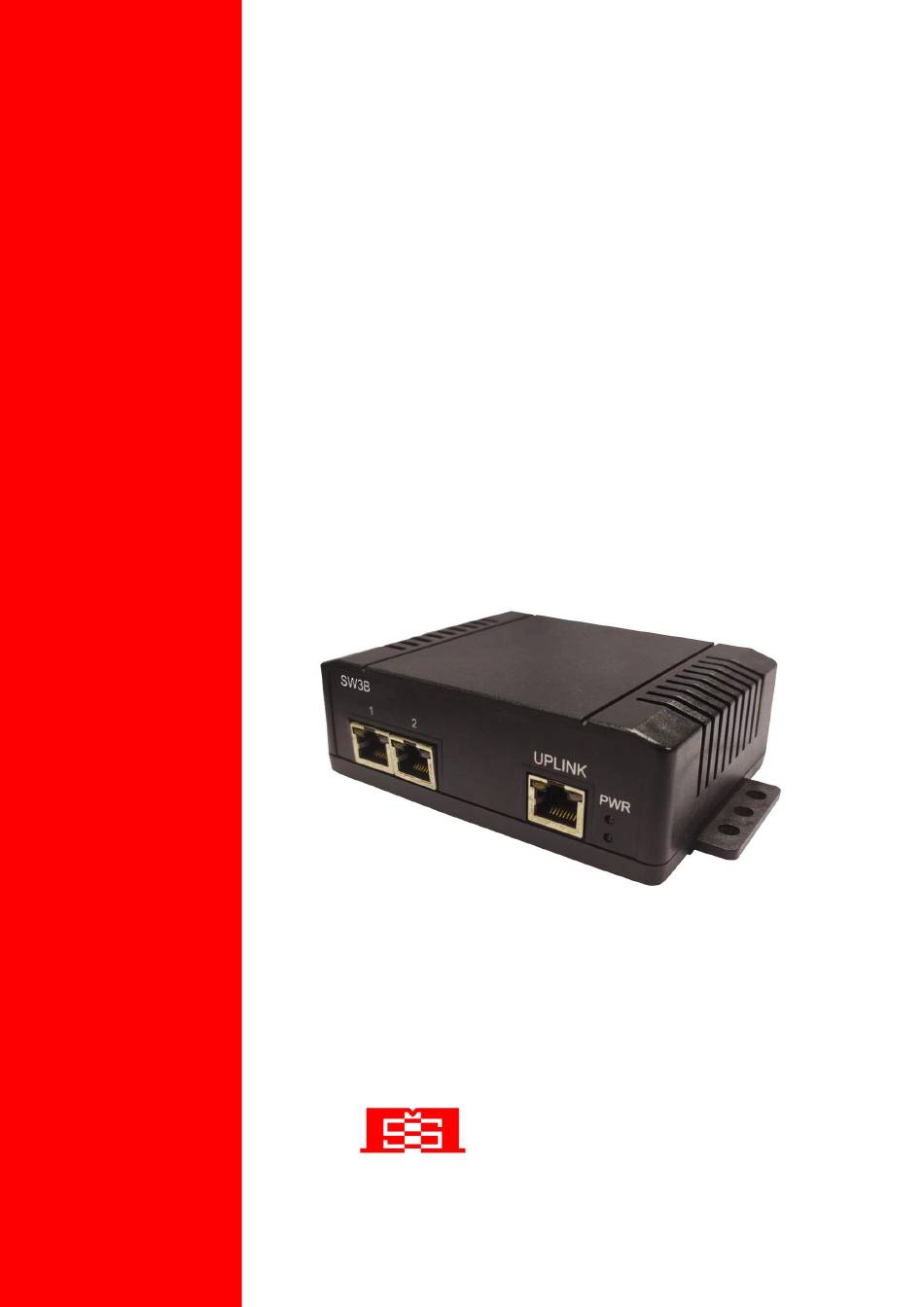

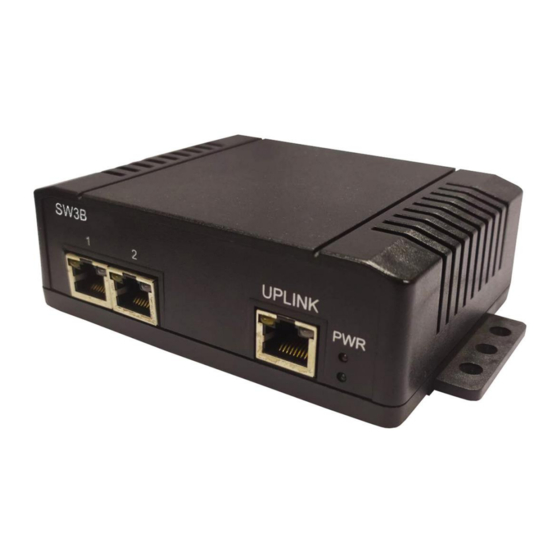

- Page 1 PSE-SW3B25D0H PoE Switch USER’S MANUAL MSTRONIC CO., LTD.
-
Page 2: Table Of Contents
User’s Manual PSE-SW3B25D0H 1. General Information.............. 2. Hardware Description............LED Indicators..................Power Wiring ..................Ethernet Port Wiring................PD Port Wiring..................Network Application……………………………………......3. Technical Specification............MSTRONIC CO., LTD. -
Page 3: General Information
There are 8 LEDs on the PoE switch to indicate the status of power and signal. The following section describes the functions of each LED indicator. Front panel detail *POWER LED STATUS Description Power Green LED ON when power input has valid power supplied. The indicator unused on this model. No power supplied. MSTRONIC CO., LTD. -
Page 4: Power Wiring
No power is detected on this port. *Power wiring The PSE-SW3B25D0H is IEE802.3bt PoE switch, for PoE operation, make sure your power supply may offer at least 40W for 2X 802.3af PoE ports, or 75W for 2X802.3at PoE ports, or 185W for 4X... -
Page 5: Ethernet Port Wiring
* Data pair D plus V-/V+ on line 7 and 8 The terminal block on rear panel should be wiring as: *Ethernet Port Wiring The PoE switch supports one RJ-45 uplink (port UP LINK) and two RJ-45 ports (port 1&2 with MSTRONIC CO., LTD. - Page 6 Pin 8 Pin 8 Cross-over Cabling Pin 1 Pin 3 Pin 2 Pin 6 Pin 3 Pin 1 Pin 6 Pin 2 Pin 4 Pin 7 Pin 5 Pin 8 Pin 7 Pin 4 Pin 8 Pin 8 MSTRONIC CO., LTD.
-
Page 7: Pd Port Wiring
PoE LED will light up when the cable is correctly connected. Refer to the LED Indicator section for descriptions of each LED indicator. If a port LED is off, go back and check for connectivity problems between that port and the network device connected. MSTRONIC CO., LTD. -
Page 8: Network Application
The PoE Switch can receive power from PoE midspan and provide power to the PD which follows the IEEE 802.3af/at/bt standard in the network. The following figure is an example of a network application for PoE Switch. MSTRONIC CO., LTD. -
Page 9: Technical Specification
*A+B mode: data pair A plusV-(1,2), data pair B plusV+(3,6), data pair C plusV+(4,5), & data pair D plus V-(7,8) Port 1&2: IEEE802.3af – 16.8W Maximum PoE power IEEE802.3at – 35W IEEE802.3bt class 8 – 90W (Total power is 90W) MSTRONIC CO., LTD. - Page 10 DC10V~DC36V power supply Power efficiency 85% at full load(@ 24V typical,DC56V output, non-isolation power) Power consumption less than 5W when without PD loading Operating temperature -20℃~ +70℃ Operation humidity 90% relative humidity, non-condensing Storage temperature -40℃~+85℃ Dimension 40mm(H)x116mm(W)x90mm(D) MSTRONIC CO., LTD.
