MSTRONIC PSE-SW8G44D0++ User Manual

8 port poe switch

Advertisement

Quick Links

PSE-SW8G44D0++
8 Port PoE Switch
USER'S MANUAL
MSTRONIC CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSE-SW8G44D0++ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MSTRONIC PSE-SW8G44D0++

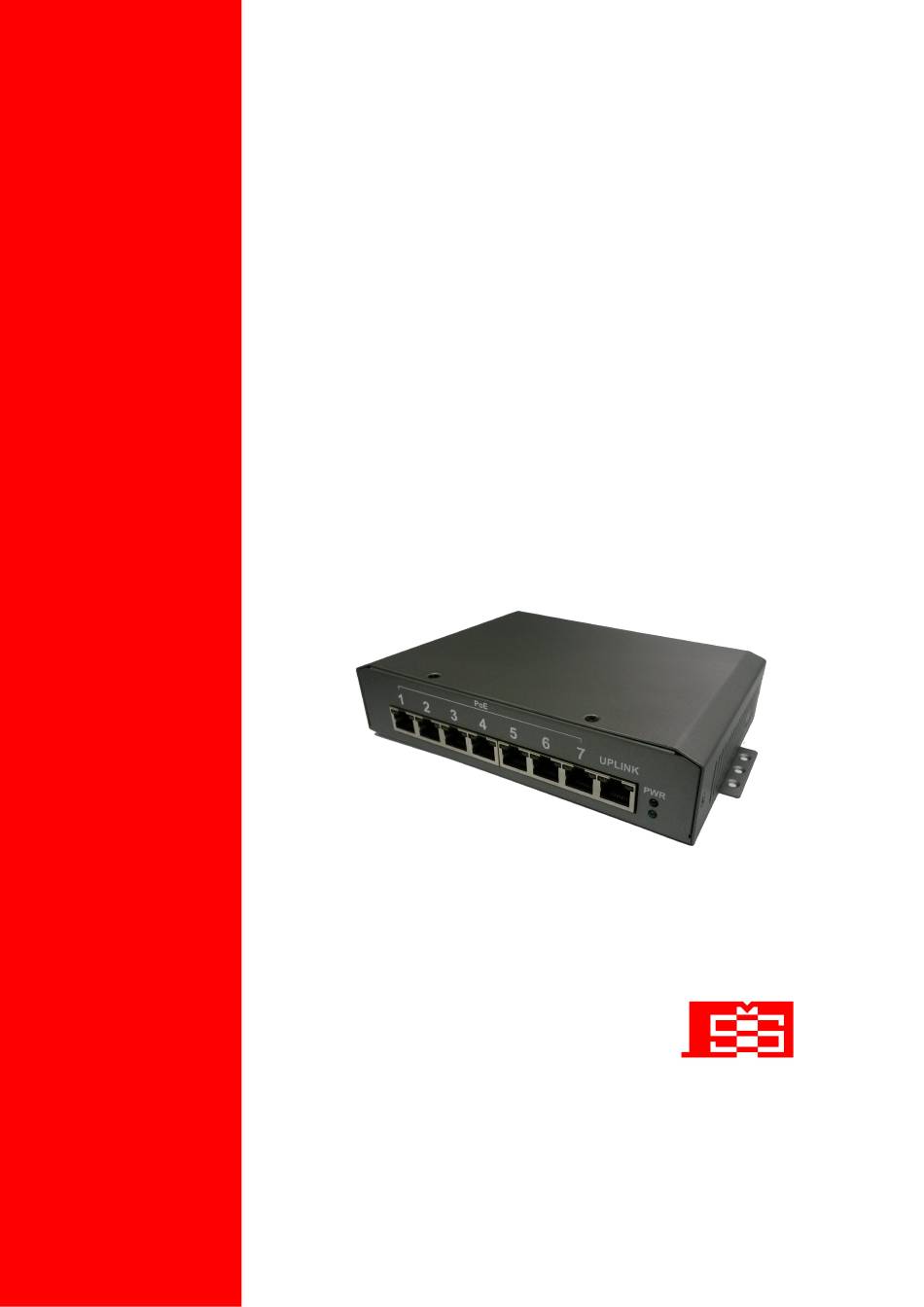

  • Page 1 PSE-SW8G44D0++ 8 Port PoE Switch USER’S MANUAL MSTRONIC CO., LTD.
  • Page 2: General Information

    LED indicator. Front panel detail *POWER LED STATUS Description Power Green LED ON when power input (DC IN on rear panel or Port 8 (UPLINK) on front panel) has valid power supplied. MSTRONIC CO., LTD.
  • Page 3 *PoE LED (the left indicator on RJ45) P1~P7 Yellow A valid Powered Device (PD) is detected and delivering power on this port. No PD is detected on this port. Yellow PSE-SW8G44D0++ unused UPLINK (P8) No power is detected on this port. MSTRONIC CO., LTD.
  • Page 4: Power Wiring

    * Data pair B plus V- on line 3 and 6 * Data pair C plus V+ on line 4 and 5 * Data pair D plus V- on line 7 and 8 The terminal block on the rear panel should be wired as detailed below: MSTRONIC CO., LTD.
  • Page 5: Ethernet Port Wiring

    Straight-through Cabling Pin 1 Pin 1 Pin 2 Pin 2 Pin 3 Pin 3 Pin 6 Pin 6 Pin 4 Pin 4 Pin 5 Pin 5 Pin 7 Pin 7 Pin 8 Pin 8 MSTRONIC CO., LTD.
  • Page 6 If a port LED is off, go back and check for connectivity problems between that port and the network device connected. The maximum cable length for 10/100/1000BaseT with Cat 5 twisted pair cables is typically 100m (328 ft.). MSTRONIC CO., LTD.
  • Page 7: Pd Port Wiring

    The yellow PoE LED will light up when the cable is correctly connected. Refer to the LED Indicator section for descriptions of each LED indicator. If a port LED is off, go back and check for connectivity problems between that port and the network device connected. MSTRONIC CO., LTD.
  • Page 8: Technical Specifications

    D plus V-(7,8) Maximum PoE power Port 1-7: IEEE802.3af – 16.8W IEEE802.3at – 35W LTPoE++ – 70W PD PSE disconnect mode DC disconnect PoE auto detection IEEE802.3af , IEEE802.3at (2 event classification signaling) & LTPoE++ MSTRONIC CO., LTD.
  • Page 9 DC power supply on rear terminal IEEE802.3af 44V~57V IEEE802.3at 51V~57V LTPoE++ 55V~57V Power consumption less 5W without PD loading Power efficiency 83% at full load Operating temperature 0℃~ 70℃ Operation humidity 90% relative humidity, non-condensing Storage temperature -30℃~+85℃ Dimensions 40mm(H)x190mm(W)x119mm(D), MSTRONIC CO., LTD.
