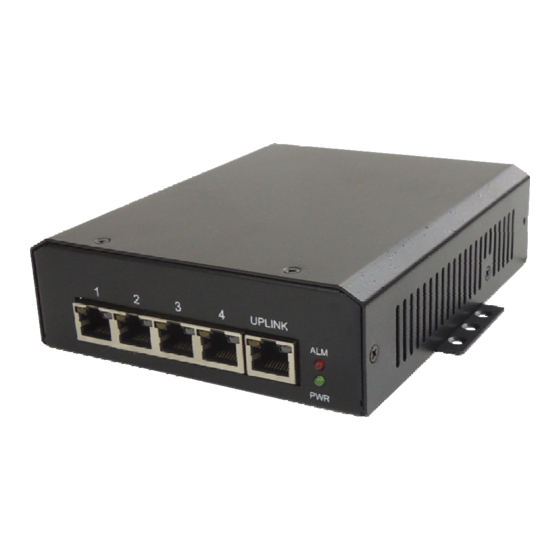

- Page 1 PSE-SW5G15B4HM 5 Port PoE Switch & Extender (Repeat Ethernet and PoE) USER’S MANUAL MSTRONIC CO., LTD.
-
Page 2: General Information
LED indicator. Front panel detail *POWER LED STATUS Description Power Green LED ON when power input (DC IN on rear panel or UPLINK on front panel) has valid power supplied. No power supplied. MSTRONIC CO., LTD. - Page 3 Powered from another PoE, UPLINK (P5) Powered via all 4 pairs. PoE In Yellow Powered via 2 pairs, data pairs (pin 1,2,3,6) or Blinking spare pairs (pin 4,5,7,8) are all acceptable. No power is detected on this port. MSTRONIC CO., LTD.
- Page 4 * Data pair C plus V+/V- on line 4 and 5 * Data pair D plus V-/V+ on line 7 and 8 The terminal block on the rear panel should be wired as detailed below, if the input voltage is in MSTRONIC CO., LTD.
- Page 5 4 pairs or 2 pairs PoE. The following tables describe the wiring diagram of straight-through and crossover cabling. The crossover cables simply cross-connect the transmit lines at each end to the receive lines at the opposite end. MSTRONIC CO., LTD.
- Page 6 If a port LED is off, go back and check for connectivity problems between that port and the network device connected. The maximum cable length for 10/100/1000BaseT with Cat 5 twisted pair cables is typically 100m (328 ft.). MSTRONIC CO., LTD.
- Page 7 DC power to the PD. The yellow PoE LED will light up when the cable is correctly connected. Refer to the LED Indicator section for descriptions of each LED indicator. If a port LED is off, go back and check for connectivity problems between that port and the network device connected. MSTRONIC CO., LTD.
- Page 8 IEEE 802.3af/at standard in the network. The PoE Switch can be installed as a PoE+Ethernet repeater to extend Ethernet to 200 meters. The following figure is an example of a network application for the PoE Extender. MSTRONIC CO., LTD.
-
Page 9: Technical Specifications
Pin assignment: data pair A (1,2), data pair B (3,6), data pair C plus V+(4,5), data pair D plus V-(7,8) Port 5, 4 pairs PD Maximum PoE power Port 1-4: IEEE802.3at – 35W/port Total power – 140W MSTRONIC CO., LTD. - Page 10 5W when without PD loading Input PSE-SW5G15B4HM 0.23A/3.9W 0.17A/2.7W Power efficiency 85% at full load (@24V typical) Operating temperature -40℃~ +70℃ Operation humidity 90% relative humidity, non-condensing with conformal coating Storage temperature -40℃~+85℃ Dimension 40mm(H)x139mm(W)x147mm(D) DIN RAIL Mountable MSTRONIC CO., LTD.
- Page 11 User’s Manual PSE-SW5G15B4HM Surge Protection on data pairs MSTRONIC CO., LTD.
