- Page 1 MSE PSE-SSW5 Series 5 port PoE Endspan (Switch) USER’S MANUAL MSTRONIC CO., LTD...
-
Page 2: Table Of Contents
MSE PSE-SSW5 Series User’s Manual 1. General Information.............. 2. Hardware Description............LED Indicators..................Power Wiring ..................Ethernet Port Wiring................PD Port Wiring..................3. Technical Specification............MSTRONIC CO., LTD. -
Page 3: General Information

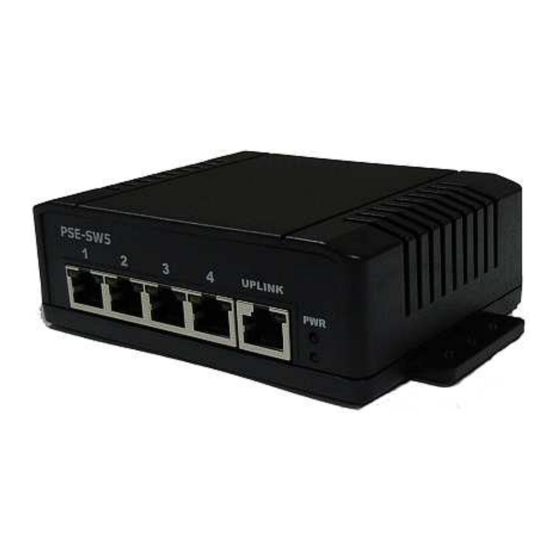

MSE PSE-SSW5 Series User’s Manual 1. General Information The PoE (Power Over Ethernet) Switch support four ports 10/100 TX ports with PoE injector plus one 10/100TX up-link port. The switch provide Power over Ethernet functions to deliver 35Watts power budget to powered device(PD), which is in compliance with IEEE802.3af/at standard to deliver both of Ethernet data and DC power through the traditional UTP or STP cable to the PD. - Page 4 MSE PSE-SSW5 Series User’s Manual *PWR Indicator STATUS Description Power Green LED ON if power input has valid power apply. LED ON if the following condition happens. *Power input under voltage (Vin<10V) *Power input over voltage (Vin>59V) *PoE over current (2A/per port) the indicator is used on current model only.
-
Page 5: Power Wiring
MSE PSE-SSW5 Series User’s Manual *PoE LED(the left indicator on RJ45) STATUS Description P1~P4 Yellow LED ON if with PoE output. No PoE output. *Power wiring The PoE switch family includes 2 models, be used for different ranges of input voltage as, Current model (2A maximum) ……….full range voltage (10 to 57VDC) (PSE-SSW5S) -
Page 6: Ethernet Port Wiring
MSE PSE-SSW5 Series User’s Manual Rear panel terminal block wiring detail: You can use the PSE-SSW5 series with our adaptor products as detailed below: (OPTION) MS-A150-18-1 MS-A150-24-1 MS-A150-48-1 Maximum output 18VDC/7.5A 24VDC/6.25A 48VDC/3.125A PSE-SSW5S Related model PSE-SSW5S PSE-SSW5S PSE-SSW5D *Ethernet Port Wiring The PoE Switch supports Port 1 to Port 5 with automatic MDI/MDI-X crossover, autosense of the speed and duplex for 10Base-T or 100Base-TX connections. - Page 7 MSE PSE-SSW5 Series User’s Manual Straight-through Cabling Pin 1 Pin 1 Pin2 Pin 2 Pin3 Pin 3 Pin6 Pin6 Cross-over Cabling Pin 1 Pin 3 Pin 2 Pin 6 Pin 3 Pin 1 Pin 6 Pin 2 Connect an Ethernet cable into any switch port and connect the other side to your attached device.
-
Page 8: Pd Port Wiring
MSE PSE-SSW5 Series User’s Manual *PD Port Wiring Port 1 to 4 provide PoE inject function with maximum 35W(or 2A max.) ability to power up the powered device use the straight-through or cross-over Ethernet cable. The PoE switch follows the IEEE802.3af Alternative B mode connector assignment. The following table shows pin assignment of alternative A and B for the Power Source Equipment. - Page 9 MSE PSE-SSW5 Series User’s Manual Flow control IEEE802.3x(full-duplex),back pressure(half-duplex) Data transmission rate 148800pps for 100base-T, 14880pps for 10base-T Address table 1K MAC address table, self-learning Connect RJ-45 PoE port Port 1-4, auto power management Pin assignment: TX(1,2), RX(3,6), V+(4,5), V-(7,8) Maximum PoE power IEEE802.3af –...
- Page 10 MSE PSE-SSW5 Series User’s Manual Operating temperature -40℃~ 85℃ Operation humidity 90% relative humidity, non-condensing Storage temperature -55℃~+105℃ Dimension 40mm(H)x116mm(W)x90mm(D) (main body) MSTRONIC CO., LTD.
