CHAPTER 5 PARAMETERS

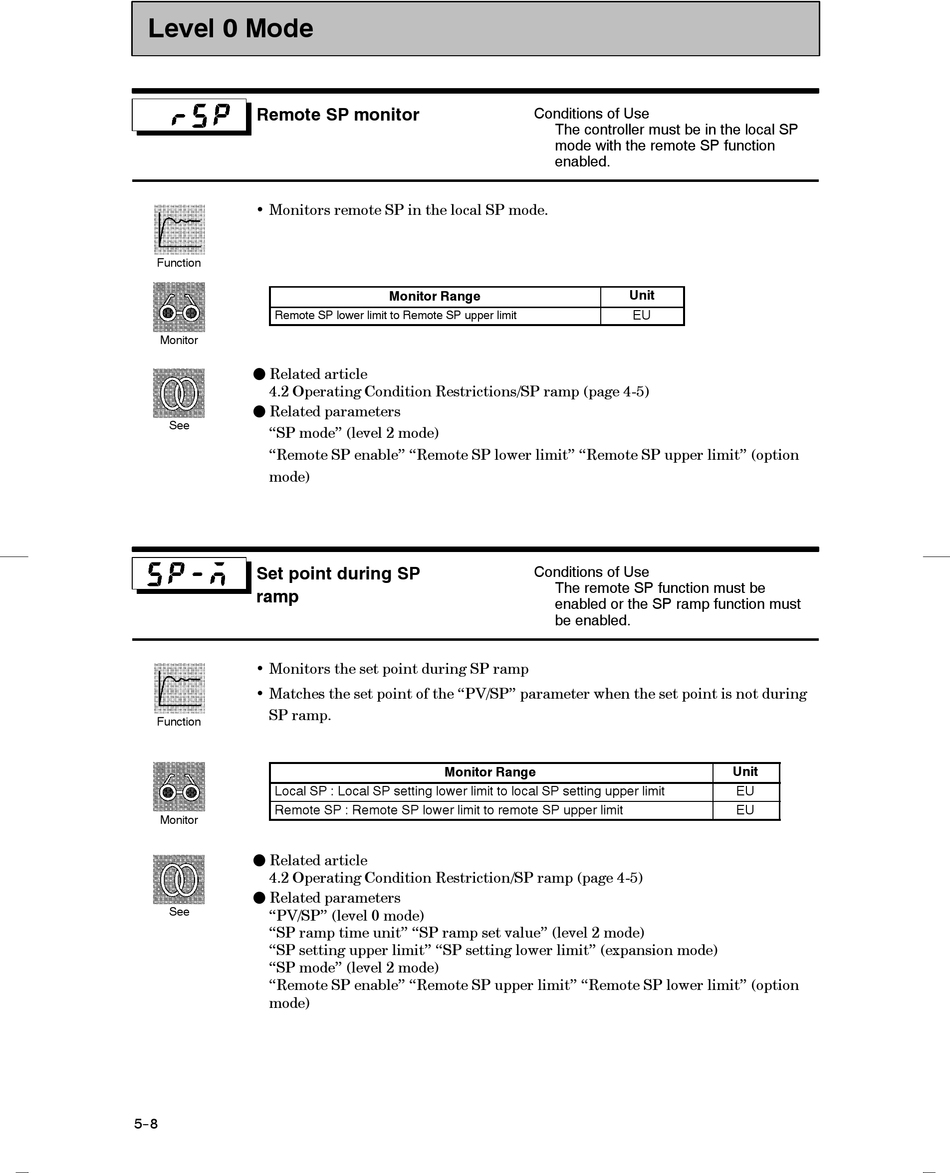

Level 0 Mode

Remote SP monitor

• Monitors remote SP in the local SP mode.
Function
Remote SP lower limit to Remote SP upper limit
Monitor
F Related article
4.2 Operating Condition Restrictions/SP ramp (page 4-5)
F Related parameters
See
"SP mode" (level 2 mode)
"Remote SP enable" "Remote SP lower limit" "Remote SP upper limit" (option
mode)
Set point during SP
ramp
• Monitors the set point during SP ramp
• Matches the set point of the "PV/SP" parameter when the set point is not during

SP ramp.

Function
Local SP : Local SP setting lower limit to local SP setting upper limit
Remote SP : Remote SP lower limit to remote SP upper limit
Monitor
F Related article
4.2 Operating Condition Restriction/SP ramp (page 4-5)
F Related parameters
See
"PV/SP" (level 0 mode)
"SP ramp time unit" "SP ramp set value" (level 2 mode)
"SP setting upper limit" "SP setting lower limit" (expansion mode)
"SP mode" (level 2 mode)
"Remote SP enable" "Remote SP upper limit" "Remote SP lower limit" (option
mode)
5--8
Monitor Range
Monitor Range
Conditions of Use
The controller must be in the local SP
mode with the remote SP function
enabled.
Unit
EU
Conditions of Use
The remote SP function must be
enabled or the SP ramp function must
be enabled.
Unit
EU
EU
