CHAPTER 2 PREPARATIONS

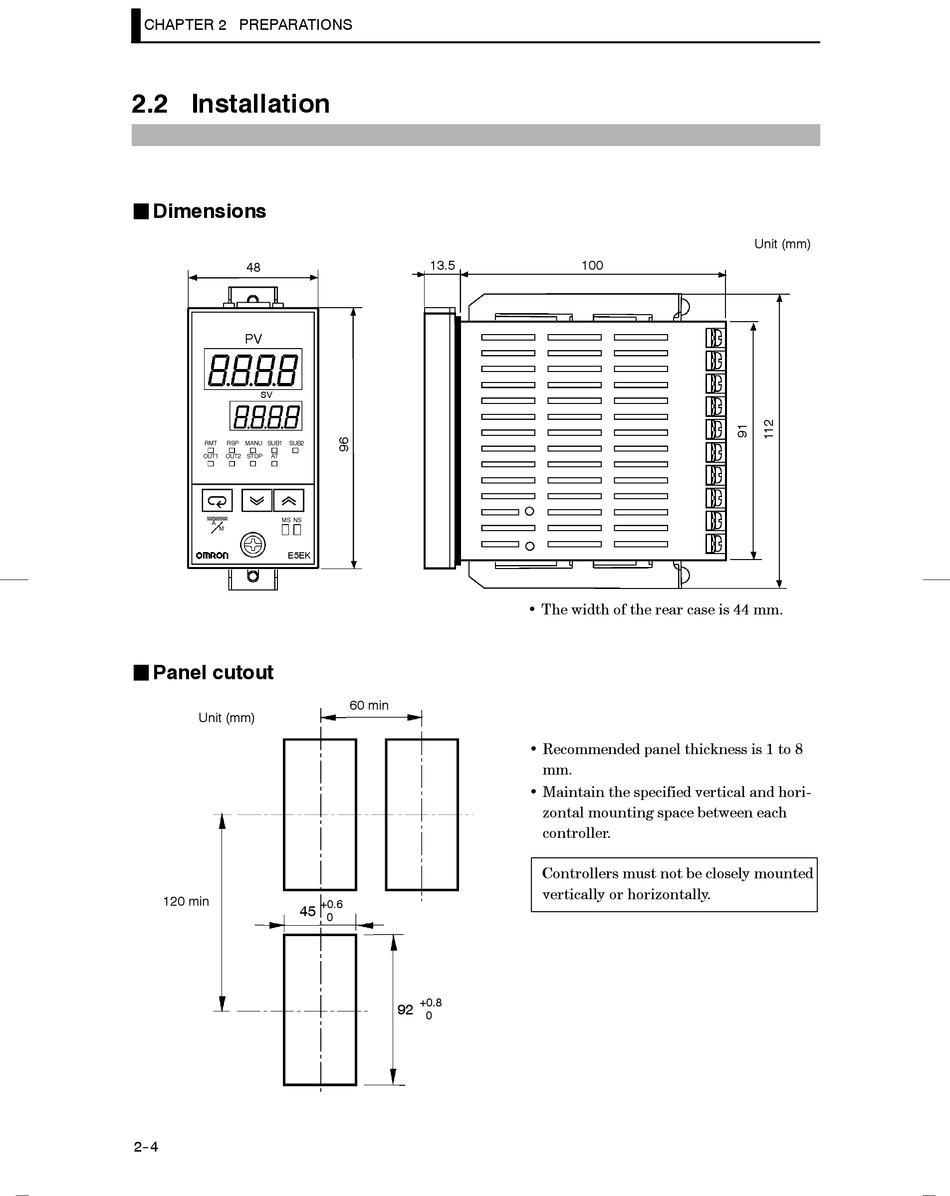

2.2 Installation

J Dimensions
48
PV
SV
RMT RSP MANU SUB1
OUT1 OUT2 STOP AT
MS NS
A
M
J Panel cutout
Unit (mm)
120 min
2--4
13.5
SUB2
E5EK
60 min
+0.6
45
0
+0.8
92
0
100
• The width of the rear case is 44 mm.
• Recommended panel thickness is 1 to 8
mm.
• Maintain the specified vertical and hori-
zontal mounting space between each
controller.
Controllers must not be closely mounted
vertically or horizontally.
Unit (mm)
