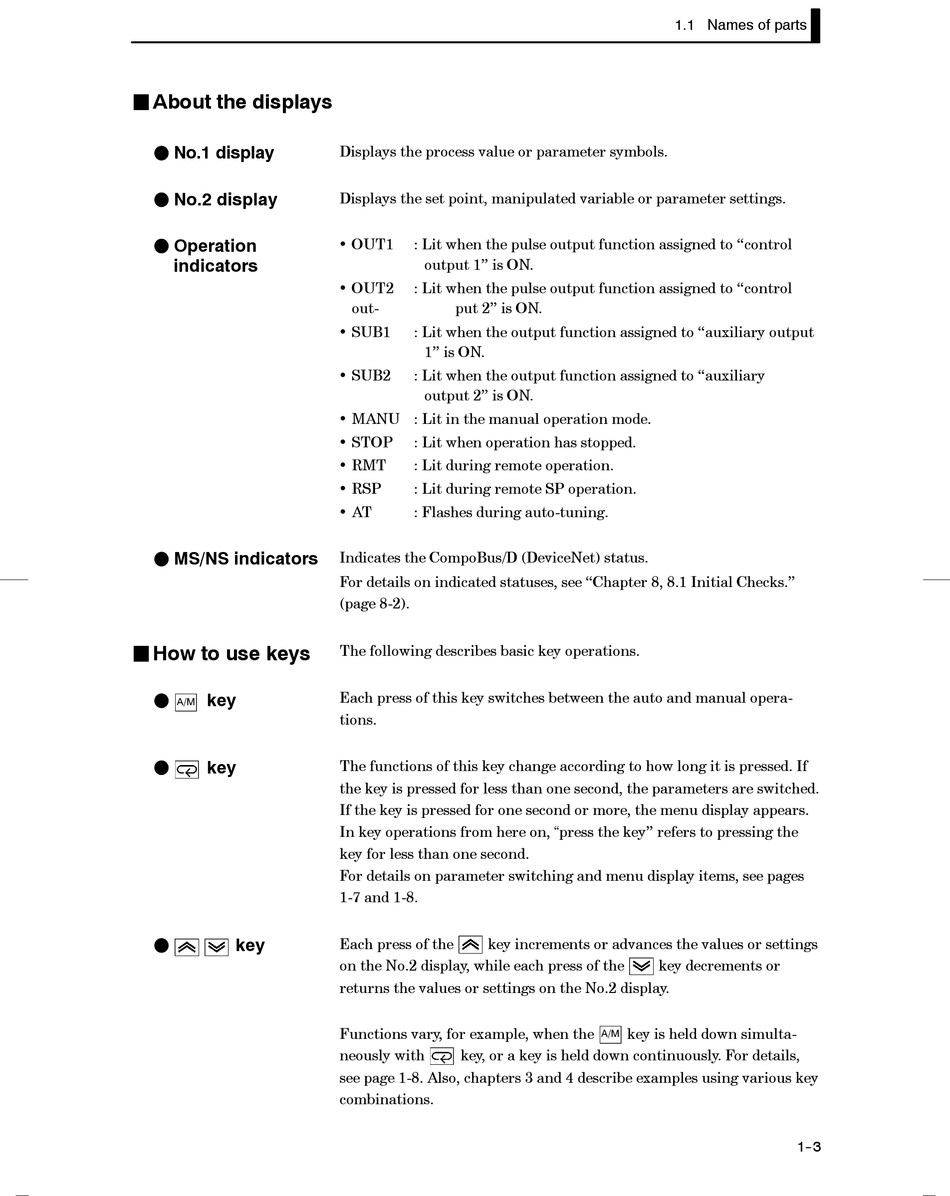

J About the displays
F No.1 display
F No.2 display
F Operation
indicators
F MS/NS indicators
J How to use keys
key
F
A/M
key
F
key
F
Displays the process value or parameter symbols.
Displays the set point, manipulated variable or parameter settings.
• OUT1 : Lit when the pulse output function assigned to "control
output 1" is ON.
• OUT2 : Lit when the pulse output function assigned to "control
out- put 2" is ON.
• SUB1 : Lit when the output function assigned to "auxiliary output
1" is ON.
• SUB2 : Lit when the output function assigned to "auxiliary
output 2" is ON.
• MANU : Lit in the manual operation mode.
• STOP : Lit when operation has stopped.
• RMT : Lit during remote operation.
• RSP : Lit during remote SP operation.
• AT : Flashes during auto-tuning.
Indicates the CompoBus/D (DeviceNet) status.
For details on indicated statuses, see "Chapter 8, 8.1 Initial Checks."
(page 8-2).
The following describes basic key operations.
Each press of this key switches between the auto and manual opera-
tions.
The functions of this key change according to how long it is pressed. If
the key is pressed for less than one second, the parameters are switched.
If the key is pressed for one second or more, the menu display appears.
In key operations from here on, "press the key" refers to pressing the
key for less than one second.
For details on parameter switching and menu display items, see pages
1-7 and 1-8.
Each press of the key increments or advances the values or settings
on the No.2 display, while each press of the
returns the values or settings on the No.2 display.
Functions vary, for example, when the
neously with key, or a key is held down continuously. For details,
see page 1-8. Also, chapters 3 and 4 describe examples using various key
combinations.
