CHAPTER 3 BASIC OPERATION

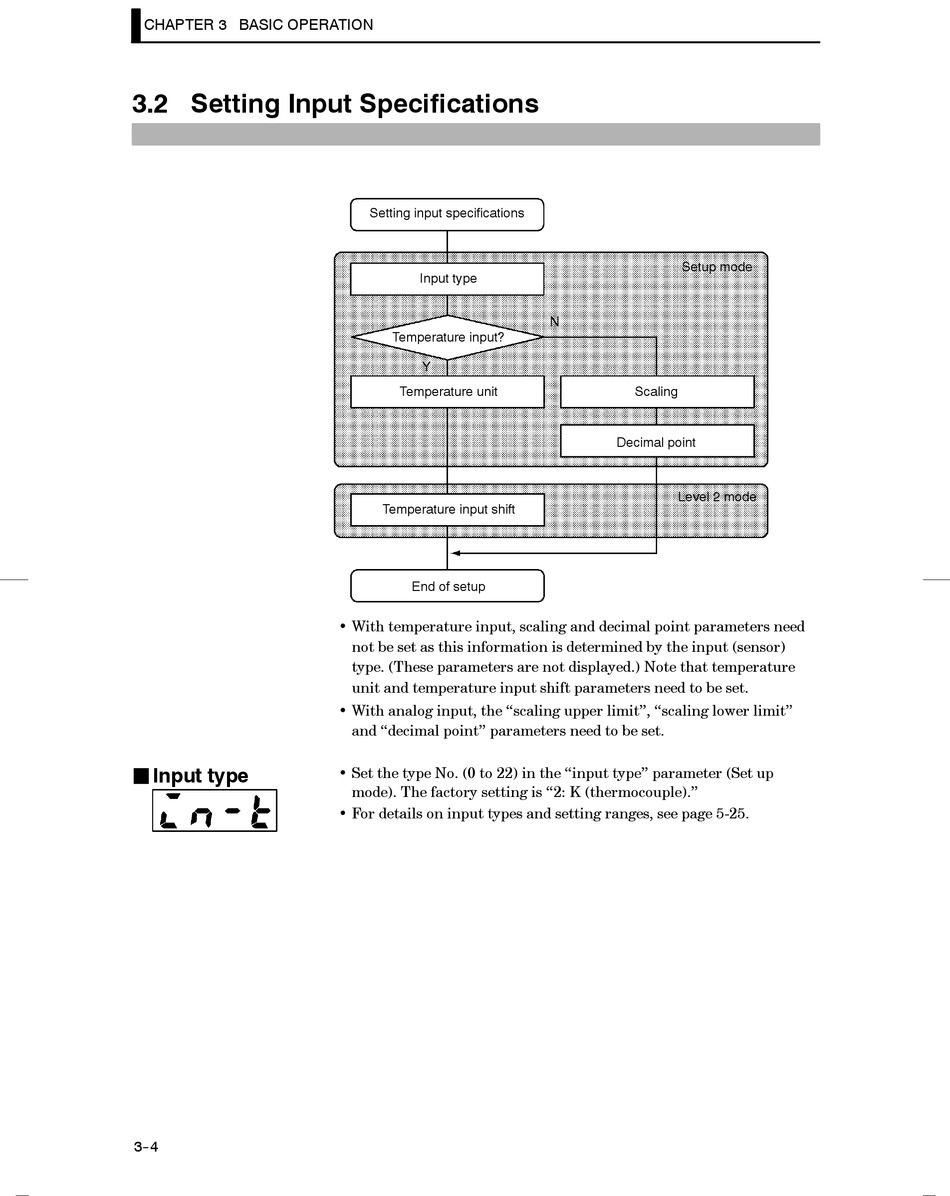

3.2 Setting Input Specifications

J Input type
3--4
Setting input specifications

Input type

Temperature input?

Y
Temperature unit
Temperature input shift
End of setup
• With temperature input, scaling and decimal point parameters need
not be set as this information is determined by the input (sensor)
type. (These parameters are not displayed.) Note that temperature
unit and temperature input shift parameters need to be set.
• With analog input, the "scaling upper limit", "scaling lower limit"
and "decimal point" parameters need to be set.
• Set the type No. (0 to 22) in the "input type" parameter (Set up
mode). The factory setting is "2: K (thermocouple)."
• For details on input types and setting ranges, see page 5-25.
Setup mode
N
Scaling
Decimal point
Level 2 mode
