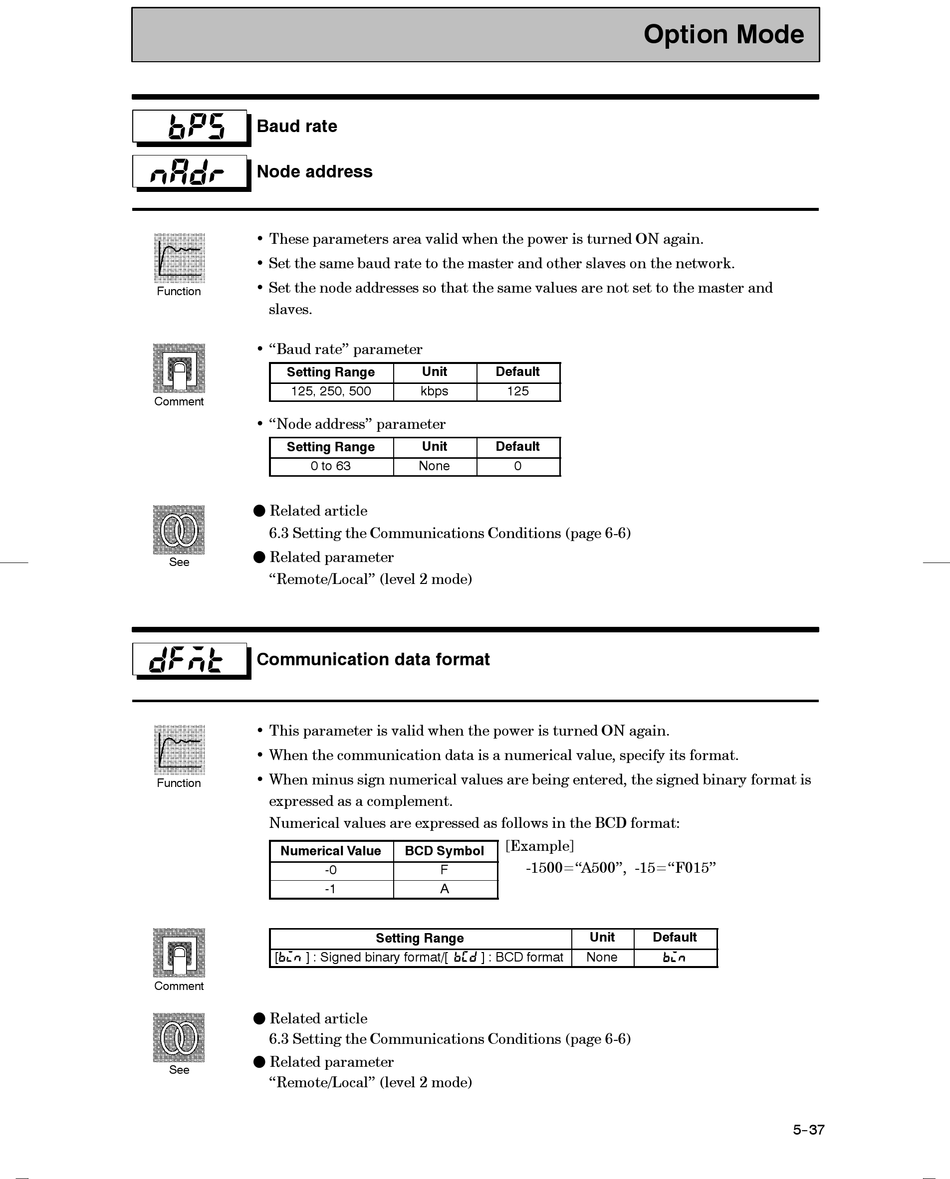

Setting The Communications Conditions - Omron E5EK DEVICENET User Manual

Baud rate
Node address
• These parameters area valid when the power is turned ON again.
• Set the same baud rate to the master and other slaves on the network.
• Set the node addresses so that the same values are not set to the master and
Function
slaves.
• "Baud rate" parameter
Setting Range
125, 250, 500
Comment
• "Node address" parameter
Setting Range
F Related article
6.3 Setting the Communications Conditions (page 6-6)
F Related parameter
See
"Remote/Local" (level 2 mode)
Communication data format
• This parameter is valid when the power is turned ON again.
• When the communication data is a numerical value, specify its format.
• When minus sign numerical values are being entered, the signed binary format is
Function
expressed as a complement.
Numerical values are expressed as follows in the BCD format:
Numerical Value
[
Comment
F Related article
6.3 Setting the Communications Conditions (page 6-6)
F Related parameter
See
"Remote/Local" (level 2 mode)
Unit
kbps
Unit
0 to 63 None
BCD Symbol
-0 F
-1 A
Setting Range
] : Signed binary format/[
Default
125
Default
0
[Example]
-1500="A500", -15="F015"
Unit
] : BCD format None
Option Mode
Default
5--37
