CHAPTER 3 BASIC OPERATION

3.1 Convention Used in this Chapter

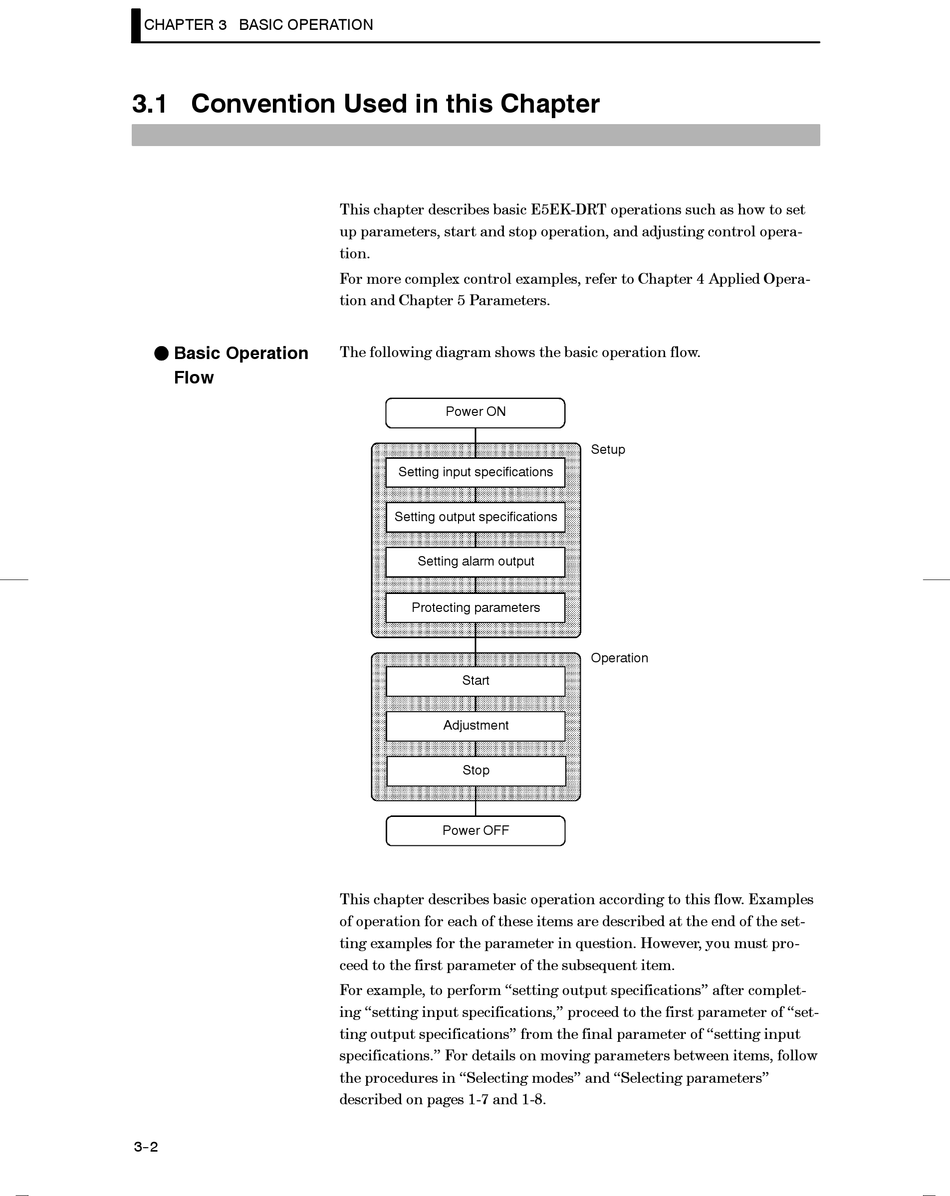

F Basic Operation
Flow
3--2
This chapter describes basic E5EK-DRT operations such as how to set
up parameters, start and stop operation, and adjusting control opera-
tion.
For more complex control examples, refer to Chapter 4 Applied Opera-
tion and Chapter 5 Parameters.
The following diagram shows the basic operation flow.
Power ON
Setting input specifications
Setting output specifications
Setting alarm output
Protecting parameters
Start
Adjustment
Stop
Power OFF
This chapter describes basic operation according to this flow. Examples
of operation for each of these items are described at the end of the set-
ting examples for the parameter in question. However, you must pro-
ceed to the first parameter of the subsequent item.
For example, to perform "setting output specifications" after complet-
ing "setting input specifications," proceed to the first parameter of "set-
ting output specifications" from the final parameter of "setting input
specifications." For details on moving parameters between items, follow
the procedures in "Selecting modes" and "Selecting parameters"
described on pages 1-7 and 1-8.
Setup
Operation
