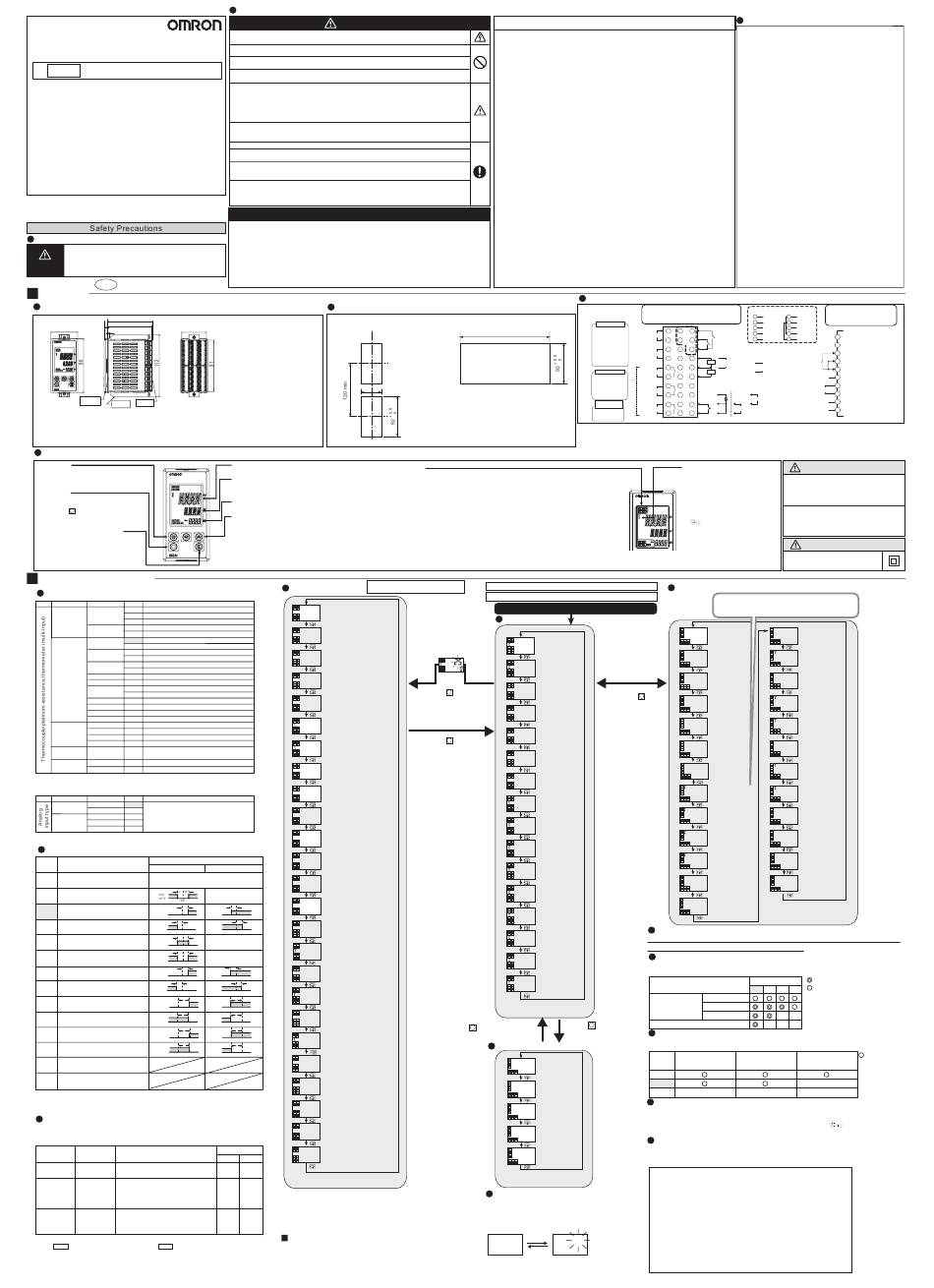

Omron E5EN Instruction Manual

E5EN
Digital Controller
EN
INSTRUCTION MANUAL
Thank you for purchasing the OMRON E5EN Digital Controller.
This manual describes the functions, performance, and
application methods needed for optimum use of the product.
Please observe the following items when using the product.
• This product is designed for use by qualified personnel with a
knowledge of electrical systems.
• Before using the product, thoroughly read and understand this
manual to ensure correct use.
• Keep this manual in a safe location so that it is available for
reference whenever required.
OMRON Corporation
©All Rights Reserved
For detailed operating instructions, please refer to the E5CN/E5AN/E5EN/E5GN
Digital Controllers User's Manual Basic Type (Cat. No. H156).
Significance of WARNINGs and CAUTIONs
Key to Warning Symbols
Indicates a potentially hazardous situation which, if
not avoided, is likely to result in minor or moderate
injury or property damage. Read this manual
CAUTION
carefully before using the product.
2111331-4A
EN1
Wiring
Dimensions
79.2
Dimensions (mm)
6 78
48
2 44
Watertight
Terminal
packing Mounting
cover
bracket
* The internal mechanisms can be drawn out for maintenance without removing terminal wiring.
* Do not remove the terminal block. Doing so may result in failure or malfunction.
* A Setup Tool port is provided on the bottom of the product. Use this port to connect a personal computer to the
product when using the Setup Tool. E58-CIFQ1 USB-Serial Conversion Cable is required to connect the personal
computer to the product. (Do not use the product with the USB-Serial Conversion Cable left permanently
connected.)
Refer to the instruction manual provided with the USB-Serial Conversion Cable for details on connection methods.
Names of parts on front panel
• Mode key
Press this key to change the contents of
the display.
Press this button for 1 s or longer for
reverse scroll.
• Level key
Use this key to change levels:
• Press the key and the M key
together for at least 3 seconds to switch
to protect level.
• Function key/Auto/Manual key
Press this function key to operate the
function set with the PF Setting.
Operation menu
Input Type
Setting range
Input type Input Setting
0 -200 to 850 (°C) /-300 to 1500 (°F)
Platinum
Pt100 1 -199.9 to 500.0 (°C) /-199.9 to 900.0 (°F)
resistance
2 0.0 to 100.0 (°C) /0.0 to 210.0 (°F)
thermometer
3 -199.9 to 500.0 (°C) /-199.9 to 900.0 (°F)
JPt100
4 /0.0 to 210.0 (°F)
0.0 to 100.0 (°C)
K 5 -200 to 1300 (°C) /-300 to 2300 (°F)
6 -20.0 to 500.0 (°C) /0.0 to 900.0 (°F)
Thermocouple 7 -100 to 850 (°C) /-100 to 1500 (°F)
J
8 -20.0 to 400.0 (°C) /0.0 to 750.0 (°F)
9 -200 to 400 (°C) /-300 to 700 (°F)
T
10 -199.9 to 400.0 (°C) /-199.9 to 700.0 (°F)
E 11 -200 to 600 (°C) /-300 to 1100 (°F)
12 -100 to 850 (°C) /-100 to 1500 (°F)
L
13 -200 to 400 (°C) /-300 to 700 (°F)
U
14 -199.9 to 400.0 (°C) /-199.9 to 700.0 (°F)
15 /-300 to 2300 (°F)
N -200 to 1300 (°C)
R 16 0 to 1700 (°C) /0 to 3000 (°F)
S 17 0 to 1700 (°C) /0 to 3000 (°F)
18 100 to 1800 (°C) /300 to 3200 (°F)
B
10 -70 19 0 to 90 (°C) /0 to 190 (°F)
Infrared
20 0 to 120 (°C) /0 to 240 (°F)
Thermosensor 60 -120°C
21 /0 to 320 (°F)
ES1B 115 -165°C 0 to 165 (°C)
140 -260°C 22 0 to 260 (°C) /0 to 500 (°F)
23
Use the following ranges for scaling:
Analog input 0 to 50mV
-1999 to 9999,-199.9 to 999.9
24 0 to 2300 (°C) /0 to 3200 (°F)
W
Thermocouple
25
PL II 0 to 1300 (°C) /0 to 2300 (°F)
*The default is"5".
*s. e rr will be displayed when a platinum resistance thermometer is mistakenly connected while input
type is not set for it. To clear the s. e rr display, correct the wiring and cycle the power supply.
Setting range
Input type Input Setting
4 to 20mA 0
Current input
Use the following ranges for scaling: -1999
0 to 20mA 1
to 9999, -199.9 to 999.9, -19.99 to 99.99,
2
1 to 5V
-1.999 to 9.999
Voltage input 0 to 5V 3
0 to 10V 4
" "
• The default is 0 .
Alarms
Alarm output function
Setting Alarm type
Positive alarm value (X)
No alarm function Output off
0
1 Deviation upper/lower limit
*1
X
ON
2 Deviation upper limit
OFF
SP
X
ON
Deviation lower limit
3
OFF
SP
L H
*1
4 Deviation upper/lower range ON
OFF
SP
L H
Deviation upper/lower limit
ON
*1
5
standby sequence ON OFF
SP
X
Deviation upper limit
6 ON
standby sequence ON
OFF
SP
X
7 Deviation lower limit
ON
standby sequence ON OFF
SP
X
ON
8 Absolute value upper limit
OFF
0
X
ON
9
Absolute value lower limit
OFF
0
Absolute value upper limit X
ON
10
standby sequence ON
OFF
0
X
Absolute value lower limit
ON
11
standby sequence ON
OFF
0
12
LBA (only for alarm 1)
13
PV Change Rate Alarm
*1: Upper and lower limits can be set for parameters 1, 4 and 5 to provide for
different types of alarm. These are indicated by the letter "L" and "H".
• The default alarm type is "2"
Error display (troubleshooting)
When an error has occurred, the No.1 display shows the error code. Take
necessary measure according to the error code, referring the table below.
No.1 display Meaning Action
Check the setting of the Input Type parameter,
s.err Input error
(S. Err) check the input wiring, and check for broken or
*2
shorts in the temperature sensor.
After the correction of A/D converter error, turn the
power OFF then back ON again. If the display
remains the same, the controller must be repaired.
e333
(E333) A/D converter error
If the display is restored to normal, then a
*2 probable cause can be external noise affecting the
control system. Check for external noise.
Turn the power OFF then back ON again. If the
display remains the same, the controller must be
Memory error
e111 repaired. If the display is restored to normal, then
(E111)
a probable cause can be external noise affecting
the control system. Check for external noise.
If the input value exceeds the display limit (-1999 to 9999), though it is within the control
range, [[[[ will be displayed under -1999 and ]]]] above 9999. Under these conditions,
control output and alarm output will operate normally.Refer to E5CN/E5AN/E5EN/E5GN
Digital Controllers User's Manual Basic Type (Cat. No. H156) for details of control range.
*2: Error shown only for "Process value / Set point". Not shown for other status.
Warning Symbols
CAUTION
Do not touch the terminals while power is being supplied.
Doing so may occasionally result in minor injury due to electric shock.
Do not allow pieces of metal, wire clippings, or fine metallic shavings or filings from installation to
enter the product. Doing so may occasionally result in electric shock, fire, or malfunction.
Do not use the product where subject to flammable or explosive gas. Otherwise, minor injury from
explosion may occasionally occur.
Never disassemble, modify, or repair the product or touch any of the internal parts. Minor electric
shock, fire, or malfunction may occasionally occur.
CAUTION - Risk of Fire and Electric Shock
a) This product is UL listed as Open Type Process Control Equipment. It must be mounted in an enclosure that
does not allow fire to escape externally.
b) More than one disconnect switch may be required to de-energize the equipment before servicing.
c) Signal inputs are SELV, limited energy.
d) Caution: To reduce the risk of fire or electric shock, do not interconnect the outputs of different Class 2 circuits.
If the output relays are used past their life expectancy, contact fusing or burning may occasionally occur. Always
consider the application conditions and use the output relays within their rated load and electrical life expectancy.
The life expectancy of output relays varies considerably with the output load and switching conditions.
Tighten the terminal screws to between 0.74 and 0.90 N•m. Loose screws may occasionally result in fire.
Set the parameters of the product so that they are suitable for the system being controlled. If they are not suitable,
unexpected operation may occasionally result in property damage or accidents.
A malfunction in the Temperature Controller may occasionally make control operations impossible or prevent
alarm outputs, resulting in property damage. To maintain safety in the event of malfunction of the Digital Controller,
take appropriate safety measures, such as installing a monitoring device on a separate line.
A semiconductor is used in the output section of long-life relays. If excessive noise or surge is impressed on the
output terminals, a short-circuit failure is likely to occur. If the output remains shorted, fire will occur due to
overheating of the heater or other cause.Take measures in the overall system to prevent excessive temperature
increase and to prevent fire from spreading.
Suitability for Use
OMRON shall not be responsible for conformity with any standards, codes, or regulations that
apply to the combination of the products in the customer's application or use of the product.
Take all necessary steps to determine the suitability of the product for the systems, machines,
and equipment with which it will be used.
Know and observe all prohibitions of use applicable to this product.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE
OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN
DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT IS PROPERLY
RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT
OR SYSTEM.See also Product catalog for Warranty and Limitation of Liability.
Installation
In the pack: Individual mounting (mm)
• Main unit
• Watertight packing
• Two mounting brackets
• Instruction manual
• Terminal cover
(Provided only for models
with "-500" suffix.)
Solderless terminal size: M3.5
Terminal cover:
(Model: E53-COV16)
+ 0.6
45
USB-Serial Conversion Cable
0
(Sold Separately)
(E58-CIFQ1)
• No.1 display
Operation indicators
Process value or set data symbol
• SUB1: Auxiliary output 1 indicator
• No.2 display
Lit when the function assigned to auxiliary
Set point, set data read-out value or changed
output 1 is ON.
input value
• SUB2: Auxiliary output 2 indicator
Lit when the function assigned to auxiliary
• No. 3 display
output 2 is ON.
MV, Soak Time Remain, and Multi-SP.
• SUB3: Auxiliary output 3 indicator
• Up and Down keys
Lit when the function assigned to auxiliary
Use the keys to change the values displayed on
output 3 is ON.
the No.2 display.
• HA: Heater burnout alarm/Heater short
Each press of U key increments or advances the
alarm/Heater overcurrent alarm indicator
values displayed on the No.2 display.
Lit when a heater burnout alarm, heater
Each press of D key decrements or returns the
short alarm, or heater overcurrent alarm
has occurred.
values displayed on the No.2 display.
Operation stopped.
Initial Setting Level
(Control/alarm are both stopped.)
in-t
3
Input Type *
5
in-h
Scaling Upper Limit
*6
(only when setting analog input)
100
in-l
Scaling Lower Limit
*6
(only when setting analog input)
0
dp
Decimal Point
*6
(only when setting analog input)
0
c
°C=
Temperature Unit
d-u
f
°F=
*6
(C stands for Celsius, F for Fahrenheit)
c
sl-h
SP Upper Limit
1300
sl-l
SP Lower Limit
-200
PID ON/OFF
cntl
onof
In ON/OFF control =
onof pid
In 2-PID control =
Standard or Heating/Cooling
stnd
s-hc Standard control =
h-c
Heating and cooling control =
stnd
(Select standard control or heating
and cooling control as required)
st ST (Self-tuning)
*6
on
ST ON =
on
off
ST OFF =
ptrn Program Pattern
off
cp
Control Period (Heating)
*6
(Unit: Seconds)
20
Negative alarm value (X)
c-cp
Control Period (Cooling)
*6
(Unit: Seconds)
20
Vary with "L", "H" values Direct/Reverse Operation
orev
or-r
In Reverse operation (Heating) =
X
ON or-r
or-d
In Direct operation (Cooling) =
OFF
SP
X
alt1
ON
*6
OFF Alarm 1 Type: Specified models only
SP
2
Vary with "L", "H" values
alh1
*6
Alarm 1 Hysteresis
0.2
Vary with "L", "H" values
X
alt2
ON
*6
Alarm 2 Type: Specified models only
OFF
2
SP
X
ON
OFF alh2
SP
*6
Alarm 2 Hysteresis
X 0.2
ON
OFF
0
alt3
X
ON *6
Alarm 3 Type: Specified models only
OFF 2
0
X
ON
alh3
OFF
*6
0 Alarm 3 Hysteresis
0.2
X
ON
OFF
0
tr-t
*6
Transfer Output Type
off
tr-h
*6
Transfer Output Upper Limit
100.0
tr-l
*6
Transfer Output Lower Limit
0.0
o1-t
*6
Linear Current Output
4-20
Status at error
sqr
Extraction of Square Root Enable
*6
(Only when analog input is set)
Control
off
Alarm
output
Operates
OFF as above the
upper limit.
Initial setting level enables users to specify their
preferred operating conditions (input type, alarm type,
control method, etc.)
*3: Refer to the adjoining tables for details of input types and alarm types.
OFF OFF
*4: Applicable only to models with alarm functions.
*5: Operation is stopped when moved to the initial setting level.
(control/alarm are both stopped.)
*6: The grayed-out setting items may not be displayed according to the models
OFF OFF
and setting.
*7: This function is supported only by models with heater burnout detection.
Other functions
For details about advanced function setting level, monitor/setting item level, or
manual control level, refer to E5CN/E5AN/E5EN/E5GN Digital Controllers User's
Manual Basic Type (Cat. No. H156).
For communications details, refer to E5CN/E5AN/E5EN/E5GN Digital Controllers
Communications Manual Basic Type (Cat. No,. H158).
Precautions for Safe Use
Be sure to observe the following precautions to prevent operation failure, malfunction, or adverse affects on the
performance and functions of the product. Not doing so may occasionally result in unexpected events. Use the
product within specifications.
(1) The product is designed for indoor use only. Do not use the product outdoors. Do not use or store the product
in any of the following locations.
• Places directly subject to heat radiated from heating equipment.
• Places subject to splashing liquid or oil atmosphere.
• Places subject to direct sunlight.
• Places subject to dust or corrosive gas (in particular, sulfide gas and ammonia gas).
• Places subject to intense temperature change.
• Places subject to icing and condensation.
• Places subject to vibration and large shocks.
(2) Use/store within the rated temperature and humidity ranges.
Provide forced-cooling if required.
(3) To allow heat to escape, do not block the area around the product.
Do not block the ventilation holes on the product.
(4) Be sure to wire properly with correct polarity of terminals.
(5) Use specified size (M3.5, width 7.2 mm or less) crimped terminals for wiring. To connect bare wires to the
terminal block, use copper braided or solid wires with a gage of AWG24 to AWG14 (equal to a cross-
sectional area of 0.205 to 2.081 mm
type, or two crimped terminals can be inserted into a single terminal.
(6) Do not wire the terminals which are not used.
(7) Allow as much space as possible between the controller and devices that generate a powerful high-frequency
or surge.
Separate the high-voltage or large-current power lines from other lines, and avoid parallel or common wiring
with the power lines when you are wiring to the terminals.
(8) Use this product within the rated load and power supply.
(9) Make sure that the rated voltage is attained within two seconds of turning ON the power using a switch or
relay contact. If the voltage is applied gradually, the power may not be reset or output malfunctions may occur.
(10) Make sure that the Digital Controller has 30 minutes or more to warm up after turning ON the power before
starting actual control operations to ensure the correct temperature display.
(11) When executing self-tuning, turn the load and the unit ON simultaneously, or turn the load ON before you turn
the controller ON.
(12) A switch or circuit breaker should be provided close to this unit.
The switch or circuit breaker should be within easy reach of the operator, and must be marked as a
disconnecting means for this unit.
(13) Always turn OFF the power supply before pulling out the interior of the product, and never touch nor apply
shock to the terminals or electronic components. When inserting the interior of the product, do not allow the
electronic components to touch the case.
(14) Do not use paint thinner or similar chemical to clean with. Use standard grade alcohol.
(15) Design system (control panel, etc) considering the 2 second of delay that the controller's output to be set after
power ON.
(16) The output may turn OFF when shifting to certain levels. Take this into consideration when performing control.
(17) The number of non-volatile memory write operations is limited. Therefore, use RAM write mode when
frequently overwriting data during communications or other operations.
(18) Refer to the instruction sheet for installing Option unit (E53-AKB/E53-EN01/E53-EN03).
(19) When disassembling the Temperature Controller for disposal, use suitable tools.
(20) Do not use the Temperature Controller if the front sheet is peeling or torn.
Side-by-side mounting (mm)
(48 x number of units–2.5) + 1 0
Waterproofing is impossible
with side-by-side
installation. When
waterproofing is required, fit
watertight packing on the
backside of front panel.
• Insert the main unit through the mounting hole in the panel (1-8 mm
thickness). Insert the mounting brackets (supplied) into the fixing
slots located on the top and bottom of the rear case.
• Alternately tighten the top and bottom screws on the mounting
fixtures applying equal pressure a little at a time until the rachet
rotates freely.
• When more than one machine is installed, make sure that the
ambient temperature does not exceed the specified limit.
• OUT1: Control output 1 indicator
Lit when control output 1 is ON and not
lit when it's OFF.
For a current output, lit except for a 0% output.
• OUT2: Control output 2 indicator
Lit when control output 2 is ON and not
lit when it's OFF.
• STOP: control stop indicator
Lit when event input or "Run/Stop" is stopped
during operation.
During control stop, functions other than control
output are valid.
• CMW: communications writing enable/ disable
indicator
Lit when communications writing is
"enabled" and is out when it is "disabled".
The setting data for the E5EN-@3HT/L is shown here as an example.
Check the wiring before turning ON the power supply.
*5
POWER ON
Operation Level
PV/SP
25
s.err is displayed when
connected sensor is
0
different from input type.
sp-m
Set Point During
*6
SP Ramp
0
Heater Current 1
ct1
*6
Hold down Value Monitor
0.0 7
(Unit: A) *
for at least
3 seconds
Leakage Current 1
lcr1
*6
Value Monitor
(No.1display flushes,
0.0 7
(Unit: A) *
then the control stops.)
prst
*6
Program Start
Hold down
rset
for at least
1 second sktr
*6
Soak Time Remain
0
RUN/STOP
r-s
*6
When control start =
run
When control stop =
al-1
*6
Alarm Value 1 *
0
al1h
*6
A larm Value Upper Limit 1
0
al1l
*6
Alarm Value Lower Limit 1
0
al-2
*6
Alarm Value 2 *
0
al2h
*6
Alarm Value Upper Limit 2
0
al2l
*6
Alarm Value Lower Limit 2
0
*3
*4
al-3
*6
Alarm Value 3 *
0
al3h
*6
Alarm Value Upper Limit 3
0
*3
*4
al3l
*6
Alarm Value Lower Limit 3
0
Operation level should normally
be used during operations.
*3
*4
Hold and M keys
down for at least 1 second
Protect Level
oapt
Operation / Adjustment
Protect
0
icpt
Initial Setting /
Communication Protect
1
wtpt
Setting Change Protect
off
pfpt
PF Key Protect
off
prlp
Move to Protect Level
0
Restricts which settings can be displayed
or changed, and restricts change by key
operation.
AT (auto-tuning)
• AT in Adjustment level
Designate "at-2: 100% AT execute" or "at-1: 40%
AT execute" to execute AT and "off: AT cancel" to
"at" flashes
"100%AT Execute"
at
U
off
D
"AT cancel"
Also when AT execution ends, the display
automatically returns to "off".
Power supply voltage
Operating voltage range
Power consumption
Indication accuracy
(Ambient temperature: 23°C) (±0.3 % of indication value or ±1°C,
Event input
Contact input
No-contact input
Control output 1
2 ). (The stripping length is 5 to 6 mm.). Up to two wires of same size and
Control output 2
External power supply for
ES1B Control method
Auxiliary outputs
Ambient temperature
Ambient humidity
Storage temperature
Altitude
Recommended fuse
Weight
Degree of protection
Installation environment
Memory protection
Transfer output
Connections
(The applicability of the electric terminals varies with the type of machine.)
The E5@N-@@@@@@T@ is set for a K thermocouple
(input type of 5) by default. If a different sensor is
• 100 to 240 VAC
used, an input error (s.err) will occur. Check the
• 24 VAC/VDC (no polarity)
setting of the Input Type parameter.
Control output 1
Relay output Event Inputs
1 21 11
250 VAC, 5A
(resistive load) Input power supply
EV2
2 22 12
Voltage output EV1
(for driving SSR)
+
12 VDC, 40 mA 3 23
13 CT1/CT2 Control Output 2
Current output
Control output 1
0 to 20 mA DC
+
4 24 14
4 to 20 mA DC -
CT1 Control Output 2
Load: 600 Ωmax.
25
5 15
-
Control output 2
Auxiliary output 3 CT2
DO NOT
Voltage output 6 26 16
USE
(for driving SSR)
DO NOT
12 VDC, 21 mA
7 27 17
USE
Long-life relay output
Auxiliary output 2
250 VAC, 3 A A
DO NOT DO NOT
8 28 18
(resistive load)
USE USE
-
-
Auxiliary output B
9 29 19
1, 2, 3
V
Auxiliary output 1
Relay outputs
B
250 VAC, 1 A 10 30 20
+ +
(resistive load)
TC/Pt multi-input
Analog input
• Since the voltage output (control output 1) is not electrically insulated from the internal wiring, one or other of the control output terminals must be left unearthed when
using an earthed thermocouple thermometer. (Connection makes measurements unreliable due to sneak currents.) Basic insulation is provided between the voltage
outputs (control output 2) and internal circuits.
• The last character of the lot number "R" indicates that reinforced insulation is provided between input power supply, relay outputs, and between other terminals.
• Consult your OMRON sales representative about using the ES1B Infrared Thermosensor's external power supply for other purposes.
• °C / °F : temperature unit
The temperature unit is displayed
when the displayed value is a
temperature.
When this parameter is set to "°C",
"C" is displayed, and when set to
"°F", "F" is displayed.
This flashes while ST (Self-Tuning)
is activated.
• : Protection indicator
Lit when Setting Change Protect is
ON (disables the Up and Down
Keys).
• MANU: Manual output indicator
Lit when the Auto/Manual Mode is
set to Manual Mode.
Adjustment Level
Only the value set to the "ins: Temperature Input Shift" parameter is
applied to the entire temperature input range. When the process value is
200 °C, the process value is treated as 201.2 °C after input shift if the
input shift value is set to 1.2 °C.
The process value is treated as 198.8 °C after input shift if the input shift
value is set to –1.2 °C.
l.adj
Adjustment Level
(The No.3 display
has been omitted.)
AT Execute/Cancel
at
*6 100%AT Execute at-2
off
40%AT Execute at-1
Heater Current 1
ct1
*6
Value Monitor
0.0
7
(Unit: A) *
Press
Heater Burnout
hb1
(less than
*6
Detection 1
0.0
7
1 second) (Unit: A) *
Heater Overcurrent
oc1
*6 Detection 1
50.0 (Unit: A)
Leakage Current 1
lcr1
*6 Value Monitor
0.0
7
(Unit: A) *
hs1
HS Alarm 1
*6
(Unit: A) * 7
50.0
run
stop
ins
Temperature Input Shift
*6
(Unit: °C or °F )
0.0
4
Upper Limit Temperature
insh
Input Shift Value
*6
when 2 point input shift
0.0
is selected
*4 Lower Limit Temperature
insl
Input Shift Value
*6
when 2 point input shift
0.0
is selected
*4
p
*6 Proportional Band
8.0
4
i
Integral Time
*6
(Unit: secs)
233
*4
*6 d
Derivative Time
(Unit: secs)
40
*4
Protection function
4
Protection function, to prevent unwanted settings, restricts the setting items to be used
or designates if operation of the key is valid or invalid.
Operation / Adjustment protection
The following table shows the relationship between settings and protect limits related to
*4
Operation level and Adjustment level.
Level
*4
Process value
Operation level PV/SP
Others
Hold and M keys Adjustment level
down for at least Initial setting/Communications protection
3 seconds This protect level restricts movement to the initial setting level,
communications setting level and advanced function setting level.
Initial setting Communications
Set value
level
0
1
2 ×
Setting change protection
Setting changes by key operation are restricted.
OFF "off": Setting can be changed by key operation
ON "on" : Setting cannot be changed by key operation ("
(Protect level settings can all be changed.)
PF key protection
PF Key operation can be enabled or disabled.
OFF "off": PF Key enabled.
ON "on" : PF Key disabled.
OMRON EUROPE B.V.
Wegalaan 67-69, NL-2132 JD Hoofddorp The Netherlands
Phone 31-2356-81-300
FAX 31-2356-81-388
OMRON ELECTRONICS LLC
One Commerce Drive Schaumburg, IL 60173-5302 U.S.A
.
Phone 1-847-843-7900
FAX 1-847-843-7787
OMRON ASIA PACIFIC PTE. LTD.
at
No. 438A Alexandra Road # 05-05/08 (Lobby 2),
at-2 Alexandra Technopark, Singapore 119967
Phone 65-6835-3011
FAX 65-6835-2711
OMRON Corporation
Shiokoji Horikawa, Shimogyo-ku, Kyoto 600-8530 JAPAN
Specifications
100 to 240 VAC, 50/60 Hz or
24 VAC, 50/60 Hz /
24VDC
85 to 110% of the rated voltage
Approx. 10 VA (100 to 240 VAC)
Approx. 5.5 VA (24 VAC)/4 W (24 VDC)
(Approx. 6.5 VA/4.5 W for models
with transfer output)
Thermocouple:
whichever is greater) ±1 digit max.
Platinum resistance thermometer:
(±0.2 % of indication value or ±0.8°C,
whichever is greater) ±1 digit max.
Analog input: ±0.2 % FS ±1 digit max.
Output current: approx. 7 mA per contact.
ON:1 kΩ max., OFF: 100 kΩ min.
ON: residual voltage 1.5 V max.,
OFF: leakage current 0.1 mA max.
Relay output: SPST-NO,
250 VAC, 5 A (resistive load)
Voltage output (for driving SSR):
12 VDC, 40 mA
Current output: 4 to 20 mA DC, 0 to 20 mA DC
Load: 600Ω max.
Electrical life of relay:
100,000 operations
Voltage output (for driving SSR):
12 VDC, 21 mA
Relay output: SPST-NO,
250 VAC, 3 A (resistive load)
Electrical life of relay:
1 million operations (Long-life model)
12 VDC±10% at 20 mA
ON/OFF or 2-PID control
Relay outputs: SPST-NO, 250 VAC, 3 A
(resistive load),
Electrical life of relay: 100,000 operations
–10 to 55°C
(Avoid freezing or condensation)
RH25 to 85%
–25 to 65°C
(Avoid freezing or condensation)
Max. 2,000 m
T2A, 250 VAC, time-lag,
low-breaking capacity
Approx. 260 g (main unit only)
Front panel: IP66
Rear case: IP20, Terminal section: IP00
Installation category II, pollution
degree 2 (as per IEC61010-1)
Non-volatile memory
(Number of write operations: 1,000,000)
4 to20mA DC, Load:600Ωmax.
A heater burnout alarm, heater short
Communications
RS-232C RS-485 alarm, heater overcurrent alarm, or
SD B (+)
11 11 input alarm is output to the output to
RD A (-) which the alarm 1 function is assigned.
12 12
SG DO NOT USE
13 13
B (+)
DO NOT USE
21 21
21
A (-)
22 DO NOT USE 22
22
23
External Power Supply
EV3
24
+
External power supply EV4
12 VDC, 20 mA 25
-
DO NOT USE
DO NOT 26
USE
4-20 mA DC
+
27
(Load: 600Ω max.)
Transfer output
+
28
-
mA
DO NOT USE 29
-
DO NOT USE 30
DO NOT
USE
Conformance to EN/IEC Standards
This is a class A product.
In residential areas it may cause radio
interference, in which case the user may be
required to take adequate measures to
reduce interference.
A급 기기 （업무용 방송통신기자재）
이 기기는 업무용(A급) 전자파적합기기로서
판매자 또는 사용자는 이 점을 주의하시기 바라며,
가정외의 지역에서 사용하는 것을 목적으로
합니다.
Conformance to Safety Standards
Reinforced insulation is provided
between input power supply, relay
outputs, and between other terminals.
c-sc
Cooling Coefficient
*6
1.00
c-db
Dead Band
*6
0.0
of-r
Manual Reset Value
*6
(Unit: %)
50.0
hys
Hysteresis
*6
(Heating)
1.0
chys
Hysteresis
*6
(Cooling)
1.0
soak
*6 Soak Time
1
wt-b
*6
Wait Band
off
sprt
*6
SP Ramp Set Value
off
ol-h
MV Upper Limit
*6
105.0
ol-l
*6
MV Lower Limit
-5.0
orl
*6 MV Change Rate Limit
0.0
sqrp
Extraction of Square
*6
Root Low-cut Point
0.0
Adjustment level is for entering set
values and shift values for control.
: Can be displayed and changed
Set value
: Can be displayed
0 1 2 3
× : Display or shifting to another
level is not possible.
× ×
Default setting: 0
× × ×
: Change to
Advanced function
other levels
setting level setting level
possible
× : Change to
other levels
×
not possible
× ×
Default setting: 1
" will light.)
