3.1.2 Overview
Option "Hand wheel"
Metal nameplate
ATEX-/IECEx data
3.2

Housing entries (tapped holes)

3.2.1 Cable and wire entries
Features ARIS ExTensor
3x M25x1.5 tapped holes
When delivered, the actuators are provided with a transport protection (protective sticker), which covers the threaded holes of the
cable and line entries. This must be removed and replaced with suitable, approved entries or plugs. The entries/blind plugs used
must correspond to the ignition protection types of the drive. In addition, these must meet the IP protection class - at least IP65 and
IP67.
WARNING
6
(on back)
Protective conductor
terminal
DANGER! Operation with the sticker or parts thereof is not permitted.
Non-compliance can lead to serious accidents and property damage - The ATEX/IECEx
approval of the device becomes void in the event of non-compliance or misuse.

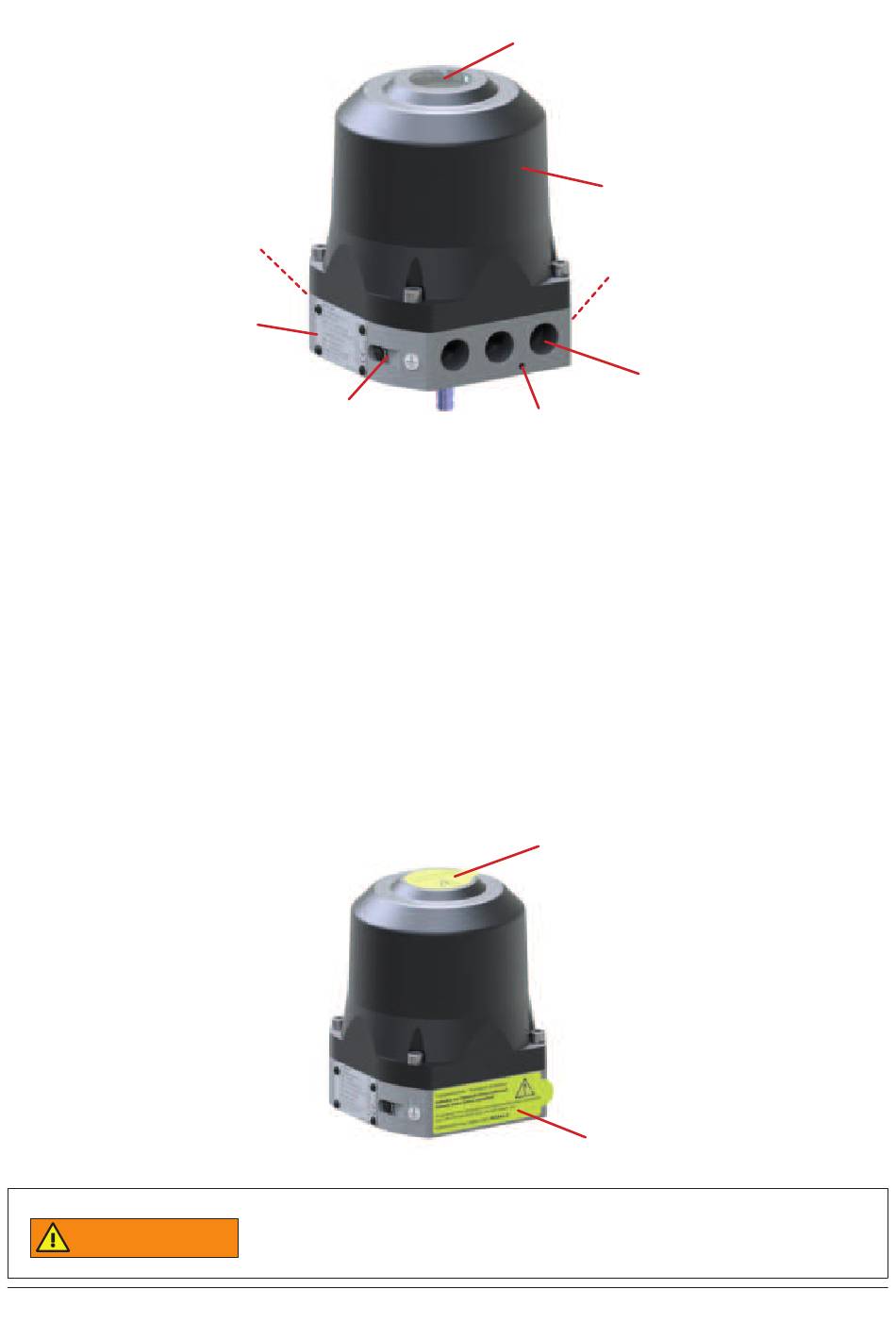

Sight glass
Protective conductor
Output shaft
(various variants)
Actuator housing
Nameplate
Actuator data (on side)
Cable entries
3x M25x1.5
terminal
(alternative)
Transport protection sticker
Sight glass
Transport protection sticker
Cable entries
ExTensor
