Summary of Contents for ARIS LINEARIS

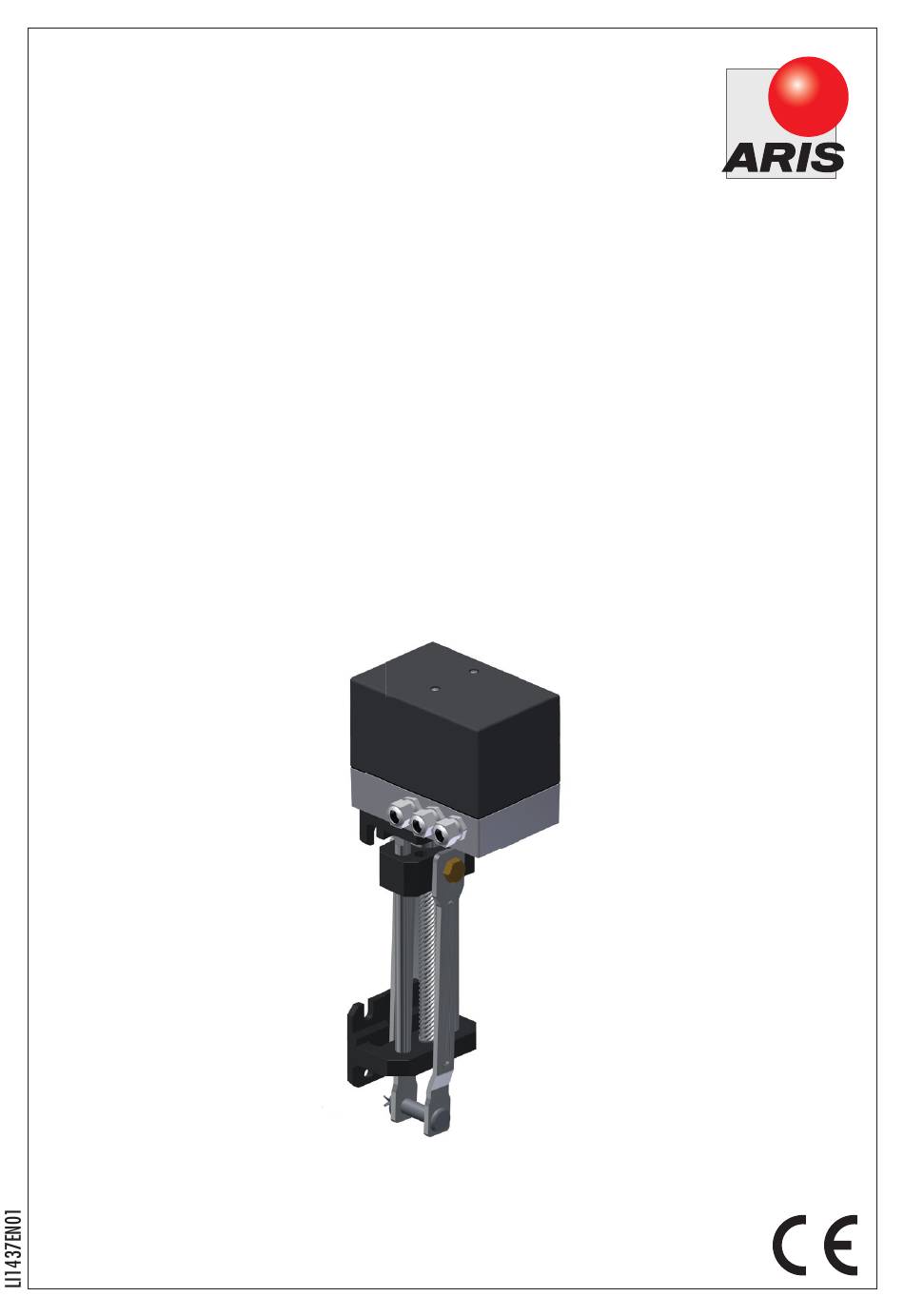

- Page 1 Stellantriebe Operating instructions for ARIS Damper Actuator LINEARIS...
-
Page 2: Table Of Contents
Required customer information ......................13 Extraordinary situations ........................13 Troubleshooting and repair ........................13 Maintenance ............................14 Service ..............................14 Accessories ............................14 Spare parts ............................14 ARIS Stellantriebe GmbH Rotter Viehtrift 9 Tel.: 02241 25186-0 aris@stellantriebe.de 53842 Troisdorf Fax: 02241 25186-99 www.stellantriebe.de... -
Page 3: Identification
Serial no.: 1439-xxxxx-01001 ff Nameplate ARIS Stellantriebe GmbH Rotter Viehtrift 9 D-53842 Troisdorf www.stellantriebe.de Stellantriebe FNr: 1439-xxxxx-01001 ff. Serial number Typ: LINEARIS 12-17 300 Actuator type 230V, 50(60)Hz 35VA Voltage/Frequency/Power consumption 1,7(2)mm/s 1200N H300 Actuating time/Torque IP65 UT-15/+60°C Ambient temperature/Protection class... -
Page 4: Guidelines And Standards
The actuator components are conform to the state of the art and apply as generally safe at the time they are shipped. This manual serves as basis to install and operate ARIS actuators safety conform. All persons working with or on ARIS actuators must observe this manual and especially its safety advices. -
Page 5: Technical Specification
Operating elevators Safe and accurate use ARIS actuators are factory checked prior to delivery. The final functional testing must be performed within the total system by qualified technical personnel. The ARIS company assumes no liability for possible manufacturing errors and resulting damages or subsequent damages after the actuator has been tested, installed and declared functional correct. -
Page 6: Dimensions
Dimensions Stroke X (Cover height) depending on options: 98−178 mm LINEARIS... -
Page 7: Performance Data
Expected lifespan and intended disposal ARIS actuators have an expected lifespan of several years, depending on their utilization and application. No longer usable actu- ators must not be dismantled as a whole, but seperately recycled in parts divided by their materials. Non-recyclable components must be disposed according to national disposal regulations. -
Page 8: Packaging
Packaging ARIS actuators are protected by special cardboard packaging at delivery. Safe disposal of packaging Additionally necessary packaging is made by easily separable packaging materials and can be recycled individually: • Wood • Cardboard • Paper • Plastics Installation and mounting •... -
Page 9: Initial Operation
Observe the wiring diagram inside the cover. • Use separate (shielded) wires for low voltages (e.g. potentiometer). • Set up limit switches prior to initial operation (see page 11). All elements, such as switches, potentiomer etc., are factory-wired. ADVICE Never change the internal wiring. LINEARIS... -
Page 10: Wiring Diagram
Depending on the model, limit switches may be arranged different than drawn in the wiring ADVICE diagram (see wiring diagram inside the actuator). AGS-Stellantriebe GmbH Datum: SP AC + 2ZW + P + Hz Görlitzer Str. 2 31.03.2007 D - 33758 Schloß Holte LINEARIS... -
Page 11: Set Up Limit Switches
The travel of the valve is transferred to the rotating angle of the potentiometer by the friction clutch R. Approach both end positions again electrically and adjust potentiometer P with the friction clutch R. ADVICE All potis must generally run under a potential divider circuit. U– LINEARIS... -
Page 12: 2-Wire-Current Output 4-20 Ma
The actuator must not be electrically activated when disengaged! 5.3.4 Hand wheel (option) In the event of a power failure the actuator can be operated with the help of a hand wheel. LINEARIS... -
Page 13: Required Customer Information
• condition of electric wires. If failure appear, set the actuator out of order and correct the error. If you can not correct the error, contact an ARIS service person. ADVICE More information under: www.stellantriebe.de Troubleshooting and repair... -
Page 14: Maintenance
Maintenance Service Actuator ARIS actuators of type Nano have a lifetime lubrication and are generally maintenance-free. The drive head ist exchangeable separately. Dismount all additional parts (valve or rods) before exchanging the drive head! Dismount CAUTION the drive head only under a load-free condition. - Page 15 Authorized representative for collection of relevant technical documents: Claudio Usai Quality and product safety ARIS Antriebe und Steuerungen GmbH Rotter Viehtrift 9 D-53842 Troisdorf This declaration is invalid if the machinery is changed or rebuilt in a manner it was not designed for.
- Page 16 Subject to technical changes. ARIS Stellantriebe GmbH Tel.: +49 2241 25186-0 Rotter Viehtrift 9 Fax: +49 2241 25186-99 53842 Troisdorf / Germany aris@stellantriebe.de www.stellantriebe.de Stellantriebe...
