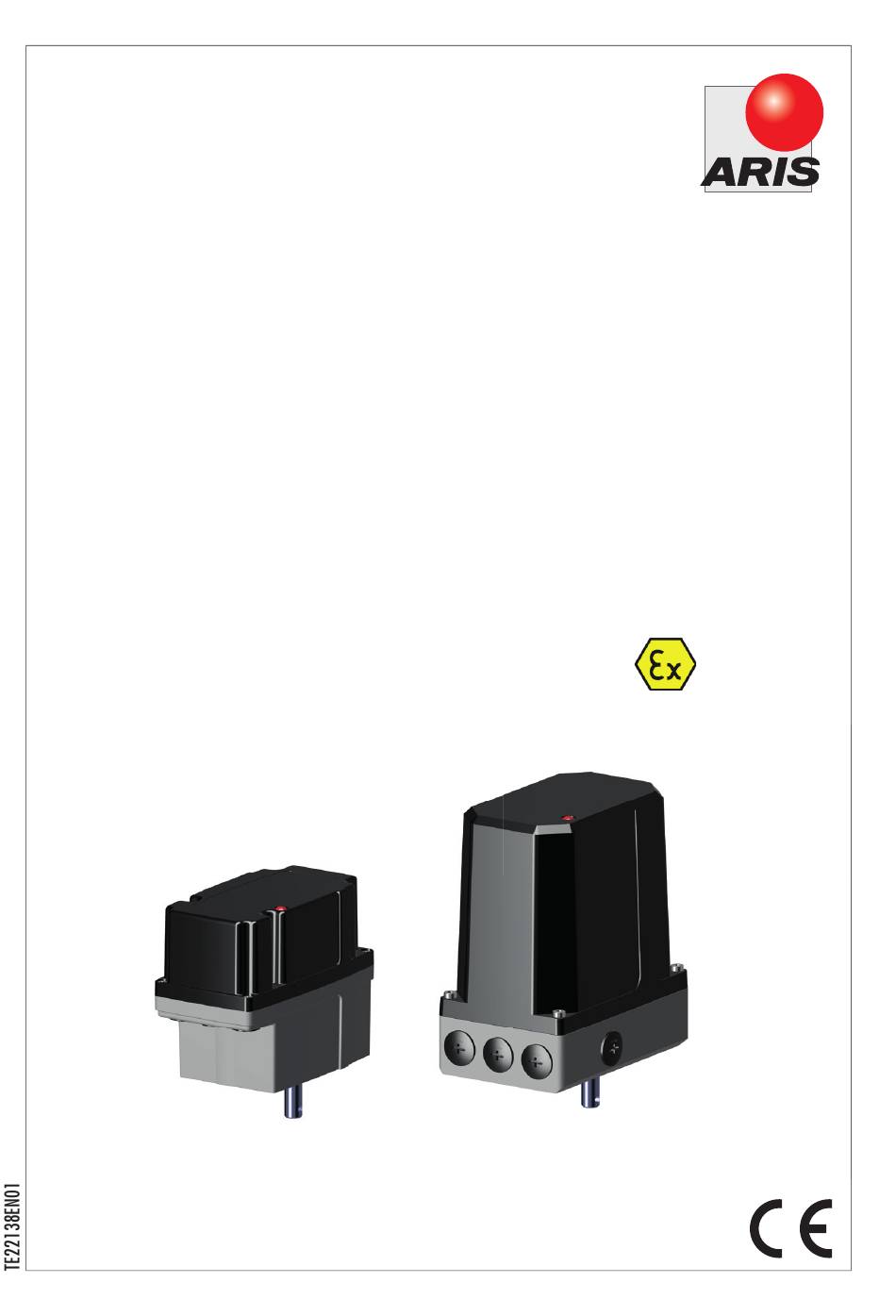

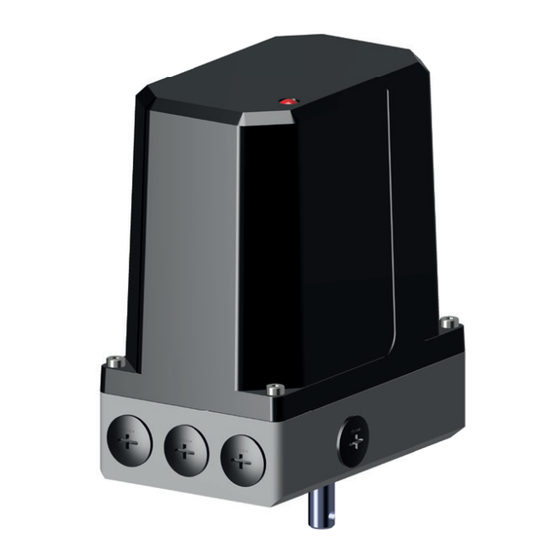

Original declaration of
incorporation with manual for
ARIS actuator
Tensor
2
Tensor
Highspeed
2
Tensor
+ (Option)
2
Tensor
+ Zone 2/22 (Option)
2
Stellantriebe

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tensor2 and is the answer not in the manual?

Questions and answers

Related Manuals for ARIS Tensor2

Summary of Contents for ARIS Tensor2

  • Page 1 Stellantriebe Original declaration of incorporation with manual for ARIS actuator Tensor Tensor Highspeed Tensor + (Option) Tensor + Zone 2/22 (Option)

  • Page 2: Table Of Contents

    Inhaltsverzeichnis 1. Identification ................................3 1.1 Nameplate............................................3 1.2 Guidelines and standards ........................................4 2. Safety information ..............................4 2.1 Warnings .............................................. 4 2.2 General safety advice..........................................4 3. Technical specification ..............................5 3.1 Functions and application areas (Intended use) ..................................5 3.2 Safe and accurate use ........................................... 5 3.3 Dimensions ............................................

  • Page 3: Identification

    Actuator type 85...265 V AC, 50/60 Hz Voltage/Frequency (DC as an option) 60s/90°, 15 Nm, 20 VA Actuating time/Torque/Power consumption UT -15°C/+60°C IP65 Ambient temperature/Protection class Made in Germany ARIS Stellantriebe GmbH Rotter Viehtrift 9 D-53842 Troisdorf www.stellantriebe.de Stellantriebe Tensor...

  • Page 4: Guidelines And Standards

    The actuator components are conform to the state of the art and apply as generally safe at the time they are shipped. This manual serves as basis to install and operate ARIS actuators safety conform. All persons working with or on ARIS actuators must observe this manual and especially its safety advice.

  • Page 5: Technical Specification

    Under water Safe and accurate use ARIS actuators are factory checked prior to delivery. The final functional testing must be performed within the final system by qualified technical personnel. The ARIS company assumes no liability for any direct or indirect damage arising from •...

  • Page 6: Dimensions

    Dimensions Tensor F05 50 F03 36 25 25 Round shaft w/feather key D-Shaft (Option) ISO shaft (Option) 4-square (Option) T=2.5 Tensor...
  • Page 7 Tensor S Highspeed M8x12 F07 70 F05 50 M6x12 M6x12 3x M20x1.5 12 h9 Round shaft w/feather key D-Shaft ISO shaft (Option) (Option) 4-square (Option) Tensor...
  • Page 8 Tensor F05 50 F07 70 25 25 Round shaft Round shaft w/cross hole w/feather key (Option) ISO shaft 4-square (Option) Type 2 . 5 30 - 40 Nm 50 - 75 Nm Tensor...
  • Page 9 Tensor M Highspeed M8x12 F07 70 F05 50 M6x11 M6x11 3x M20x1.5 Round shaft Round shaft w/cross hole w/feather key ISO shaft (Option) 4-square (Option) Type 2 . 5 30 - 40 Nm 50 - 75 Nm Tensor...
  • Page 10 Tensor F07 70 M8x16 25 25 Round shaft w/feather key ISO shaft (Option) 4-square (Option) T=3.5 Tensor...
  • Page 11 Tensor L Highspeed M8x16 F07 70 3x M20x1,5 Round shaft Round shaft ISO shaft w/feather key w/cross hole (Option) 4-square (Option) t=3,5 4kt SW Tensor...

  • Page 12: Performance Data

    Expected lifespan and intended disposal ARIS actuators have an expected lifespan of several years, depending on their utilization and application. No longer usable actu- ators must not be dismantled in whole, but separately recycled in parts divided by their materials. Non-recyclable components must be disposed according to national disposal regulations.

  • Page 13: Actuator Setup For Utilization

    Actuators with attached valves: Attach lifting gear only on the valve and NEVER on the actuator; • Do not use ARIS actuators as a climbing or support aid; • ARIS actuators must not operate in unsecured lifting operations without additional applications. ADVICE Possible damage by wrong storage. •...

  • Page 14: Initial Operation

    Consider prior to attachment of couplings: • Do not turn actuator shafts by force; • actuator and valve shafts must run centric. For all actuators observe the following advice: The initial operation of the actuator is only permitted with orderly closed cover and closed cable entries. Use only cable glands which are appropriate for the respective protection class.
  • Page 15 4.5.2 Wiring diagram -/N +/L 2 3 Connection 85…265 V AC Neutral conductor Phase / Supply 85 ... 265 V AC Control connection > left-turning (CCW) Control connection > right-turning (CW) Connect the ground wire to the inside of the housing. Connection 19.2…28.8 V DC -/N +/L –...

  • Page 16: Actuator Operation Without Modules (Standard)

    Actuator operation without modules (Standard) Operation The Tensor The Tensor is operated via 3 buttons and a slide switch, located above the actuator´s display. The OLED display makes setting up is operated via 3 buttons and a slide switch, located above the actuator´s display. The OLED display makes setting up the actuator easier by showing text such as letters, numbers and signs.
  • Page 17 Automatic operation (AUTO mode, switch position "AUTO"): The actuator runs with an external signal, which is present depending on the setting on the terminal clamps, the signal clamps or CAN clamps. The onboard buttons are without function. Manual mode (MANU mode, switch position "MANU"): The actuator can run left and right by using the buttons "L"...
  • Page 18 5.1.3 Menu system overview Menu items Depending on the selected user, stored access authorisation, set parameters and the model type of the actuator, single menu items may be invisible/hidden differing from the following overview. x = menu item visible Menu Sub item Function MAIN MENU...
  • Page 19 If the login is missing, only the INFO MENU and the menu item LOGIN (in MAIN MENU) are visible. The following users are selectable: • User • Service • Manufacturer (ARIS only) A logged in user can be logged out via the menu item "Logout". Tensor...
  • Page 20 Login ADVICE (Contd.) A user has to be selected/logged in on initial switch on or after a voltage loss, even if no password was given for the selected user. If no password was stored for the user, the password entry is skipped and the first menu item will be displayed. Password entry: •...
  • Page 21 Poti Input Actuator control via external potentiometer, only visible and adjustable with "Signal IN" = "Poti" Matching of the set value signal for the left and right end positions for controlling the actuator via a potentiometer. This menu item can only be set, when "Poti" is selected under "Signal IN". The DIP switch must be set correctly on the board (see menu item "Signal IN").
  • Page 22 Set Value Performance data for set value input (Contd.) Resolution: 12 bit Set value input: Current input 0…20 mA, Burden 50 Ω Voltage input 0…10 V DC, input impedance >200 kΩ Actual Value Settings for actual value output as position feedback, only adjustable with "Signal OUT" = "Ctrl. [mA]" or "Ctrl. [V]"...
  • Page 23 Relay Switch The following relay settings are available: (Contd.) 1. "Off": Relays switched off/inactive 2. "Sw.pt.high" (Switch point high): Relay is switched on/active from right end position to the set switching point SP. Relay is switched off/inactive from left end position to the set switching point SP. 3.
  • Page 24 [3] Sw.pt.low Relay switching state 1 (switched on/active) 0 (switched off/inactive) left right end position end position [4] Cam high Relay switching state 1 (switched on/active) 0 (switched off/inactive) left right end position end position [5] Cam low Relay switching state 1 (switched on/active) 0 (switched off/inactive) left...
  • Page 25 [7] Bl.det.ri Relay switching state Blockade at right end position 1 (switched on/active) 0 (switched off/inactive) left right end position end position Feedback of block detection via relay (Setting 6 & 7) The condition of the block detection can be put out via relay 3 and 4. Therefore, the settings for block detection are matched to the preferred relay in the relay settings menu.
  • Page 26 Signal IN Settings of the DIP switch for input signals (DIP switches 1-3) (Contd.) For the settings of the input signals use DIP switches1-3. The position of DIP switches 4-6 is irrelevant to the input signal setting. Voltage input [V] Voltage source grounded Voltage source potential-free i-Act...
  • Page 27 Signal OUT Output signal Selection of the output signal type, used as position feedback. The following position feedbacks are available (depending on activated features): Feedback signal: • Off: No feedback of actuator position. • Ctrl. [mA] (Control [mA], i-Act or current/voltage output): Output of an actual value signal [mA]. •...
  • Page 28 Signal OUT ADVICE (Contd.) The terminal indication for the potentiometer output is different to prior Tensor electronics. The original terminal indications 18 and 19 were substituted by 54 and 55 (see wiring diagram). Wire Monitor Wire monitoring, formerly wire break monitoring Monitoring of the set value signal at the terminals when driving the actuator with set value signals (mA resp.
  • Page 29 Offset Control variance Setting of the max. variance allowed between actual and set value of the controller (Standard variance). The allowed variance is stated in % depending on the set travel of the actuator. An override of the set max. variance will indicate an error at the message output (see "Status Info"). Possible settings: 0 = Standard variance check deactivated 1...9% = Allowed standard variance in %...
  • Page 30 Stall-Det. Stall detection The stall detection recognizes an accidental halt of the actuator and the BLDC motor, caused by a blockade. Subsequently the actuator stops to avoid damages to the actuator or the connected valve and an error code (Error Code 3X) is displayed.
  • Page 31 ([mA] & [V]). ADVICE If you are interested in any additional feature, please contact the ARIS sales department and have the serial number of the mounted electronics ready (check INFO MENU "Serial-No."). POWR. MENU (Power menu)
  • Page 32 On-time Operating hours counter Displays the overall operating hours of the actuator. The operating hours counter starts as soon as the actuator is supplied with power and stops when the power supply is cut off. The operating hours are stored even when a power failure occurs. A reset of the operating hours is not possible.

  • Page 33: Additional Advice Concerning The Intended Use In Potentially Explosive Atmospheres Of The Zone 2 And 22 (Option)

    Version with auxiliary switches: Tensor + Z2 / Z22 R II 3G Ex ec nC IIB T4 Gc X II 3D Ex tc IIIC T80°C Dc X ARIS Stellantriebe GmbH Rotter Viehtrift 9 -15 °C ≤ Ta ≤ +50 °C D-53842 Troisdorf www.stellantriebe.de...

  • Page 34: Guidelines And Standards

    + meet the requirements of the ignition protection type "Protection by enclosures" for a explosion proof device of the group II and the category 3 D and ignition protection type "Increased safety" for group II and category 3G. ARIS actuators for the EX-zones 2 and 22 may not be used •...

  • Page 35: Performance Data

    Performance data The maximum surface temperature of the actuators with regard to an ambient temperature of +50 °C is +80 °C. Protection class IP65 Motor • Power supply: 85…265 V AC, 50/60 Hz; 19.2…28.8 V DC • Type: BLDC • Duty cycle: 100% ED •...

  • Page 36: Additional Options

    Additional options Internal manual override (mechanical) Operating the manual override with a power tool is not permitted, the CAUTION transmission can be destroyed due to the high speed! Turn the drive shaft with a fl at-tip screwdriver at the manual override until the desired position is reached. Option hand wheel Danger of mechanical stroke.

  • Page 37: Required Customer Information

    Required customer information If it is not possibly to remedy the malfunction, please contact the ARIS customer service. ADVICE More at: www.stellantriebe.de Troubleshooting and repair Hazardous voltage: Possible stroke! • Troubleshooting and repair only by experts! WARNING • Cut off voltage before opening the actuator.

  • Page 38: Maintenance

    ARIS actuators of type Tensor have a lifetime lubrication and are generally maintenance-free. 10.2 Accessories Please order accessories separately. 10.3 Spare parts Order spare parts at aris@stellantriebe.de any time. ADVICE Please have the the serial number of the actuator ready. Tensor...
  • Page 39 Tensor...
  • Page 40 Authorized representative for collection of relevant technical documents: Raimund Schulte Quality and product safety ARIS Stellantriebe GmbH Rotter Viehtrift 9 D-53842 Troisdorf This declaration is invalid if the machinery is changed or rebuilt in a manner it was not designed for.
  • Page 44 Subject to technical changes. ARIS Stellantriebe GmbH Tel.: +49 2241 25186-0 Rotter Viehtrift 9 Fax: +49 2241 25186-99 53842 Troisdorf / Germany aris@stellantriebe.de www.stellantriebe.de Stellantriebe...
