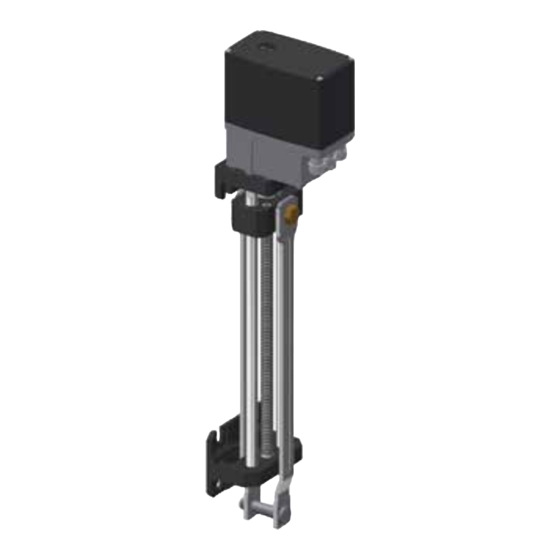

  • Page 1 Stellantriebe Original declaration of incorporation with manual for ARIS Damper actuator Linearis N + incl. manual for ARIS Microprocessor-Controller PMR-Nano...
  • Page 2: Table Of Contents

    Extraordinary situations ................................16 Troubleshooting and repair ............................... 17 Maintenance ..................................... 17 Service ..................................... 17 Accessories ....................................17 Spare parts ....................................17 ARIS Stellantriebe GmbH Rotter Viehtrift 9 Tel.: +49 2241 25186-0 aris@stellantriebe.de 53842 Troisdorf/Germany Fax: +49 2241 25186-99 www.stellantriebe.de...
  • Page 3: Identification

    Actuator type Typ: Linearis N+ Voltage/Frequency/Power consumption 230V, 50(60)Hz 12VA 1,7 mm/s 600 N Actuating time/Force UT -15°C/+60°C IP65 Ambient temperature/Protection class Additional built-in parts Made in Germany ARIS Stellantriebe GmbH Rotter Viehtrift 9 D-53842 Troisdorf www.stellantriebe.de Stellantriebe Linearis N+...
  • Page 4: Guidelines And Standards

    The actuator components are conform to the state of the art and apply as generally safe at the time they are shipped. This manual serves as basis to install and operate ARIS actuators safety conform. All persons working with or on ARIS actuators must observe this manual and especially its safety advices.
  • Page 5: Technical Specification

    Operating elevators Safe and accurate use ARIS actuators are factory checked prior to delivery. The final functional testing must be performed within the total system by qualified technical personnel. The ARIS company assumes no liability for possible manufacturing errors and resulting damages or subsequent damages after the actuator has been tested, installed and declared functional correct.
  • Page 6: Dimensions

    Dimensions Linearis N+  Stroke Linearis N+...
  • Page 7: Performance Data

    Expected lifespan and intended disposal ARIS actuators have an expected lifespan of several years, depending on their utilization and application. No longer usable actu- ators must not be dismantled as a whole, but seperately recycled in parts divided by their materials. Non-recyclable components must be disposed according to national disposal regulations.
  • Page 8: Packaging

    Packaging ARIS actuators are protected by special cardboard packaging at delivery. Safe disposal of packaging Additionally necessary packaging is made by easily separable packaging materials and can be recycled individually: • Wood • Cardboard • Paper • Plastics Installation and mounting •...
  • Page 9: Initial Operation

    • Cable entries Ensure that all cable entries are closed properly during storage, installation and initial operation. Use only cables which are suitable for the diameter of the cable entries. • Cover assembly During the cover assembly make sure that the cover fits correctly. The cover must not show any damages on the joint surface.
  • Page 10: Wiring Diagram

    4.5.2 Wiring diagram Options Standard Optionen Current Strom- ausgang output  9 10 1213 1516 5455 – Limit switch, CCW Limit switch, CW Option 24 V DC Auxiliary switch 1 see chapter 5.3.10 Auxiliary switch 2 Potentiometer 1 Steuerelektronik Limit switch, CCW Limit switch, CW +L +R –...
  • Page 11: Set Up Limit Switches (Self-Adjusting Switch Cam)

    Set up limit switches (Self-adjusting switch cam) The switch cams are turnable by hand and can be fastened by a thread pin, e.g. if strong ADVICE vibrations apply. Apply voltage (see page 10): Actuator rotates in given direction. Switch off voltage when the desired end position has reached (no blocking of gear). Turn switch cam L in rotating direction of the cam shaft E until limit path switch SL clicks.
  • Page 12 Overview TÜV-Poti Poti Novotechnik SP28 Micro switches Switch cams Electrical connection Connect terminals 18, 19 and 20 according to the desired needs (voltage ≤ 50V); (see page 11). Use only separate, shielded wires. Adjustment Set the limit switch prior to adjustment of the potentiometers SP28. Electrically drive towards both end positions (see chapter 5.2). Match both travel and potentiometer resolution.
  • Page 13: Additional Limit Switches (Self-Adjusting Switch Cam)

    ADVICE All potis must generally run under a potential divider circuit. U– 5.3.3 Additional limit switches (Self-adjusting switch cam) The switch cams can be rotateted by hand an can additionally be fixed with a thread pin, ADVICE e.g. at strong vibrations. Approach desired position.
  • Page 14: Mechanical Position Indicator

    5.3.5 Mechanical position indicator The mechanical position indicator serves as a reference for the shaft position on the sight-glass and it is adjustable. Adjustment: Adjust the mechanical position indicator by turning the angle pointer (marked with an arrow) and the enclosed arrow labels. Ratio position indicator to valve position on Nano M: Type Pos.ind.
  • Page 15: Single Wire Control (230 V Ac Only)

    5.3.8 Single wire control (230 V AC only) For use as open/close regulation by external controller or switching appliances with normally open or break contact. The rotation direction reverse is made by a built-in switching relay. 1 2 3 4 5 A B The add-on board with the single wire control is wired at factory.
  • Page 16: Power Supply 24 V Dc (Special Edition)

    • condition of electric wires. If failure appear, set the actuator out of order and correct the error. If you can not correct the error, contact an ARIS service person. ADVICE More information under: www.stellantriebe.de Linearis N+...
  • Page 17: Troubleshooting And Repair

    More information under: www.stellantriebe.de Maintenance Service ARIS actuators of type Nano have a lifetime lubrication and are generally maintenance-free. Dismount all additional parts (valve or rods) before exchanging the drive head! Dismount CAUTION the drive head only under a load-free condition.
  • Page 18 Subject to technical changes. ARIS Stellantriebe GmbH Tel.: +49 2241 25186-0 Rotter Viehtrift 9 Fax: +49 2241 25186-99 53842 Troisdorf / Germany aris@stellantriebe.de www.stellantriebe.de Stellantriebe...
  • Page 19 Stellantriebe Manual for ARIS Microprocessor- Controller PMR-Nano...
  • Page 20 Operating controls and indicators ......................20 Setting up stop positions and potentiometer ................... 20 Programming ............................21 Technical data ............................25 Declaration of incorporation ........................26 ARIS Stellantriebe GmbH Rotter Viehtrift 9 Tel.: +49 2241 25186-0 aris@stellantriebe.de 53842 Troisdorf Fax: +49 2241 25186-99...
  • Page 21: Intended Use

    Intended use ARIS microprocessor controllers, series PMR-Nano, are used for activating ARIS actuators. They are integrated in the actuator hous- ing. PMR-Nano series microprocessor controllers position the actuator based on a reference input (set point). The PMR controller com- pares the preset set point with the current position of the actuator (actual value). In case the values differ from each other, the actu- ator is moved to the position specified by the set point.
  • Page 22: Wiring Diagram

    Wiring diagram (Built-in version) Terminal strip for microprocessor controller Actuator motor Limit switch, CCW rotation Limit switch, CW rotation Potentiometer for actual value PMR-Nano 0(4)–20 mA (DC) optional 0–10 V (DC) 0–20 mA (DC) Internal wiring (do not modify!) External control and wiring PMR-Nano...
  • Page 23: General Information

    Circuit board Fuse Auto STATUS-LED Manu Menu General information This product is a controller for activation with standard signals. The PMR-Nano control board converts the standard signal in CW or CCW motor activation. Position limit switches and potentiometer are not preset ADVICE upon delivery from factory.
  • Page 24: Operating Controls And Indicators

    Operating controls and indicators MENU Status LED (upper) green (lower) red Auto Manu Controller not programmed (Delivery condition or after reset) MANU (manual mode) • Button LEFT: Actuator moving to the left (CCW) • Button MENU: Activation > 5s Change in to programming mode MENU •...
  • Page 25: Programming

    Programming • Before you start programming, setting of stop positions and potentiometer must be completed. • Full programming must run through. Programming of single items, e.g. only actual values, is not possible. Adjustment of set points/limit positions • Allocation of limit positions to set points can be done via internally preset set points or externally applied set points.
  • Page 26 Left set point 20mA externally applied set point MENU Change with button L / R 6. Confirm selected set point with the MENU button 7. You will see the following short flashing MENU signal on the LED indicator. 8. Move to the right limit stop position by activating the R button.
  • Page 27 Setting up actual value output 12. By activating buttons L or R you select a corresponding actual value output, which is visible MENU by a color change of the LED. 4..20mA 0..20mA interchanging Change with buttons L / R MENU 13.
  • Page 28 To enter the automatic mode, move the sliding switch S to AUTO. In case no external set point is present, the actuator moves to 0/4mA position! By set point presetting 0(4) up to 20mA it is now possible to position the actuator as programmed. RESET-OPTION MENU Deletes the stored data...
  • Page 29 Technische Daten Power supply: 230 V ±10%, 50/60 Hz Special voltages/frequencies see nameplate Set point input: – 0 (4) to20 mA (DC) Burden 250 Ω Overload protection 630 mA Reverse battery protection up to -630 mA. ESD protection, input filter, resolution: 10 bit Actual value output: Optional limits between 0 and 20 mA (DC) Current source, max.
  • Page 30: Declaration Of Incorporation

    Authorized representative for collection of relevant technical documents: Claudio Usai Quality and product safety ARIS Stellantriebe GmbH Rotter Viehtrift 9 D-53842 Troisdorf This declaration is invalid if the machinery is changed or rebuilt in a manner it was not designed for.
  • Page 32 ARIS Stellantriebe GmbH Tel.: +49 2241 25186-0 Rotter Viehtrift 9 Fax: +49 2241 25186-99 53842 Troisdorf / Germany aris@stellantriebe.de www.stellantriebe.de Stellantriebe...
