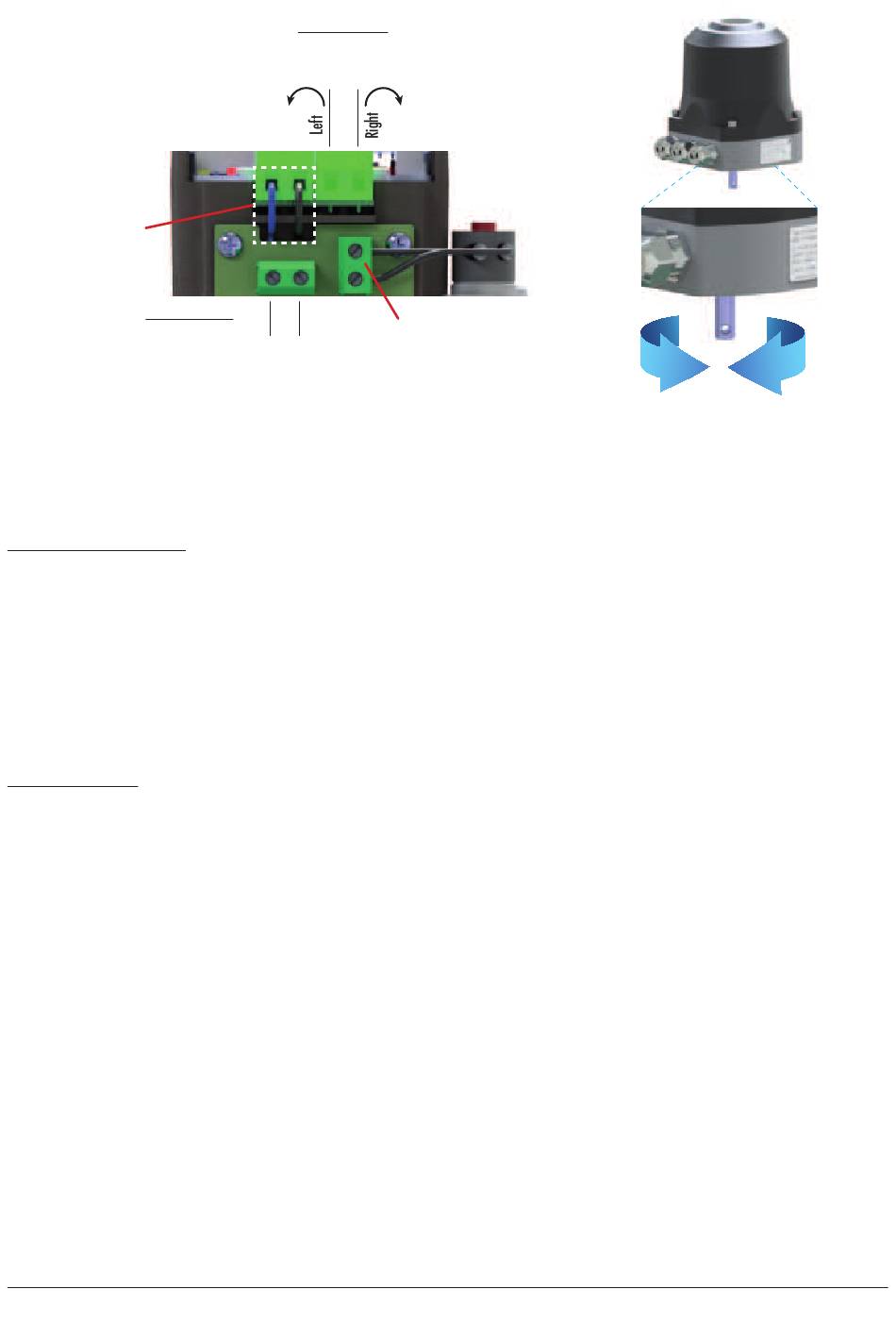

5.2.1 Wiring diagram
Internal wiring
Supply voltage
AC design:
DC design
Connection 85...265 V AC
N Neutral conductor
L Phase / Supply 85 ... 265 V AC
2 Control connection > left-turning (CCW)
3 Control connection > right-turning (CW)
Ground wire inside of the housing.
Connection 24 V DC
– GND
+ Connection 19.2...28.8 V DC
2 Control connection > left-turning (CCW)
3 Control connection > right-turning (CW)
ExTensor
Control voltage
Depending on the
supply voltage
2 3
Internal wiring
N L
Thermal monitor
– +
Left Right
