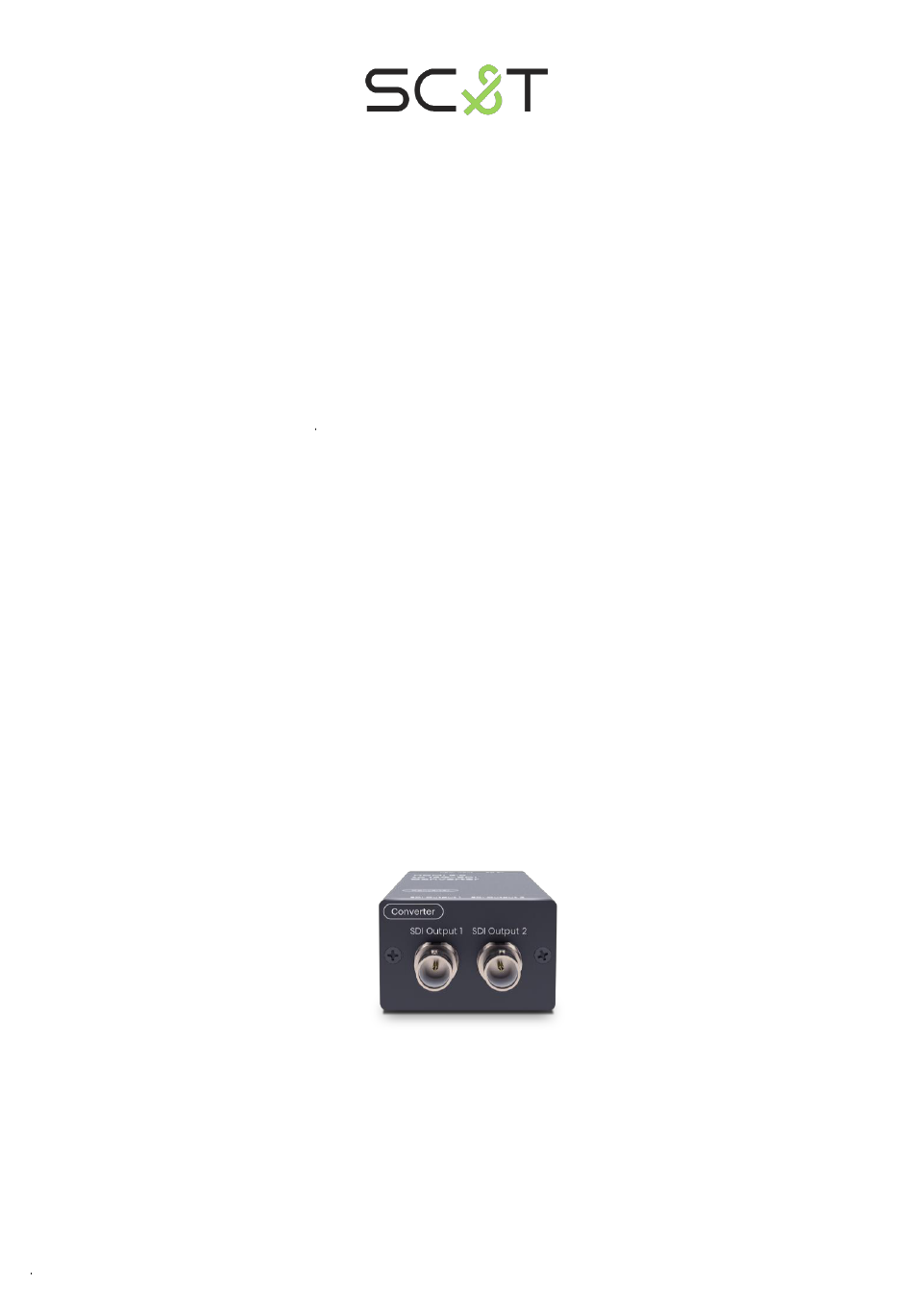

- Page 1 HDMI® Converter User Manual Model: SDI02E-12G 4K60Hz HDMI® to 12G-SDI Compact Converter with Dual Outputs Smart Cabling & Transmission Corp. V1.0_1906261...
- Page 2 User Manual SDI02E-12G Introduction SDI02E-12G is an HDMI® 2.0 to 12G-SDI converter that turns consumer HDMI® into SDI signals for broadcast applications. This small and compact converter has two SDI output ports, which can operate at the same time. Features HDMI®...
- Page 3 User Manual SDI02E-12G Panel View Interface Description DC Jack (with lock) To plug in a DC 5V power adapter HDMI® Input To connect to an HDMI® source Power/Lock LED Refer to LED Indication (p. 3) SDI Output 1 To connect an SDI display or digital video switcher...
- Page 4 User Manual SDI02E-12G LED Indication LED Color LED Status Description Power On Power (Green) Power Off HDMI® signal locked and SDI signal ready to transmit Lock (Blue) No HDMI® signal Resolution Resolutions Supported HDMI® Format Frequency Frequency 4096x2160p 50/59.94/60Hz 12G-SDI 3840x2160p 50/59.94/60Hz...
- Page 5 User Manual SDI02E-12G Caution This product is designed for indoor applications. If outdoor use is necessary, please additionally install a waterproof protective case and surge protector to prevent damage caused by lightning. Do not place any objects on the power or transmission cables, and avoid stepping on all connection cables.
- Page 6 User Manual SDI02E-12G Technical Specification Model SDI02E-12G Compliance 4096 x 2160p@60/59.94/50/30/29.97/25/24/23.98Hz 3840 x 2160p@60/59.94/50/30/29.97/25/24/23.98Hz Input Resolution 1920 x 1080p@60/59.94/50/30/29.97/25/24/23.98Hz 1920 x 1080i@60/59.94/50Hz 1280 x 720p@60/59.94/50Hz 12G: SMPTE 2082@11.88 and 11.868Gb/s 4096 x 2160p@60/59.94/50/30/29.97/25/24/23.98Hz 3840 x 2160p@60/59.94/50/30/29.97/25/24/23.98Hz 6G: SMPTE 2081@5.94 and 5.934Gb/s 4096 x 2160p@30/29.97/25/24/23.98Hz...
- Page 7 User Manual SDI02E-12G Installation Instructions Install on a Platform Step 1 Use machine screws to fix angle brackets on both sides of the product Step 2 Use self-drilling screws to fix the product on a platform Step 3 Move the product to get fixed and then lock the screws...
- Page 8 User Manual SDI02E-12G Install on a Wall Step 1 Follow Step 1 in Install on a Platform to fix the angle brackets. Use self-drilling screws to fix the product on a wall, leaving a 2mm gap protruding from the surface. Align and attach the angle brackets...
- Page 9 User Manual SDI02E-12G Installed on a DIN rail Step 1 Screw the DIN rail mount onto the side of the product Step 2 Refer to the diagram to mount the product onto the DIN rail...
- Page 10 User Manual SDI02E-12G Install on a Rack Step 1 Lock the machine screws onto the rack Step 2 Align and attach the angle brackets on the product to the screws Step 3 Align the products with the edge of the rack...
- Page 11 User Manual SDI02E-12G Step 4 Install the rack into a cabinet...
