- Page 1 Converter Series User Manual Model : AD001HH Video with stereo audio to VGA and HDMI Scaler Converter Smart Cabling & Transmission Corp. V1.0_1708021...

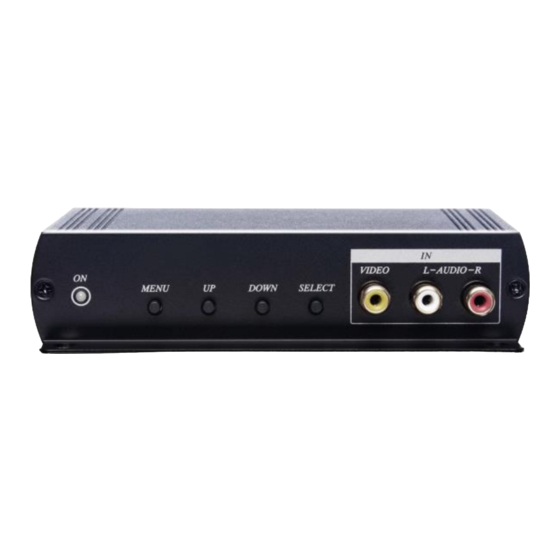

- Page 2 AD001HH Introduction AD001HH is a CVBS to HDMI/ VGA converter that supports stereo audio for CVBS and VGA output. It's an easy-to-use device that supports OSD (On Screen Display) menu to show the current setting status on the connected monitor and supports auto memory function to restore the previous user's settings.
- Page 3 User Manual AD001HH Operation Controls and Function Button Function MENU ： OSD ON/OFF。 ： Select up or Increase setting value DOWN ： Select down or Increase setting value SELECT ： Select or setting. OSD Menu Resolution Press SELECT button to setup resolution: 800x600、1024x768、1280x720、1920x1080 Brightness Press UP or DOWN button to decrease/increase from 0 ~100。...
- Page 4 User Manual AD001HH Specification ITEM NO. AD001HH Support Video Format HDMI, VGA, CVBS Max. HDMI Resolution 1080p@60Hz Max. VGA Resolution 1920 x 1080@60Hz Max. CVBS Resolution 480i, 576i (NTSC、PAL) Ports & Interfaces Video Input 1 x RCA Video Output 1 x HDMI Type A, 1 x 15-pin Mini D-sub, 1 x RCA...
