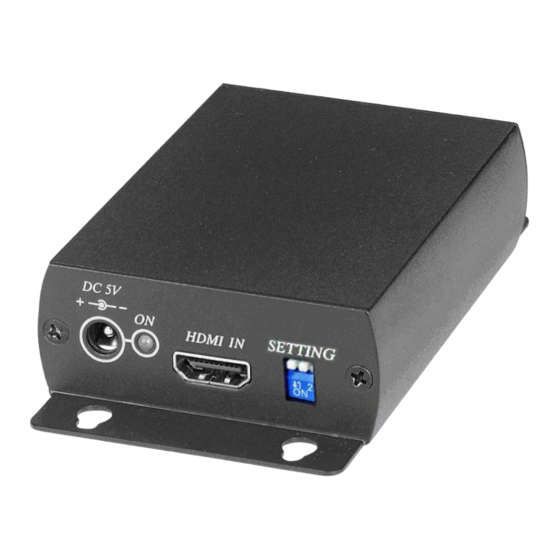

ITEM NO.: SDI02
SDI02 converts signal from HDMI to 3G-SDI, HD-SDI and SD-SDI which provides the highest quality
images for professional audio-visual end users. Designed as a high performance video processor for
post-production and broadcast applications, the HDMI to SDI Converter provides exceptional and
enhanced image processing and quality.
Features:
To send HDMI signal converter to 3G/HD/SDI signal
Support video signal 480i, 576i, 720p, 1080i, 1080p.
Support SDI (SMPTE 259M), HD-SDI (SMPTE 292M), 3G-SDI (SMPTE 424M).
Support audio LPCM 7.1 Channel.

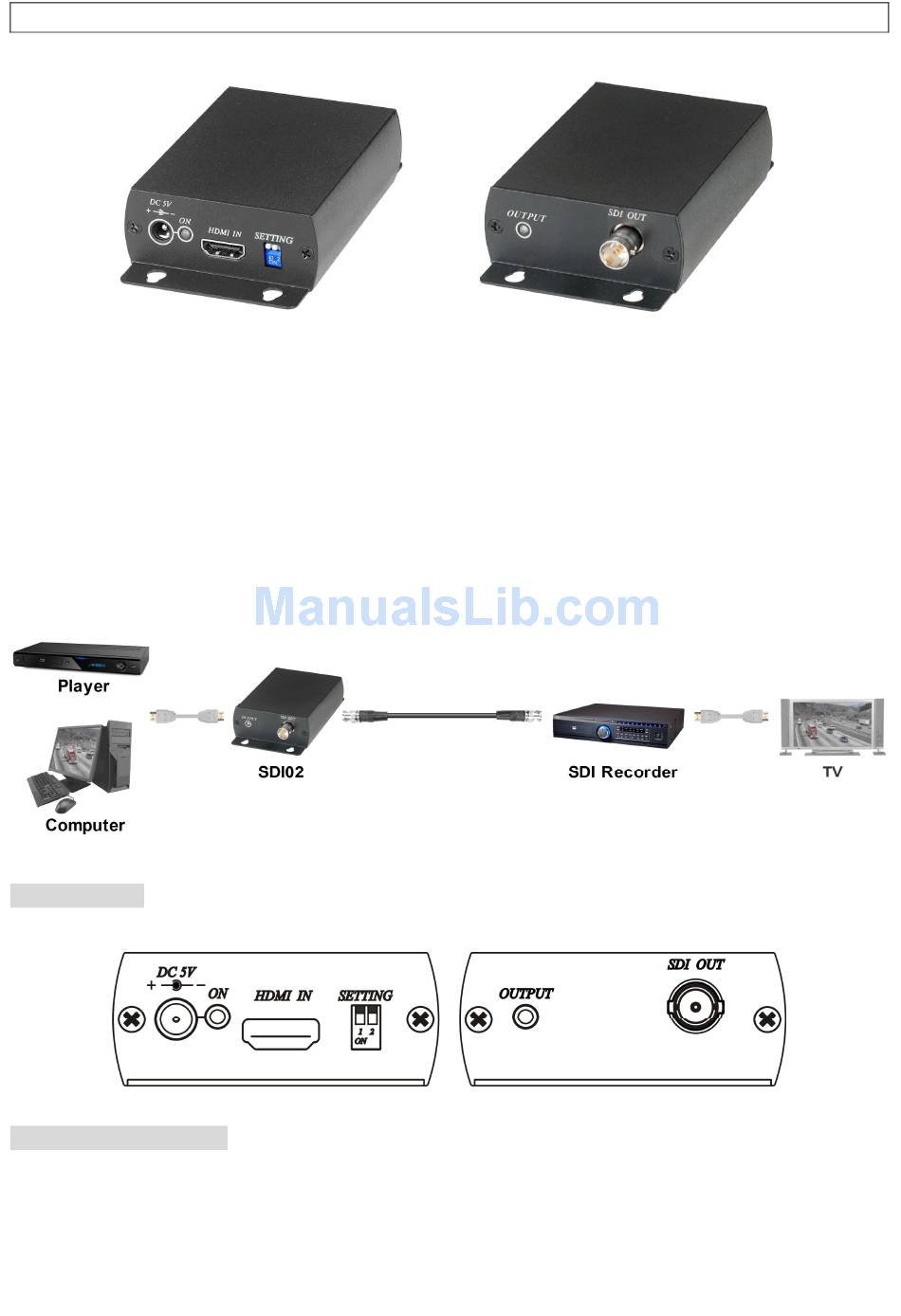

Installation:
Panel View:
SDI02
Recommend Cable:
To send HD video must use coaxial cable with Bandwidth at least 1.5G , to send Full HD video must
use coaxial cable with bandwidth at least 3G.
Link cable recommend to use high quality 75Ω Coaxial Cable & BNC connector , to use low quality
coaxial cable may case signal loss and effect transmission distance and reliability.
HDMI to HD-SDI CONVERTER
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SC&T SDI02
Summary of Contents for SC&T SDI02
- Page 1 HDMI to HD-SDI CONVERTER ITEM NO.: SDI02 SDI02 converts signal from HDMI to 3G-SDI, HD-SDI and SD-SDI which provides the highest quality images for professional audio-visual end users. Designed as a high performance video processor for post-production and broadcast applications, the HDMI to SDI Converter provides exceptional and enhanced image processing and quality.
- Page 2 2. SDI output resolution and frequency is same as HDMI input, if your SDI monitor not support HDMI input resolution and frequency, then it won’t have picture at the monitor. Specification: ITEM NO. SDI02 SDI Standard / Protocol SDI (SMPTE 259M), HD-SDI (SMPTE 292M), 3G-SDI (SMPTE 424M) NTSC (480i), PAL (576i), 720p@50/59.94/60Hz,...
