HD-TVI/ AHD/ HD-CVI/ CVBS Distributor Series
User Manual
Model :
CD408HD
4 x 8 HD-TVI/AHD/HDCVI/CVBS Video Distributor
Smart Cabling & Transmission Corp.
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD408HD and is the answer not in the manual?

Questions and answers

Summary of Contents for SC&T CD408HD

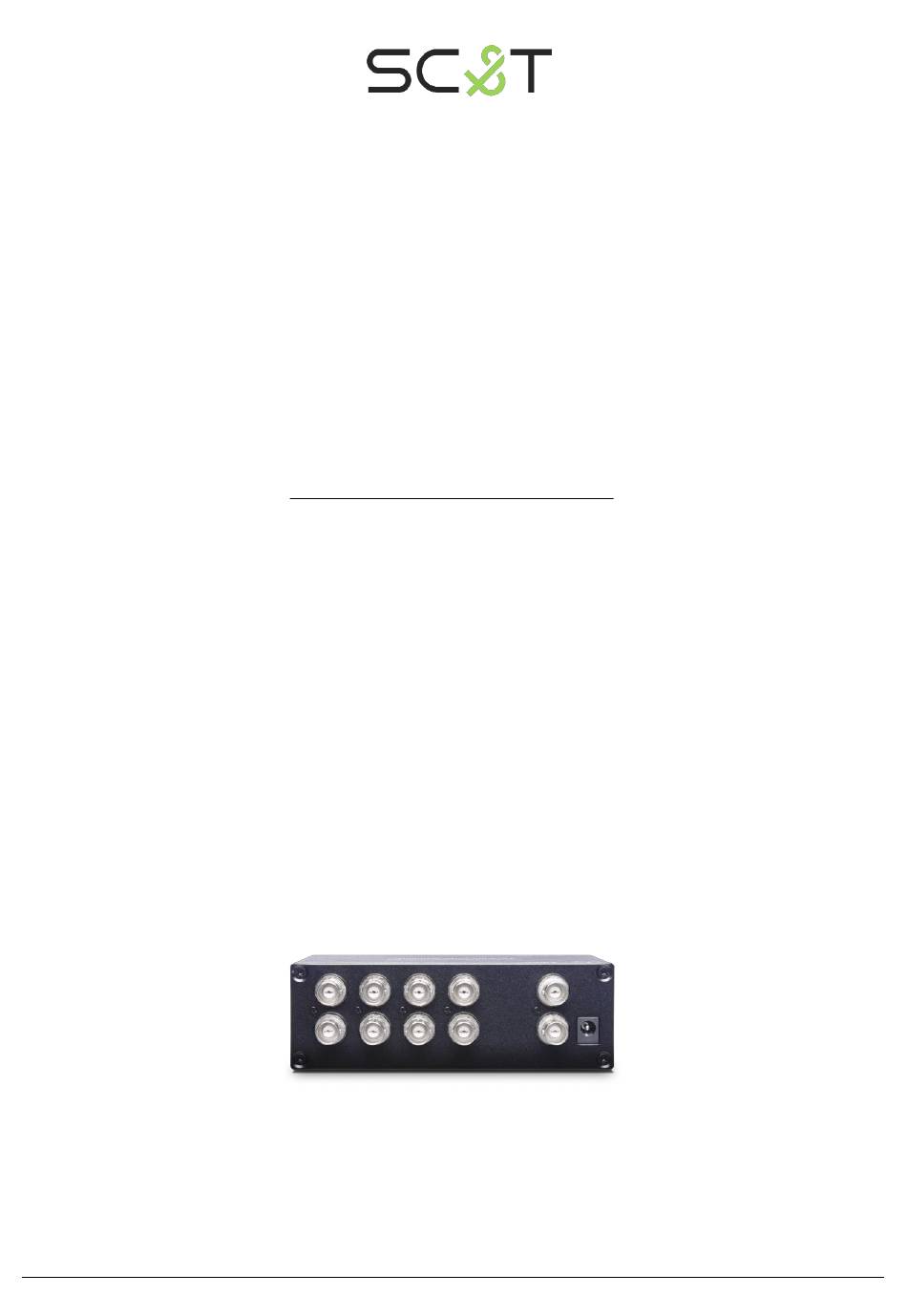

  • Page 1 HD-TVI/ AHD/ HD-CVI/ CVBS Distributor Series User Manual Model : CD408HD 4 x 8 HD-TVI/AHD/HDCVI/CVBS Video Distributor Smart Cabling & Transmission Corp. V1.0...
  • Page 2 User Manual CD408HD Introduction CD408HD is a video distributor that can split 4 HD-TVI/ AHD/ HDCVI/ CVBS signals into 8 ones with up to 4K (8MP) resolution. Features Extends and splits 4 video signals into 8 ones.  Supports HD-TVI, AHD, HDCVI, 960H, NTSC, PAL video signal.

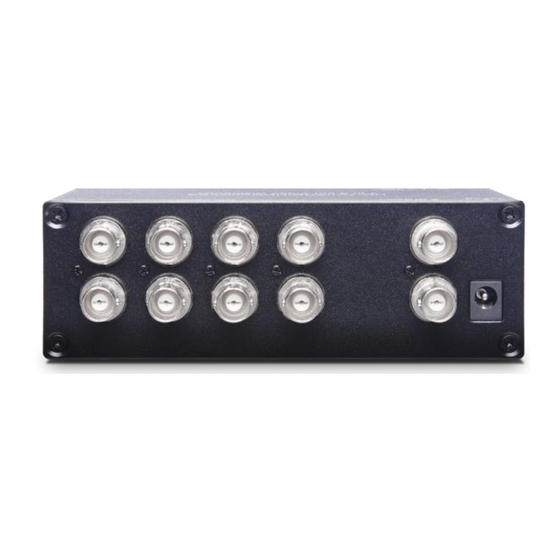

  • Page 3 User Manual CD408HD Panel View Cable & Transmission Distance Link cable recommend use high quality 75ohm coaxial RG59/RG6U cable. The transmission distance will be affected by different quality of Camera, DVR and BNC connector, cable, installation…etc. LED Indication GREEN Power ON...
  • Page 4 User Manual CD408HD Jumper Setting For UTC Mode Output To open the metal chassis, u sing jumper setting could setup the upper BNC output for Video Distribution or UTC output Mode. P1 = OUPUT1 setting as Video Distribution mode P2 = OUPUT2 setting as Video Distribution mode...
  • Page 5 User Manual CD408HD Specifications ITEM NO. CD408HD Support Video Format HD-TVI, AHD, HDCVI, 960H, NTSC, PAL Max. Video Resolution Video Bandwidth 100MHz 0.1dB Gain Flatness Ports & Interfaces Video Input 4 x BNC (1V p-p, 75Ω) Video Output 8 x BNC (1V p-p, 75Ω)
