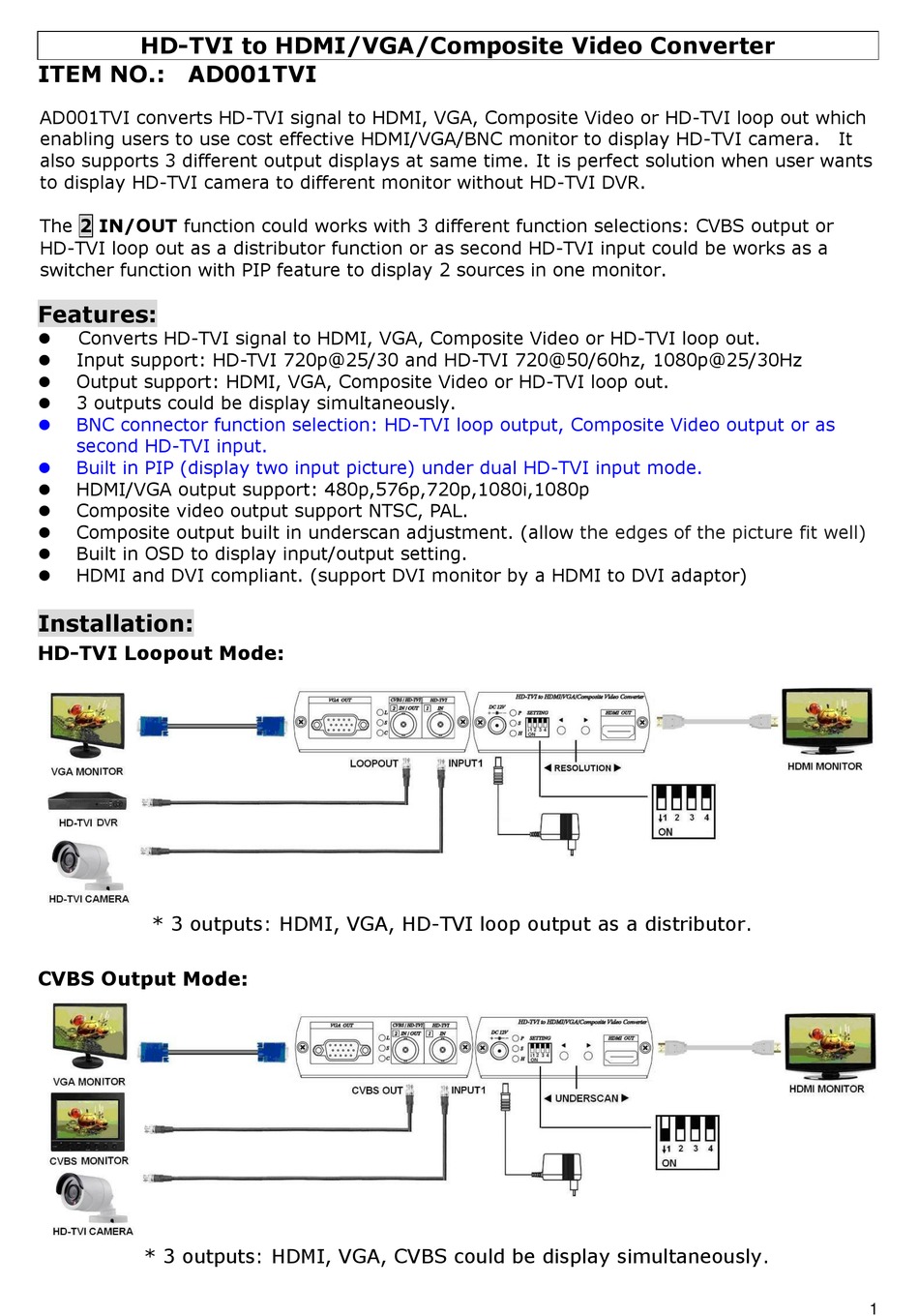

SC&T AD001TVI User Manual

HD-TVI to HDMI/VGA/Composite Video Converter
ITEM NO.: AD001TVI
AD001TVI converts HD-TVI signal to HDMI, VGA, Composite Video or HD-TVI loop out which
enabling users to use cost effective HDMI/VGA/BNC monitor to display HD-TVI camera. It
also supports 3 different output displays at same time. It is perfect solution when user wants
to display HD-TVI camera to different monitor without HD-TVI DVR.
The 2 IN/OUT function could works with 3 different function selections: CVBS output or
HD-TVI loop out as a distributor function or as second HD-TVI input could be works as a
switcher function with PIP feature to display 2 sources in one monitor.

Features:

Converts HD-TVI signal to HDMI, VGA, Composite Video or HD-TVI loop out.

Input support: HD-TVI 720p@25/30 and HD-TVI 720@50/60hz, 1080p@25/30Hz

Output support: HDMI, VGA, Composite Video or HD-TVI loop out.

3 outputs could be display simultaneously.

BNC connector function selection: HD-TVI loop output, Composite Video output or as

second HD-TVI input.
Built in PIP (display two input picture) under dual HD-TVI input mode.

HDMI/VGA output support: 480p,576p,720p,1080i,1080p

Composite video output support NTSC, PAL.

Composite output built in underscan adjustment. (allow

Built in OSD to display input/output setting.

HDMI and DVI compliant. (support DVI monitor by a HDMI to DVI adaptor)


Installation:

HD-TVI Loopout Mode:
* 3 outputs: HDMI, VGA, HD-TVI loop output as a distributor.
CVBS Output Mode:
* 3 outputs: HDMI, VGA, CVBS could be display simultaneously.
the edges of the picture fit well)
1
