SC&T AD001HD4 Manual

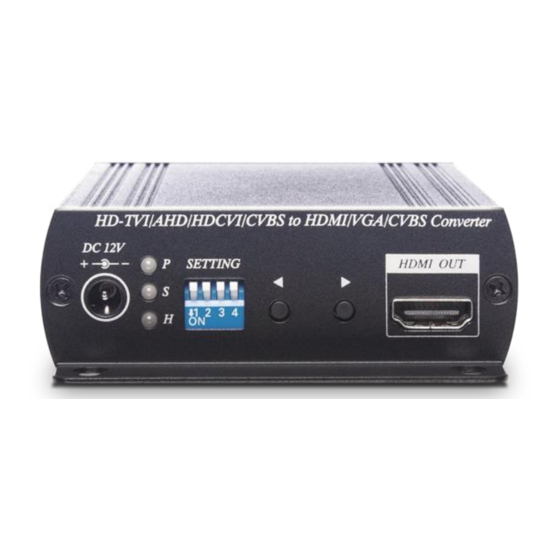

HDTVI/AHD/HDCVI/CVBS to HDMI/VGA/CVBS Converter
ITEM NO.: AD001HD4
AD001HD4 support 4 analog cameras: HD-TVI/AHD/HDCVI/CVBS, convert signal to HDMI, VGA
and Composite Video or loop out which enabling users to use cost effective HDMI/VGA/BNC
monitor to display all HD analog or regular analog camera. It also supports 3 different output
displays at same time. It is perfect solution when user wants to display HD analog camera to
different monitor without HD DVR.
The 2 IN/OUT function could works with 3 different function selections: CVBS output or
HD loop out as a distributor function or as second HD camera input could be works as a switcher
function with PIP feature to display 2 sources in one monitor.

Features:

Converts HD-TVI/AHD/HDCVI/NTSC/PAL/960H signal to HDMI, VGA, Composite Video or

loop out.
Input support: HD-TVI/AHD/HDCVI support: 720p@25/30/50/60, 1080p@25/30Hz.

Output support: HDMI, VGA, Composite Video or loop out.

3 outputs could be display simultaneously.

BNC connector function selection: loop output, composite video output or as second camera

input.
Built in PIP (display two input picture) under dual camera input mode.

HDMI/VGA output support: 480p,576p,720p,1080i,1080p

Composite video output support NTSC, PAL.

Composite output built in underscan adjustment. (allow

Built in OSD to display input/output setting.

HDMI and DVI compliant. (support DVI monitor by a HDMI to DVI adaptor)


Installation:

Loop out Mode:
* 3 outputs: HDMI, VGA, loop output as a distributor.
AD001HD4 Support Video format manual select function as below：
Step 1. Connect video source to AD001HD4 and wait OSD show up.
Step 2. Remove video source to enter format selection mode(all dip SW off)
Step 3. Press left or right button to switch AHD and HDCVI format.
the edges of the picture fit well)
