- Page 1 Data Transmission Series User Manual Model : RS003 USB to RS485 Converter Smart Cabling & Transmission Corp. V1.0 V1.0...

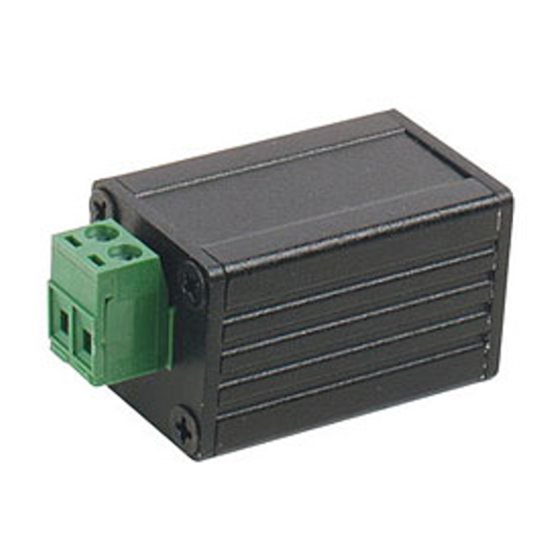

- Page 2 User Manual RS003 Introduction RS003 is a data converter designed to convert USB to RS485 signal, which provides an easy solution to add an additional com port for a computer via a USB port. The unit is powered by the USB connected device, such as a PC, NB..
- Page 3 User Manual RS003 Specification ITEM NO. RS003 Support Standard USB 2.0, RS485 Max. Transmission Distance 1200M Ports & Interfaces Data Input 1 x USB Type B Data Output 1 x 2-pin Terminal Block Power Power Supply No Power Required Power Consumption 10mA (Max) from the USB Connector Ambient Temperature Operation...
