Page 1
HDMI Distributor User Manual Model : HD04-4K6G 4K60Hz 1 x 4 HDMI Distributor Amplifier Smart Cabling & Transmission Corp.
Page 2

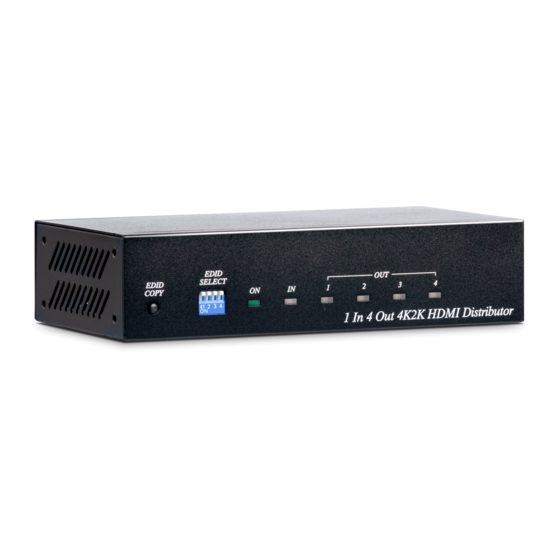

HD04-4K6G Introduction HD04-4K6G is a 1 x 4 HDMI splitter that supports resolution up to 4K@60Hz 4:4:4 and can distribute one HDMI source to 4 HDMI displays. The splitter also supports EDID that can easily work with any display with different resolution.
Page 3
User Manual HD04-4K6G HD04-4K6G LED Indication POWER Green on: Power on INPUT Blue on: HDMI Input connected OUTPUT1 Blue on: HDMI output 1 connected OUTPUT2 Blue on: HDMI output 2 connected OUTPUT3 Blue on: HDMI output 3 connected OUTPUT4 Blue on: HDMI output 4 connected...
Page 4
User Manual HD04-4K6G Specification ITEM NO. HD04-4K6G Support Compliance HDMI 2.0, HDCP 1.4, 2.2, DVI 1.0 Max. Video Resolution 4K@60Hz 4:4:4 Audio Format LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio Ports & Interfaces Video Input 1 x HDMI Type A...
