- Page 1 HDMI Converter Series User Manual Model : HVY01 HDMI to VGA/Component Video & Stereo Audio Scaler Converter Smart Cabling & Transmission Corp. V1.0_1805100 V1.0_...

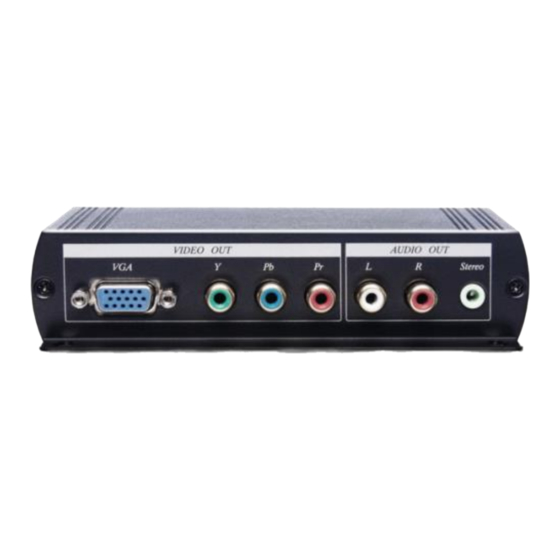

- Page 2 User Manual HVY01 Introduction HVY01 is an HDMI to VGA or Component Video converter that can display an HDMI source on a VGA monitor, projector, or TV. It can also extract HDMI audio and output the signal via external speakers. Features Converts HDMI to VGA or component video with stereo audio.
- Page 3 User Manual HVY01 Panel View Switch Instruction VGA / YPbPr VGA / YPbPr Output setting Resolution Resolution setting LED Indication POWER On/Off HDMI HDMI signal input indication VGA signal output indication YPbPr YPbPr signal output indication...
- Page 4 User Manual HVY01 Specification ITEM NO. HVY01 Support Compliance HDMI, DVI, Component Max. Video Resolution HDMI: 1080p@60Hz VGA: 1920 x 1200@60Hz Component: 1920 x 1200@60Hz Video Bandwidth 1.65 Gbps Ports & Interfaces Video Input 1 x HDMI Type A Video Output 1 x DB15 (High Density, 75Ω...
