User Manual
Model :
AD001HD4
HDCVI/HDTVI/AHD/CVBS to HDMI/VGA/Composite
Video/loop out Converter
Smart Cabling & Transmission Corp.
V1.0
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD001HD4 and is the answer not in the manual?

Questions and answers

Related Manuals for SC&T AD001HD4

Summary of Contents for SC&T AD001HD4

  • Page 1 Converter Series User Manual Model : AD001HD4 HDCVI/HDTVI/AHD/CVBS to HDMI/VGA/Composite Video/loop out Converter Smart Cabling & Transmission Corp. V1.0 V1.0...

  • Page 2: Installation View

    Introduction AD001HD4 is a multifunctional converter that can turn HD-TVI/ AHD/ HDCVI/ CVBS to HDMI, VGA, and CVBS. The built-in loop out port can use as a second input port for camera video or as a CVBS output port for DVR/ CVBS monitor.
  • Page 3 User Manual AD001HD4 CVBS Output Mode * Enable HDMI, VGA, CVBS outputs: display 3 videos simultaneously. 2 Camera In Mode * Enable two camera inputs and VGA, HDMI outputs: HDMI, VGA as a switcher.

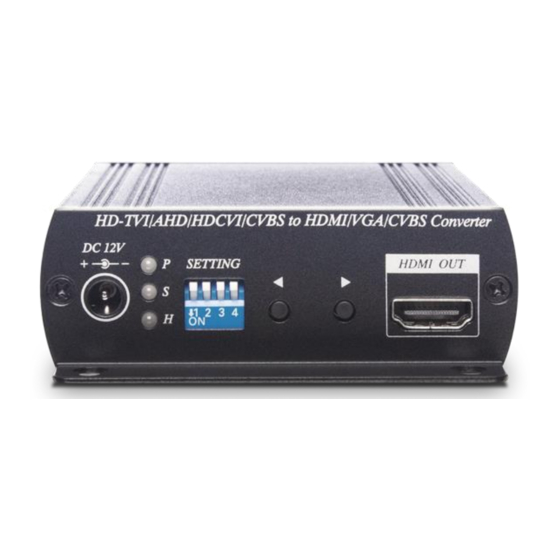

  • Page 4: Panel View

    Display input 2 (CVBS input only) Adjust PIP positioning Adjust PIP positioning Switch PIP main PIP Output counterclockwise clockwise source PIP Output Decrease PIP sizing Increase PIP sizing After setting the above DIP switch function, AD001HD4 has to reboot to take effect.
  • Page 5 User Manual AD001HD4 DIP Switch Settings and Button Function Detail DIP Switch 1 LOOPOUT / AHD and HDCVI /CVBS OUT Selection DIP Switch 1 ↑ (LOOPOUT)/AHD and HDCVI selection 2 IN/OUT connector setting as LOOPOUT mode Button for HDMI/VGA resolution switching, press button to decrease the resolution, ...
  • Page 6 User Manual AD001HD4 DIP Switch 2 INPUT / OUTPUT Mode Selection DIP Switch 2 ↑ (Output Mode) 2 IN/OUT connector setting as output mode, 2 IN/OUT connector function follow by DIP Switch 1 selection. DIP Switch 2 ↓ (Input Mode) 2 IN/OUT connector setting as input mode, 2 IN/OUT connector function as input 2, DIP Switch 1 setting will be ignored.

  • Page 7: Restore Factory Default

    If the PIP sub-screen from SD source, then the sub-screen picture will comes black edge. This product HDCVI input and HDCVI loop out do not support audio and data transmission. When HDTVI,AHD or HDCVI input mode selection error, the picture will become black and white. Please have AD001HD4 reboot.

  • Page 8: Specifications

    User Manual AD001HD4 Specifications ITEM NO. AD001HD4 Support Video Format HD-TVI/ AHD/ HDCVI/ HDMI/ VGA/ CVBS Max. Input Video Resolution 1080p@25/30Hz Max. HDMI Resolution 1080p@60Hz Max. VGA Resolution 1080p@60Hz Max. CVBS Resolution 480i, 576i (NTSC, PAL) Ports & Interfaces Video Input Connector 1 x 75Ω...
