Summary of Contents for SC&T AD001HDE
- Page 1 Converter Series User Manual Model : AD001HDE HDCVI / HDTVI / AHD / CVBS to HDMI / VGA / Composite Video Selection Converter Smart Cabling & Transmission Corp. V1.1...

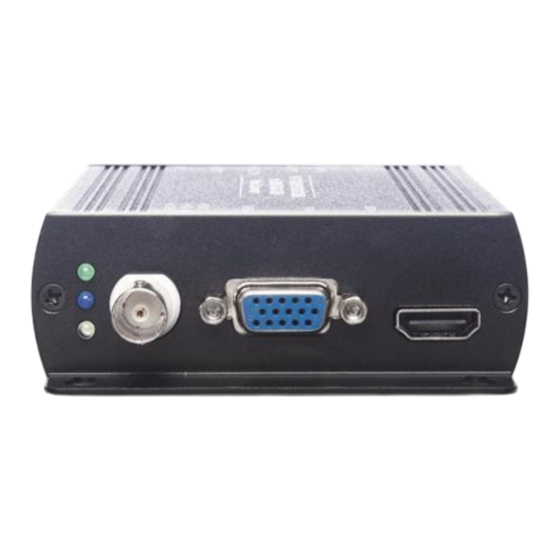

- Page 2 Introduction AD001HDE is a CCTV converter that can convert up to 8MP TVI / CVI / AHD video to 1080p HDMI / VGA / CVBS (output one signal at a time). Built-in a loop-out port to connect the second CCTV camera, a CVBS display, or a DVR.
- Page 3 User Manual AD001HDE LED Status & Button Function Supported Output Resolutions HDMI CVBS 1080p@60Hz 1920x1080@60Hz 480i@60Hz (NTSC) 720p@60Hz 1280x720@60Hz 576i@50Hz (PAL) Caution When using HDCVI camera, resolution 8MP, the maximum distance of input is 50M.
- Page 4 User Manual AD001HDE Specification ITEM NO. AD001HDE Support Video Format HDTVI, AHD, HDCVI, HDMI, VGA, CVBS Max. Input Video Resolution 8MP@15Hz HDMI Resolution 1080p@60Hz, 720p@60Hz VGA Resolution 1920 x 1080@60Hz, 1280 x 720@60Hz CVBS Resolution 480i@60Hz (NTSC), 576i@60Hz (PAL) Ports & Interfaces Video Input 1 x BNC (75Ω...
