- Page 1 Converter Series User Manual Model : AD001H High Resolution Video to VGA Converter (BNC input to 1 x VGA and 1 x BNC output) Smart Cabling & Transmission Corp. V1.0_1606281...
- Page 2 User Manual AD001H Introduction AD001H is a CVBS to VGA converter that supports NTSC/ PAL video formats for CVBS. The converter also has an extra BNC output for a DVR. It's an easy-to-use device that supports OSD (On Screen Display) menu to show the current setting status on the monitor and supports auto memory function to restore the previous user's settings.

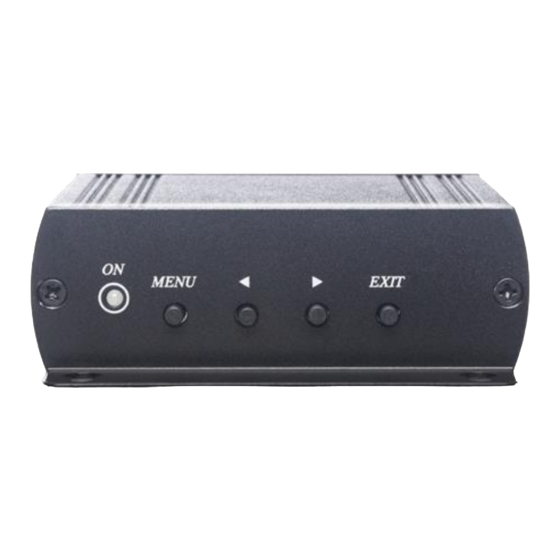

- Page 3 User Manual AD001H Operation Controls and Function Button Function: MENU: OSD ON EXIT: OSD OFF Decrease / increase OSD Menu BRIGHTNESS CONTRAST SATURATION SHARPNESS RESOLUTION Button Function: Up / Down Features Menu BRIGHTNESS CONTRAST SATURATION SHARPNESS Button Function: Select feature setup for decrease / increase, press MENU for next function Resolution...
- Page 4 User Manual AD001H Specification ITEM NO. AD001H Support Video Format CVBS, VGA Max. VGA Resolution 1280 x 1024@60Hz Max. CVBS Resolution 480i, 576i (NTSC/ PAL) Ports & Interfaces Video Input 1 x 75Ω BNC, 1 Vp-p Video Output 1 x 0.7 Vp-p RGB, 15pin D female, 1 x 75Ω BNC, 1 Vp-p Power Power Supply DC5V 1A Regulated...
