REFERENCE and ULTIMATE IC Series
In-Ceiling Speakers
Crestron® Reference and Ultimate in-ceiling speakers made by Origin
Acoustics deliver the pinnacle of performance for demanding residential
installations. Select materials, top shelf components and a high-end
appearance underscore the design behind each model. The result is a
complete line of in-ceiling speakers suitable for installation in luxury
residential applications, restaurants, retail spaces, universities, and
office buildings.
In the Box
1
In-Ceiling Speaker
Additional Items
1
Bayonet Ring
1
Cutout Template
1
Grille
Installation
Prepare the Mounting Hole
Before finalizing the speaker location, check to make sure there are no
fixtures, pipes, air ducts, joists, or other possible obstructions. If
applicable, use a stud finder to locate joists.
To identify obstructions, do the following:

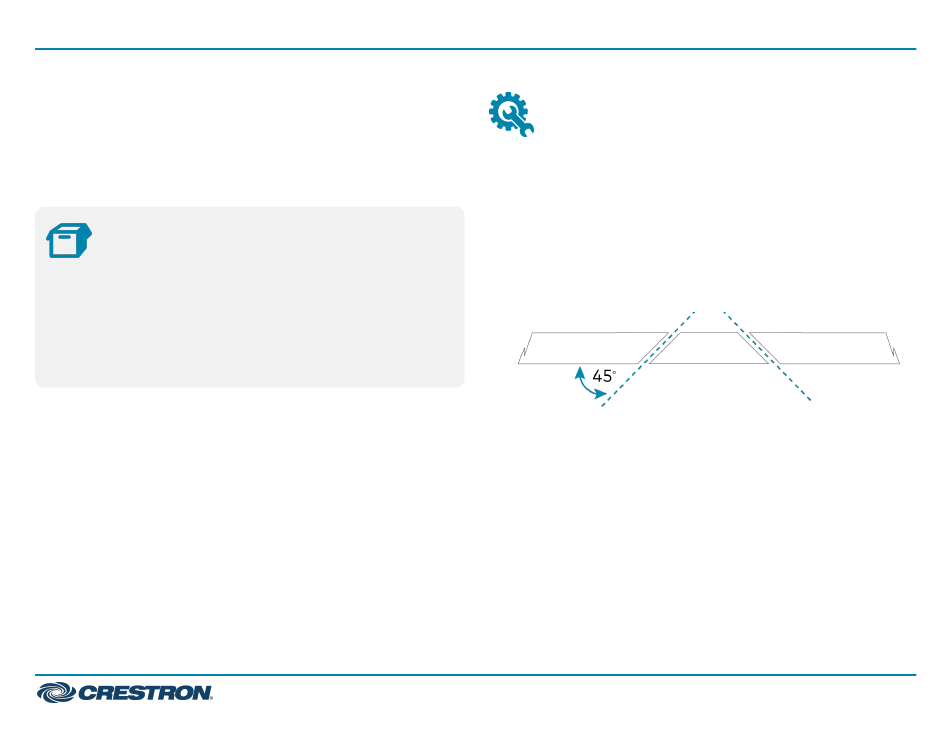

Use a drywall saw to cut a small hole at a 45° angle. An angled cut
l
simplifies repair since the removed piece can be reinserted to help
plug the hole.
Bend a piece of stiff cable or wire into an L shape, with one end long
l
enough to explore an area equal to the size of the speaker with the
toggle clamps extended. Insert the cable into the hole, make sure it
rotates freely in a complete circle, and that there is sufficient depth.
If there are no obstructions, use the supplied template to trace outlines
of the mounting hole on the ceiling. Cut the final mounting hole at a 90°
angle to the ceiling.
Quick Start
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the REFERENCE Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Crestron REFERENCE Series

  • Page 1 Quick Start REFERENCE and ULTIMATE IC Series In-Ceiling Speakers Crestron® Reference and Ultimate in-ceiling speakers made by Origin Acoustics deliver the pinnacle of performance for demanding residential Installation installations. Select materials, top shelf components and a high-end appearance underscore the design behind each model. The result is a...
  • Page 2 Quick Start REFERENCE and ULTIMATE IC Series In-Ceiling Speakers 2. Push the metal release tabs on the inside of the rails and pull the clips to the top of the rails. Paint the Speaker Grille Speaker grille painting should be done prior to mounting. 1.
  • Page 3: Connect The Speaker Cable

    Quick Start REFERENCE and ULTIMATE IC Series In-Ceiling Speakers 3. Insert the bayonet ring into the hole in the ceiling by bending the rails Install the Speaker Cable inward. Run the speaker cable (not included) from the audio source to the NOTE: Bend the bayonet ring rails gently while inserting the ring speaker location, observing all appropriate local codes.
  • Page 4 Quick Start REFERENCE and ULTIMATE IC Series In-Ceiling Speakers Mount/Remove the Speaker 1. Fit the speaker into the bayonet ring. Then twist the speaker about 15 degrees clockwise into place. When the speaker is properly seated, the indicators on the ring and the speaker line up. NOTE: The lock tab will not lock unless the speaker and bayonet ring indicators fully align.
  • Page 5 Quick Start REFERENCE and ULTIMATE IC Series In-Ceiling Speakers ULTIMATE IC8-DT-AW-W-T-EACH Visit the Product Page Scan the QR code to visit the product page. https://www.crestron.com/model/6512626 REFERENCE IC6-W-T-EACH ULTIMATE ICS8-AW-W-T-EACH https://www.crestron.com/model/6511845 https://www.crestron.com/model/6511860 REFERENCE IC8-W-T-EACH https://www.crestron.com/model/6511856 ULTIMATE IC6-AW-W-T-EACH https://www.crestron.com/model/6511844 ULTIMATE IC8-AW-W-T-EACH https://www.crestron.com/model/6512687...
  • Page 6 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
