Crestron ULTIMATE IC6-AW-W-T-EACH Quick Start

ULTIMATE IC6-AW-W-T-EACH

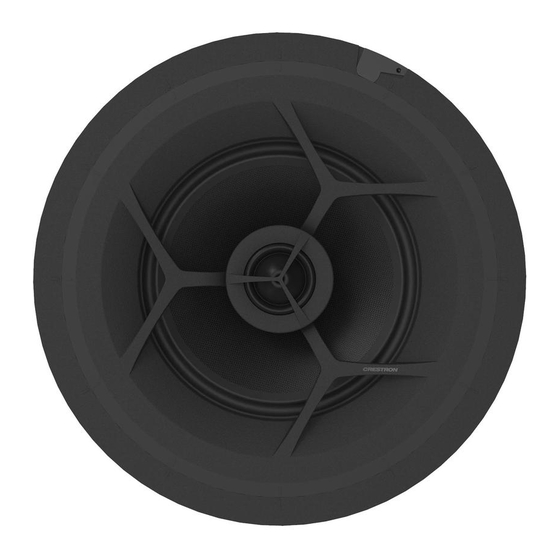

Ultimate 6.5 in. 2-Way All Weather In-Ceiling Speaker, White Textured, Single
The Crestron® ULTIMATE IC6-AW-W-T-EACH
Acoustics delivers the pinnacle of performance for demanding
residential installations. Select materials, top shelf components and a
high-end appearance underscore the design behind each model. The
result is a complete line of in-ceiling speakers suitable for installation in
luxury residential applications, restaurants, retail spaces, universities,
and office buildings.
In the Box
1 ULTIMATE IC6-AW-W-T-EACH
Additional Items
1 Bayonet Ring
1 Cutout Template
1 Grille
speaker made by Origin
Prepare the Mounting Hole
Before finalizing the speaker location, check to make sure there are no
fixtures, pipes, air ducts, joists, or other possible obstructions. If
applicable, use a stud finder to locate joists.
To identify obstructions, do the following:
If there are no obstructions, use the supplied template to trace outlines
of the mounting hole on the ceiling. Cut the final mounting hole at a 90°
angle to the ceiling.
Installation
Use a drywall saw to cut a small hole at a 45° angle. An angled cut
l
simplifies repair since the removed piece can be reinserted to help
plug the hole.
Bend a piece of stiff cable or wire into an L shape, with one end long
l
enough to explore an area equal to the size of the speaker with the
toggle clamps extended. Insert the cable into the hole, make sure it
rotates freely in a complete circle, and that there is sufficient depth.
Quick Start
1
