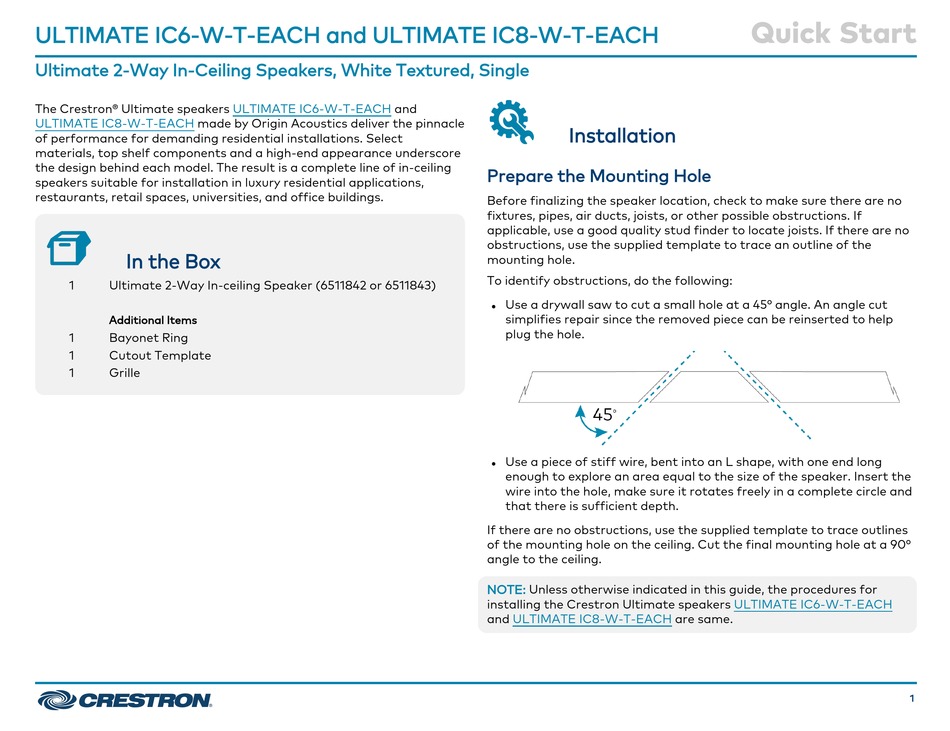

Crestron ULTIMATE IC6-W-T-EACH Quick Start Manual

ULTIMATE IC6-W-T-EACH and ULTIMATE IC8-W-T-EACH

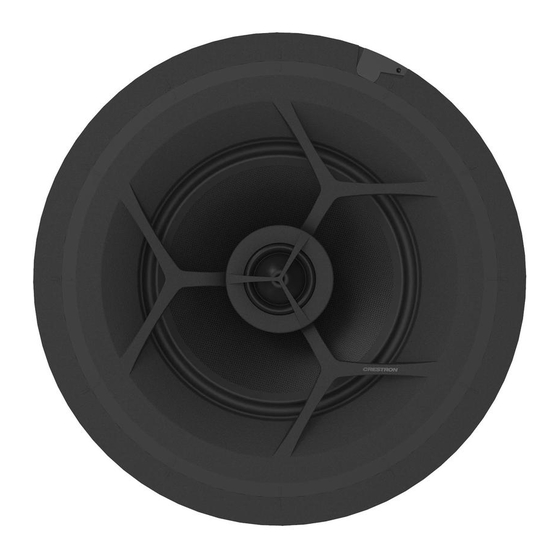

Ultimate 2-Way In-Ceiling Speakers, White Textured, Single
The Crestron® Ultimate speakers
ULTIMATE IC8-W-T-EACH made by Origin Acoustics deliver the pinnacle
of performance for demanding residential installations. Select
materials, top shelf components and a high-end appearance underscore
the design behind each model. The result is a complete line of in-ceiling
speakers suitable for installation in luxury residential applications,
restaurants, retail spaces, universities, and office buildings.
In the Box
1 Ultimate 2-Way In-ceiling Speaker (6511842 or 6511843)
Additional Items
1 Bayonet Ring
1 Cutout Template
1 Grille
ULTIMATE IC6-W-T-EACH and
Installation
Prepare the Mounting Hole
Before finalizing the speaker location, check to make sure there are no
fixtures, pipes, air ducts, joists, or other possible obstructions. If
applicable, use a good quality stud finder to locate joists. If there are no
obstructions, use the supplied template to trace an outline of the
mounting hole.
To identify obstructions, do the following:
Use a drywall saw to cut a small hole at a 45° angle. An angle cut
l
simplifies repair since the removed piece can be reinserted to help
plug the hole.
Use a piece of stiff wire, bent into an L shape, with one end long
l
enough to explore an area equal to the size of the speaker. Insert the
wire into the hole, make sure it rotates freely in a complete circle and
that there is sufficient depth.
If there are no obstructions, use the supplied template to trace outlines
of the mounting hole on the ceiling. Cut the final mounting hole at a 90°
angle to the ceiling.
NOTE: Unless otherwise indicated in this guide, the procedures for
installing the Crestron Ultimate speakers
and ULTIMATE IC8-W-T-EACH
Quick Start
ULTIMATE IC6-W-T-EACH
are same.
1
