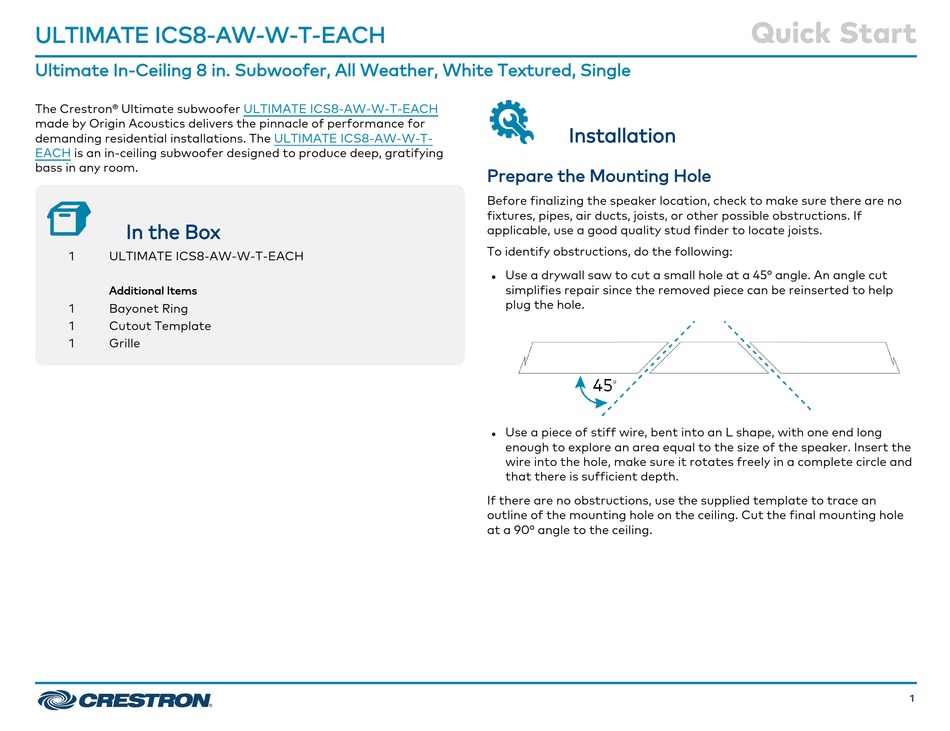

Crestron ULTIMATE ICS8-AW-W-T-EACH Quick Start Manual

ULTIMATE ICS8-AW-W-T-EACH
Ultimate In-Ceiling 8 in. Subwoofer, All Weather, White Textured, Single
The Crestron® Ultimate subwoofer
made by Origin Acoustics delivers the pinnacle of performance for
demanding residential installations. The
EACH is an in-ceiling subwoofer designed to produce deep, gratifying
bass in any room.
In the Box
1 ULTIMATE ICS8-AW-W-T-EACH
Additional Items
1 Bayonet Ring
1 Cutout Template
1 Grille
ULTIMATE ICS8-AW-W-T-EACH
ULTIMATE ICS8-AW-W-T-
Installation
Prepare the Mounting Hole
Before finalizing the speaker location, check to make sure there are no
fixtures, pipes, air ducts, joists, or other possible obstructions. If
applicable, use a good quality stud finder to locate joists.
To identify obstructions, do the following:
Use a drywall saw to cut a small hole at a 45° angle. An angle cut
l
simplifies repair since the removed piece can be reinserted to help
plug the hole.
Use a piece of stiff wire, bent into an L shape, with one end long
l
enough to explore an area equal to the size of the speaker. Insert the
wire into the hole, make sure it rotates freely in a complete circle and
that there is sufficient depth.
If there are no obstructions, use the supplied template to trace an
outline of the mounting hole on the ceiling. Cut the final mounting hole
at a 90° angle to the ceiling.
Quick Start
1
