REFERENCE and ULTIMATE IC Series
In-Ceiling Speakers

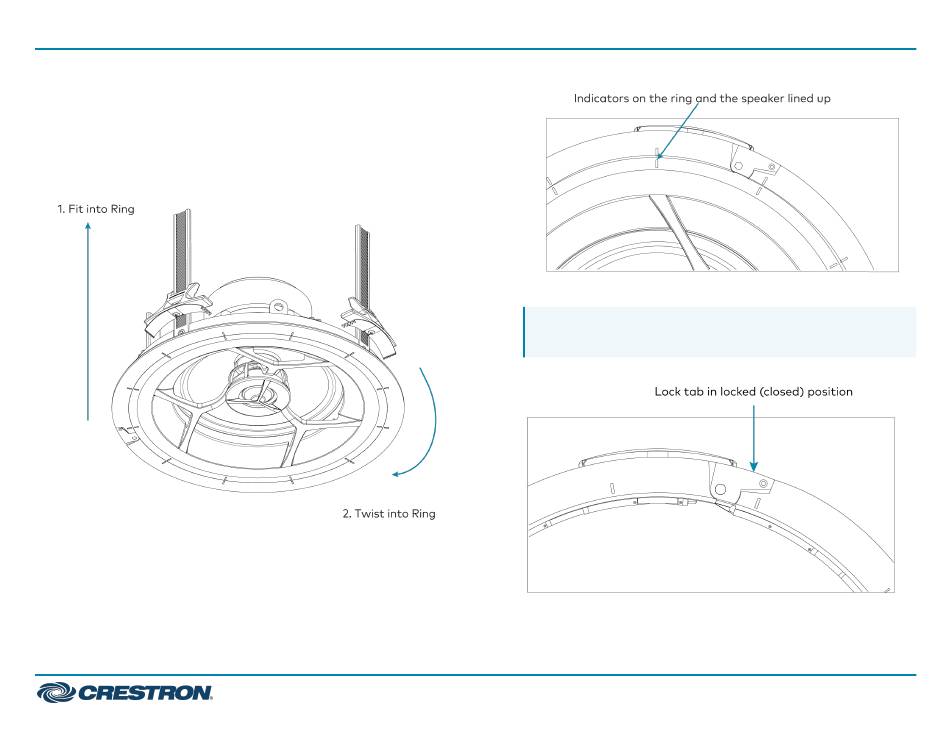

Mount/Remove the Speaker
1. Fit the speaker into the bayonet ring. Then twist the speaker about 15
degrees clockwise into place. When the speaker is properly seated,
the indicators on the ring and the speaker line up.
NOTE: The lock tab will not lock unless the speaker and
bayonet ring indicators fully align.
2. Push the lock tab in to lock the speaker in place.
3. To uninstall the speaker, pull the lock tab out to its unlocked (open)
position and twist the speaker counterclockwise.
Quick Start
4
